SV11L-UHMEEK (1983)

Toyota Camry

Production Jan 1983 - Jul 1986
Engine 2SELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210-8508)1SL,2SE# ; (8508- )1SL,2SE#..EUG,SDZ

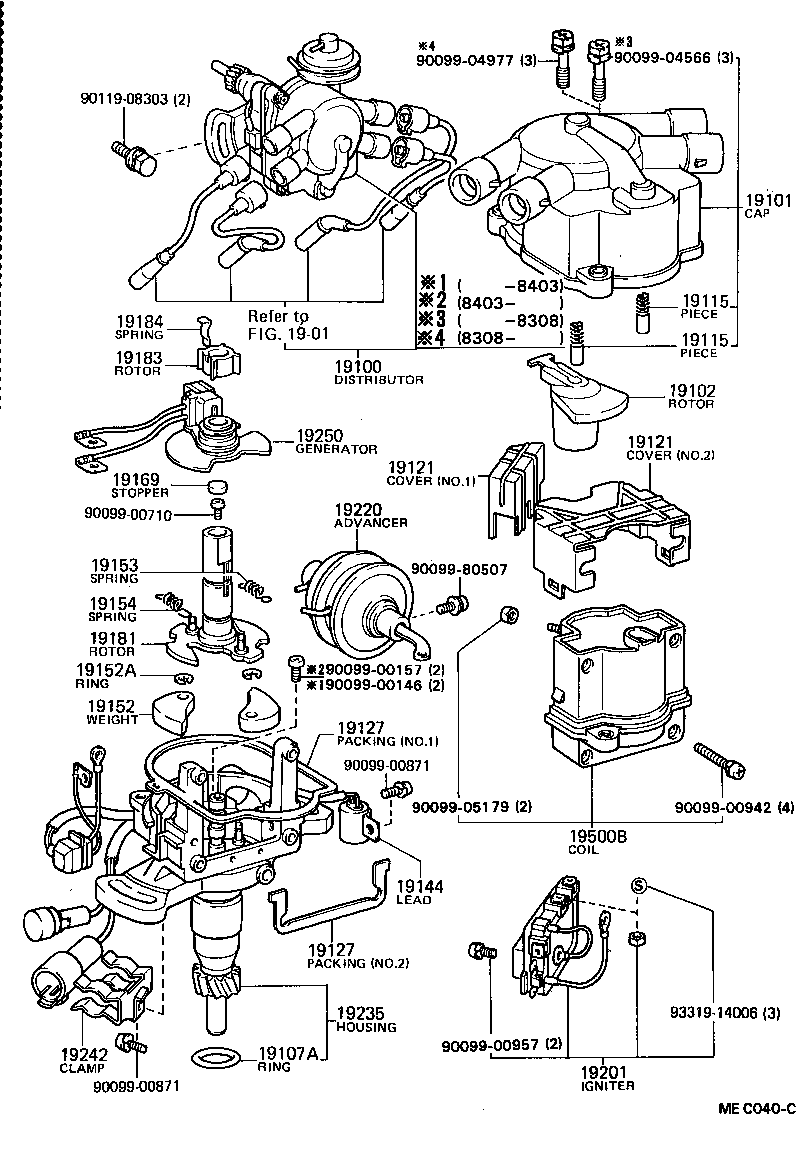

Click highlighted areas on diagram

diagram 1901 19100 19101 19102 19107A 19115 19115 19121 19121 19127 19127 19144 19152 19152A 19153 19154 19169 19181 19183 19184 19201 19220 19235 19242 19250 19500B 9009900146 9009900157 9009900710 9009900871 9009900871 9009900942 9009900957 9009904566 9009904977 9009905179 9009980507 9011908303 9331914006
Part # Description Qty Price
Common parts
90099-00146
90099-00157
90099-00710
90099-00871
90099-00942
90099-00957
90099-04566
90099-04977
90099-05179
90099-80507
90119-08303
93319-14006
Linked diagrams
1901

(8301-8508)2SELC ; (8508- )2SELC..CND

Click highlighted areas on diagram

diagram 1901 19100 19101 19102 19107A 19115 19115 19121 19121 19127 19127 19144 19152 19152A 19153 19154 19169 19181 19183 19184 19201 19220 19235 19242 19250 19500B 9009900157 9009900710 9009900871 9009900871 9009900942 9009900957 9009904566 9009904977 9009905179 9009980507 9011908303 9331914006
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19030-74020

2SELC..SV11..CND

 1
19030-74020

2SELC..SV11

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-63010

2SELC..SV11

 1
19101-63011

2SELC..SV11

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-63010

2SELC..SV11

 1
19102-63010

2SELC..SV11..CND

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

2SELC..SV11

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

2SELC..SV11

 2
19115-71010

2SELC..SV11

 2
19115-63010

2SELC..SV11

 2
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

2SELC..SV11

 2
19115-71010

2SELC..SV11

 2
19115-63010

2SELC..SV11

 2
19121 - COVER, DUST PROOF
19121-63010

2SELC..SV11..CND

NO.1

 1
19121-63040

2SELC..SV11

NO.2

 1
19121-63010

2SELC..SV11

NO.1

 1
19121 - COVER, DUST PROOF
19121-63010

2SELC..SV11..CND

NO.1

 1
19121-63040

2SELC..SV11

NO.2

 1
19121-63010

2SELC..SV11

NO.1

 1
19127 - PACKING, DUST PROOF
19127-63010

2SELC..SV11

NO.1

 1
19127-63020

2SELC..SV11

NO.2

 1
19127 - PACKING, DUST PROOF
19127-63010

2SELC..SV11

NO.1

 1
19127-63020

2SELC..SV11

NO.2

 1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-63052

2SELC..SV11

 1
19144-63050

2SELC..SV11

 1
19144-63052

2SELC..SV11..CND

 1
19152 - WEIGHT, GOVERNOR
19152-44170

2SELC..SV11

 2
19152-63010

2SELC..SV11..CND

 2
19152-63010

2SELC..SV11

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07122

2SELC..SV11..CND

 2
90099-07109

2SELC..SV11

 2
90099-07122

2SELC..SV11

 2
19153 - SPRING, GOVERNOR, A
19153-74020

2SELC..SV11

 1
19153-74020

2SELC..SV11..CND

 1
19153-26232

2SELC..SV11

 1
19154 - SPRING, GOVERNOR, B
19153-26232

2SELC..SV11

 1
19153-74020

2SELC..SV11..CND

 1
19153-74020

2SELC..SV11

 1
19169 - STOPPER, CAM GREASE
19169-32010

2SELC..SV11..CND

 1
19169-32010

2SELC..SV11

 1
19181 - ROTOR, DISTRIBUTOR, SIGNAL
19181-74020

2SELC..SV11

 1
19181-74020

2SELC..SV11..CND

 1
19183 - ROTOR, SIGNAL
19183-63010

2SELC..SV11

 1
19183-63010

2SELC..SV11..CND

 1
19184 - SPRING, ROTOR SET
19184-63010

2SELC..SV11..CND

 1
19184-63010

2SELC..SV11

 1
19201 - IGNITER
89620-14210

2SELC..SV11..CND

 1
89620-14210

2SELC..SV11

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-74020

2SELC..SV11..CND

 1
19220-74020

2SELC..SV11

 1
19235 - HOUSING, DISTRIBUTOR
19235-63010

2SELC..SV11

 1
19235-63013

2SELC..SV11

 1
19235-63011

2SELC..SV11

 1
19235-63013

2SELC..SV11..CND

 1
19242 - CLAMP, CORD
19242-63020

2SELC..SV11..CND

 1
19242-63020

2SELC..SV11

 1
19250 - GENERATOR ASSY, SIGNAL
19251-63010

2SELC..SV11

 1
19251-63011

2SELC..SV11

 1
19251-63011

2SELC..SV11..CND

 1
19500B - COIL ASSY, IGNITION
90919-02135

2SELC..SV11

 1
Common parts
90099-00157
90099-00710
90099-00871
90099-00942
90099-00957
90099-04566
90099-04977
90099-05179
90099-80507
90119-08303
93319-14006
Linked diagrams
1901
