SV11L-UHMEEK (1983)
Toyota Camry
Production
Jan 1983
-
Jul 1986
Engine
2SELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8303-8508)2SELC ; (8508- )2SELC..SDZ

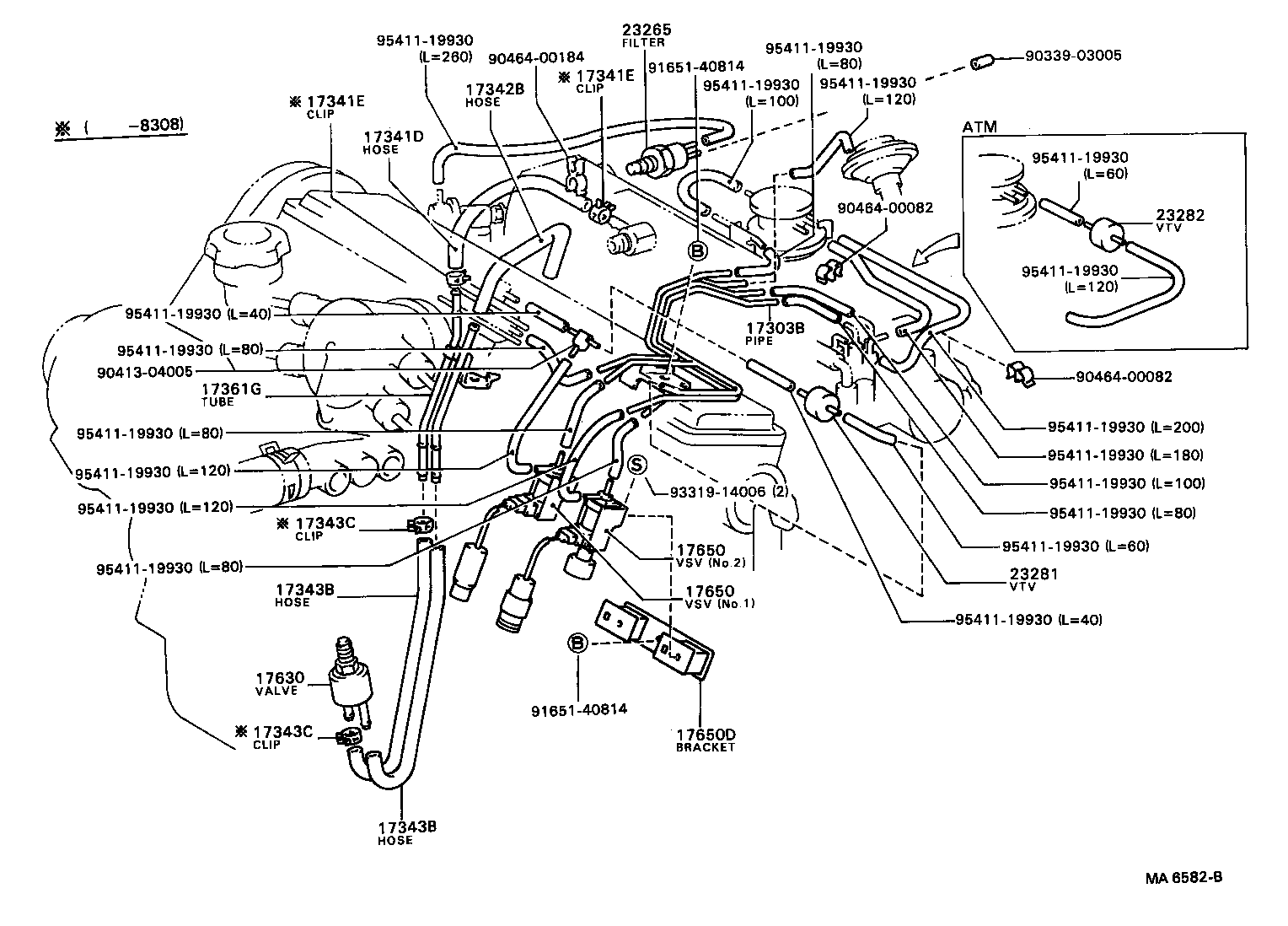

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90339-03005 | ||||
| 90413-04005 | ||||
| 90464-00082 | ||||
| 90464-00184 | ||||
| 91651-40814 | ||||
| 93319-14006 | ||||
| 95411-19930 | ||||
(8310- )2SEL

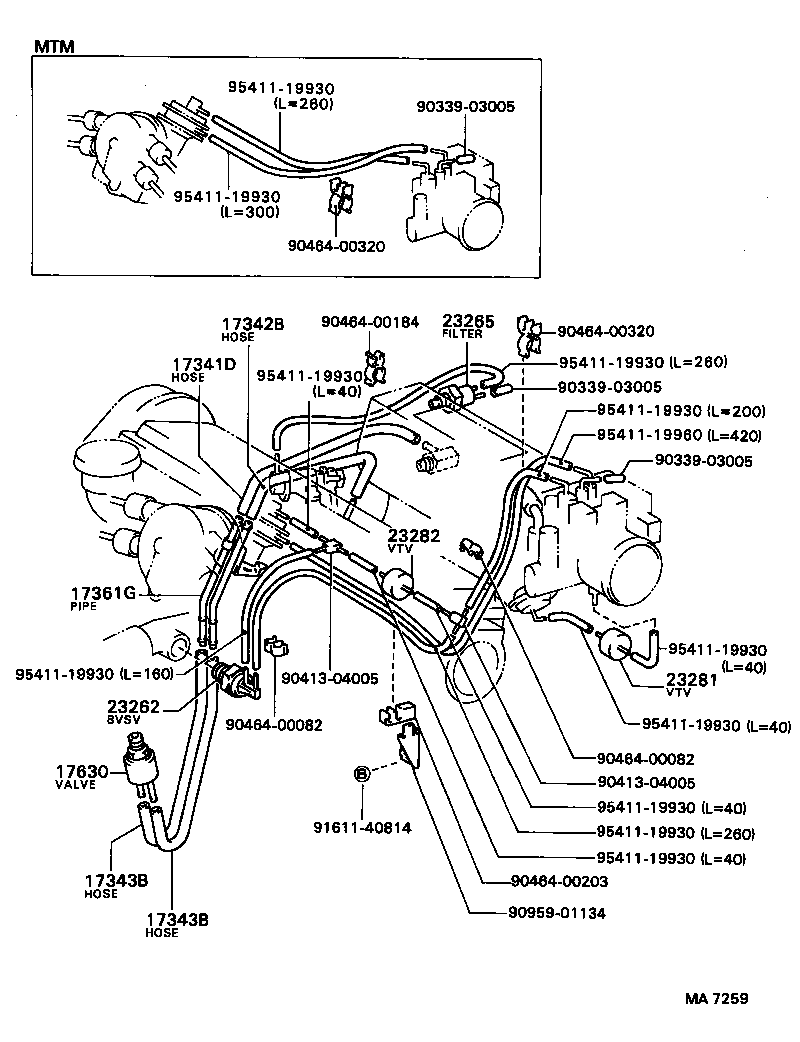

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90339-03005 | ||||
| 90413-04005 | ||||
| 90464-00082 | ||||
| 90464-00184 | ||||
| 90464-00203 | ||||
| 90464-00320 | ||||
| 90959-01134 | ||||
| 91611-40814 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
(8301-8508)2SELC ; (8508- )2SELC..CND
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-74010 |
2SELC..SV11 |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-63050 |
2SELC..SV11 W/PS |
1 | ||
| 90445-11040 |
2SELC..SV11 W/PS |
1 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
2SELC..SV11 W/PS |
2 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
2SELC..SV11 W/PS |
2 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-74010 |
2SELC..SV11 W/PS |
1 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 17343-74010 |
2SELC..SV11 W/PS |
2 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 17343-74010 |
2SELC..SV11 W/PS |
2 | ||
| 17343C - CLIP, NO.3(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
2SELC..SV11 W/PS |
2 | ||
| 17343C - CLIP, NO.3(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
2SELC..SV11 W/PS |
2 | ||
| 17361G - TUBE, AIR(FOR IDLE-UP) | ||||
| 17361-74010 |
2SELC..SV11 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-70020 |
2SELC..SV11 W/PS |
1 | ||
| 17630-28010 |
2SELC..SV11 W/PS |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05068 |
2SELC..SV11 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 25820-13020 |
2SELC..SV11 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
2SELC..SV11 |
1 | ||
| 90917-11022 |
2SELC..SV11 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
2SELC..SV11 |
1 | ||
| 90917-11022 |
2SELC..SV11 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04026 |
2SELC..SV11..CND |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00184 | ||||
| 91651-40814 | ||||
| 95411-19930 | ||||
| Linked diagrams | ||||
| 7701 | ||||
(8301- )2SELC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 95411-10030 | ||||
| 95411-10130 | ||||
| 95411-10160 | ||||
| 95411-19995 | ||||
