SV11L-UHMEEK (1983)

Toyota Camry

Production Jan 1983 - Jul 1986
Engine 2SELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210-8406)1SL,2SE# ; (8406- )2SEL

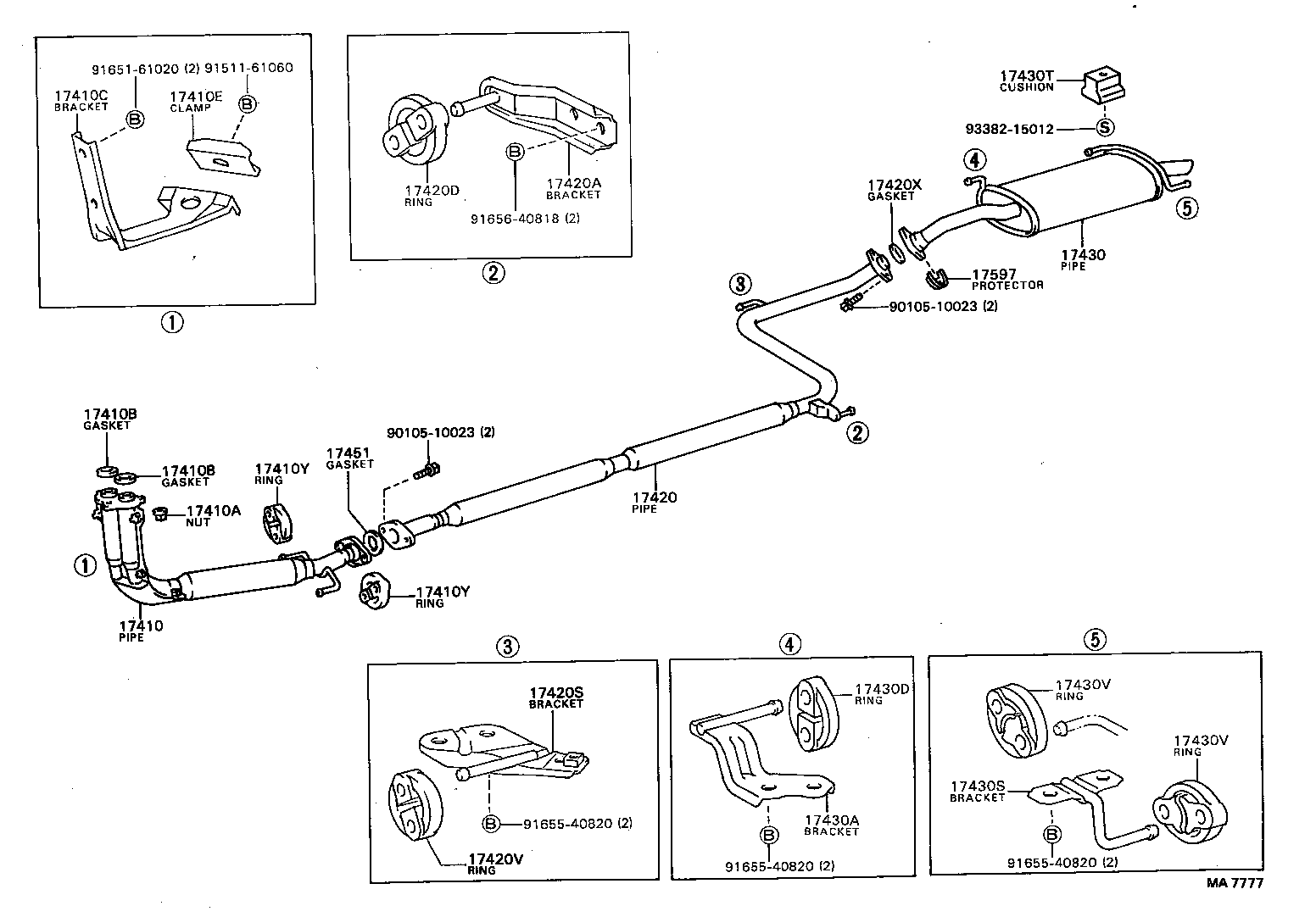

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410B 17410C 17410E 17410Y 17410Y 17420 17420A 17420D 17420S 17420S 17420V 17420V 17420X 17430 17430A 17430D 17430S 17430T 17430V 17430V 17451 17597 9010510023 9010510023 9151161060 9151560825 9165161020 9165540820 9165540820 9165540820 9165640818 9165640820 9338215012
Part # Description Qty Price
Common parts
90105-10023
91511-61060
91515-60825
91651-61020
91655-40820
91656-40818
91656-40820
93382-15012

(8406-8409)1SL,2SELC

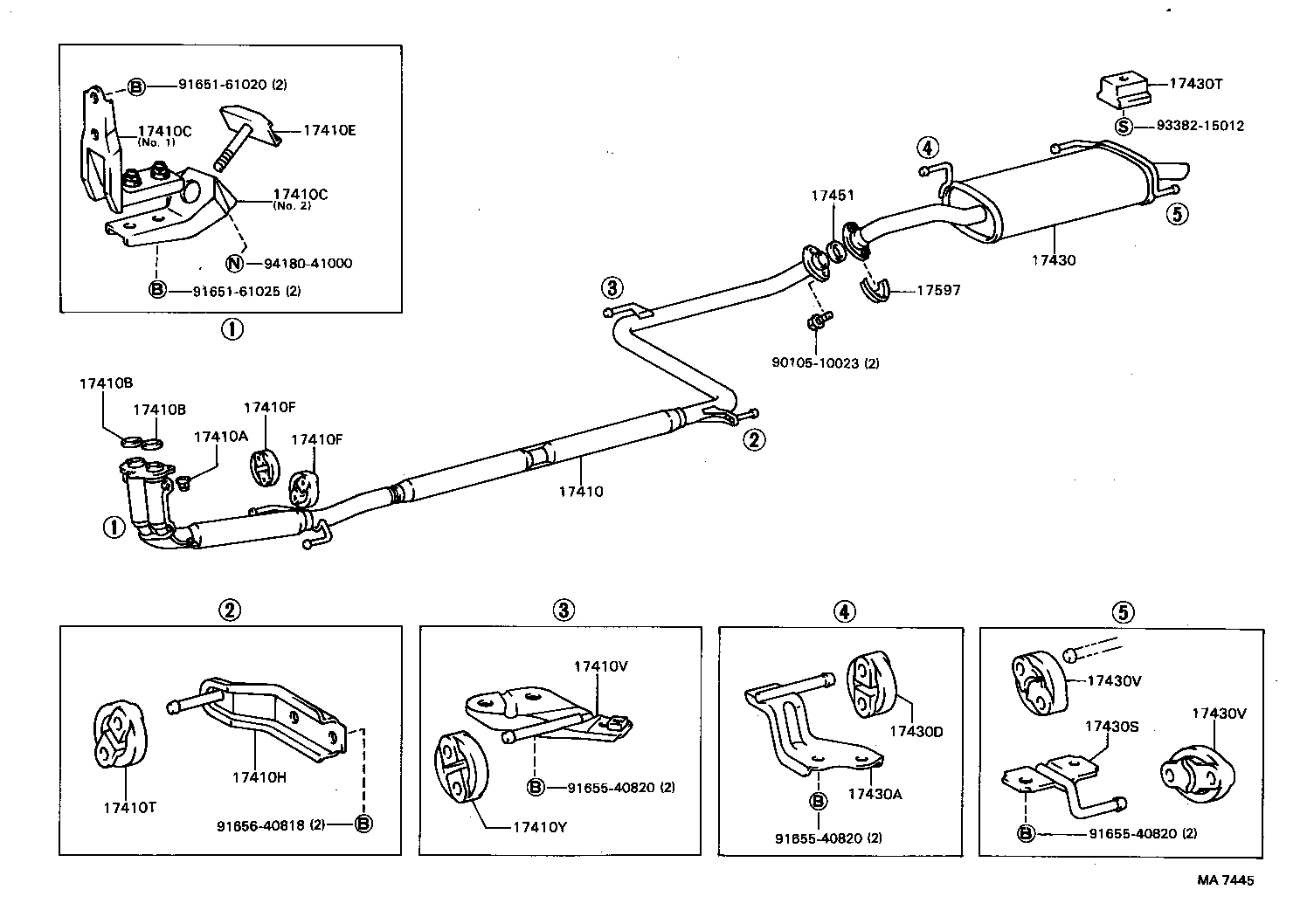

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410B 17410C 17410C 17410E 17410F 17410F 17410H 17410T 17410V 17410Y 17430 17430A 17430D 17430S 17430T 17430V 17430V 17451 17597 9010510023 9165161020 9165161025 9165540820 9165540820 9165540820 9165640818 9338215012 9418041000
Part # Description Qty Price
Common parts
90105-10023
91651-61020
91651-61025
91655-40820
91656-40818
93382-15012
94180-41000

(8409-8508)1SL,2SELC ; (8508- )1SL,2SELC..EUG,SDZ

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410B 17410C 17410E 17410Y 17410Y 17420 17420A 17420D 17420S 17420V 17420X 17430 17430A 17430D 17430S 17430T 17430V 17430V 17451 17597 9010510023 9010510023 9151161060 9165161020 9165540820 9165540820 9165540820 9165640818 9338215012
Part # Description Qty Price
Common parts
90105-10023
91511-61060
91651-61020
91655-40820
91656-40818
93382-15012

(8301-8308) ; (8308- )2SELC..USA

Click highlighted areas on diagram

diagram 17400 17410 17410A 17410B 17410B 17410C 17410E 17410V 17410Y 17410Y 17420 17420 17420A 17420D 17420S 17420V 17420X 17430 17430A 17430D 17430S 17430T 17430V 17430V 17448 17451 17451 17597 9010510023 9010510023 9010510023 9010510023 9151161060 9151560825 9165161020 9165540820 9165540820 9165540820 9165640818 9338215012 9418041000
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-74011

2SELC..SV11

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-74120

2SELC..SV11..CND

 1
17410-74030

2SELC..SV11..CND

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10028

2SELC..SV11

 3
90179-10070

2SELC..SV11

 3
17410B - GASKET, EXHAUST PIPE
90917-06001

2SELC..SV11

 2
17410B - GASKET, EXHAUST PIPE
90917-06001

2SELC..SV11

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-63020

2SELC..SV11

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04054

2SELC..SV11

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17503-63010

2SELC..SV11

 1
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-63020

1CTLC,2CTLC,2SELC..CV1#,SV11

 2
17565-63020

2SELC..SV11..5F

 2
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-63020

1CTLC,2CTLC,2SELC..CV1#,SV11

 2
17565-63020

2SELC..SV11..5F

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17403-63010

2SELC..SV11..CND

 1
17403-63010

2SELC..SV11

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-63010

2SELC..SV11..CND

 1
17403-63010

2SELC..SV11

 1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17506-63010

1CTLC,2CTLC,2SELC..CV1#,SV11

 1
17420D - BOLT OR RING, EXHAUST PIPE CENTER, FRONT
17565-63020

1CTLC,2SELC..CV10,SV11..5F

 1
17420S - BRACKET, EXHAUST PIPE CENTER, REAR
17507-63020

2SELC..SV11

 1
17420V - BOLT OR RING, EXHAUST PIPE CENTER, REAR
17565-63020

1CTLC,2SELC..CV10,SV11..5F

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

1CTLC,2CTLC,2SELC..CV1#,SV11

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-74010

2SELC..SV11

 1
17430-74011

2SELC..SV11..CND

 1
17430-74011

2SELC..SV11

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17508-63010

1CTLC,2CTLC,2SELC..CV1#,SV11

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-63020

1CTLC,2CTLC,2SELC..CV1#,SV11

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17509-63040

1CTLC,2CTLC,2SELC..CV1#,SV11

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17591-36010

1CTLC,2CTLC,2SELC..CV1#,SV11

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63030

1CTLC,2CTLC,2SELC..CV1#,SV11

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63030

1CTLC,2CTLC,2SELC..CV1#,SV11

 2
17448 - BAFFLE, TAIL PIPE
17448-74010

2SELC..SV11..LE..CND

 1
17448-74010

2SELC..SV11..LE

 1
17451 - GASKET, EXHAUST PIPE
90917-06012

2SELC..SV11

RR

 1
90917-06023

2SELC..SV11

FR

 1
90917-06012

2SELC..SV11..CND;1CTLC,2CTLC..CV1#

 1
17451 - GASKET, EXHAUST PIPE
90917-06012

2SELC..SV11

RR

 1
90917-06023

2SELC..SV11

FR

 1
90917-06012

2SELC..SV11..CND;1CTLC,2CTLC..CV1#

 1
Common parts
90105-10023
91511-61060
91515-60825
91651-61020
91655-40820
91656-40818
93382-15012
94180-41000

(8308- )2SELC..CND

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410B 17410C 17410E 17410Y 17410Y 17420 17420A 17420D 17420S 17420V 17420X 17430 17430A 17430D 17430S 17430T 17430V 17430V 17448 17451 9010510023 9151161060 9151560825 9165161020 9165540820 9165540820 9165540820 9165640818 9338215012 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-74120

2SELC..SV11..CND

 1
17410-74030

2SELC..SV11..CND

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10028

2SELC..SV11

 3
90179-10070

2SELC..SV11

 3
17410B - GASKET, EXHAUST PIPE
90917-06001

2SELC..SV11

 2
17410B - GASKET, EXHAUST PIPE
90917-06001

2SELC..SV11

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-63020

2SELC..SV11

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04054

2SELC..SV11

 1
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-63020

1CTLC,2CTLC,2SELC..CV1#,SV11

 2
17565-63020

2SELC..SV11..5F

 2
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-63020

1CTLC,2CTLC,2SELC..CV1#,SV11

 2
17565-63020

2SELC..SV11..5F

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17403-63010

2SELC..SV11..CND

 1
17403-63010

2SELC..SV11

 1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17506-63010

1CTLC,2CTLC,2SELC..CV1#,SV11

 1
17420D - BOLT OR RING, EXHAUST PIPE CENTER, FRONT
17565-63020

1CTLC,2SELC..CV10,SV11..5F

 1
17420S - BRACKET, EXHAUST PIPE CENTER, REAR
17507-63020

2SELC..SV11

 1
17420V - BOLT OR RING, EXHAUST PIPE CENTER, REAR
17565-63020

1CTLC,2SELC..CV10,SV11..5F

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

1CTLC,2CTLC,2SELC..CV1#,SV11

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-74010

2SELC..SV11

 1
17430-74011

2SELC..SV11..CND

 1
17430-74011

2SELC..SV11

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17508-63010

1CTLC,2CTLC,2SELC..CV1#,SV11

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-63020

1CTLC,2CTLC,2SELC..CV1#,SV11

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17509-63040

1CTLC,2CTLC,2SELC..CV1#,SV11

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17591-36010

1CTLC,2CTLC,2SELC..CV1#,SV11

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63030

1CTLC,2CTLC,2SELC..CV1#,SV11

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63030

1CTLC,2CTLC,2SELC..CV1#,SV11

 2
17448 - BAFFLE, TAIL PIPE
17448-74010

2SELC..SV11..LE..CND

 1
17448-74010

2SELC..SV11..LE

 1
17451 - GASKET, EXHAUST PIPE
90917-06012

2SELC..SV11

RR

 1
90917-06023

2SELC..SV11

FR

 1
90917-06012

2SELC..SV11..CND;1CTLC,2CTLC..CV1#

 1
Common parts
90105-10023
91511-61060
91515-60825
91651-61020
91655-40820
91656-40818
93382-15012
94180-41000
