SV11L-UHMEEK (1983)

Toyota Camry

Production Jan 1983 - Jul 1986
Engine 2SELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8303- )2SE#

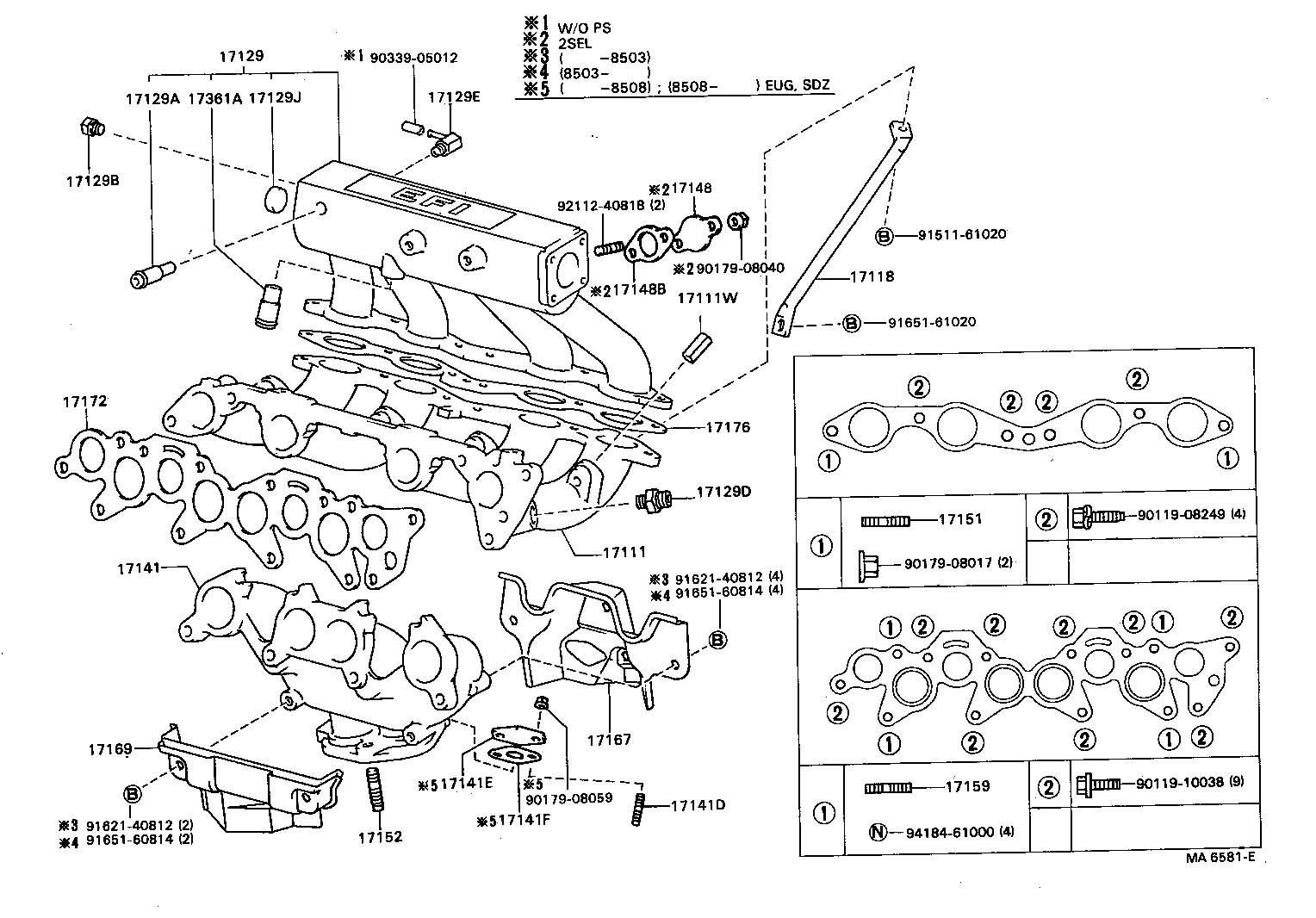

Click highlighted areas on diagram

diagram 17111 17111W 17118 17129 17129A 17129B 17129D 17129E 17129J 17141 17141D 17141E 17141F 17148 17148B 17151 17152 17159 17167 17169 17172 17176 17361A 9011908249 9011910038 9017908017 9017908040 9017908059 9033905012 9151161020 9162140812 9162140812 9165160814 9165160814 9165161020 9211240818 9418461000
Part # Description Qty Price
Common parts
90119-08249
90119-10038
90179-08017
90179-08040
90179-08059
90339-05012
91511-61020
91621-40812
91651-60814
91651-61020
92112-40818
94184-61000

(8301- )2SELC

Click highlighted areas on diagram

diagram 17111 17111W 17118 17129 17129A 17129B 17129D 17129E 17129J 17141 17141D 17141E 17141F 17151 17152 17159 17167 17169 17172 17176 17361A 9011908249 9011910038 9017908017 9017908059 9033905012 9151161020 9162140812 9162140812 9165160814 9165160814 9165661020 9211240818 9418461000
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-74011

2SELC..SV11

 1
17111W - PIN, SLOTTED SPRING(FOR INTAKE MANIFOLD)
90254-11001

2SELC..SV11

 4
17118 - STAY, MANIFOLD
17118-63030

2SELC..SV11

 1
17118-74010

2SELC..SV11

 1
17129 - TANK, INTAKE AIR SURGE
17109-74011

2SELC..SV11

 1
17109-74012

2SELC..SV11

 1
17129A - UNION, NO.1
90406-09001

2SELC..SV11

 1
17129B - PLUG
90345-51025

2SELC..SV11

 1
90345-51025

2SELC..SV11

 2
17129D - UNION, NO.2
90404-20001

2SELC..SV11

 1
90404-20014

2SELC..SV11

 1
17129E - UNION, NO.3
90404-51042

2SELC..SV11

 1
17129J - PLUG, TIGHT(FOR INTAKE AIR SURGE TANK)
96411-43000

2SELC..SV11

OD=30,OD=30

 1
17141 - MANIFOLD, EXHAUST
17141-74010

2SELC..SV11

 1
17141-74011

2SELC..SV11

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08128

2SELC..SV11

 2
90116-08045

2SELC..SV11

 2
17141E - PLATE, EXHAUST MANIFOLD
17148-74010

2SELC..SV11..CND

 1
17141F - GASKET(FOR EXHAUST MANIFOLD PLATE)
89466-32010

2SELC..SV11..CND

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
92122-60825

2SELC..SV11

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

2SELC..SV11

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10123

2SELC..SV11

 4
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-74010

2SELC..SV11

 1
17169 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17904-63020

2SELC..SV11

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-63010

2SELC..SV11

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-74011

2SELC..SV11

 1
17361A - TUBE, AIR(FOR EFI)
90405-14001

2SELC..SV11

 1
Common parts
90119-08249
90119-10038
90179-08017
90179-08059
90339-05012
91511-61020
91621-40812
91651-60814
91656-61020
92112-40818
94184-61000
