SV11L-UEPEEK (1983)

Toyota Camry

Production Jan 1983 - Jul 1986
Engine 2SELC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8301- )4FC

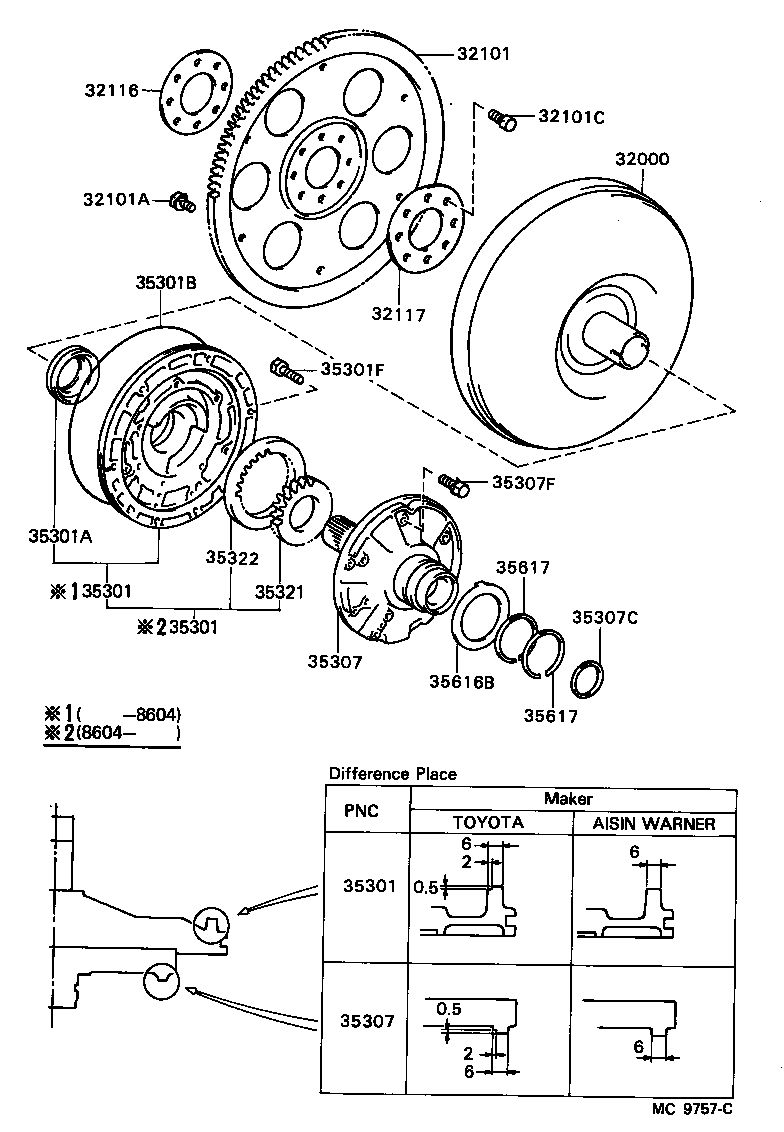

Click highlighted areas on diagram

diagram 32000 32101 32101A 32101C 32116 32117 35301 35301 35301 35301A 35301B 35301F 35307 35307 35307C 35307F 35321 35322 35616B 35617 35617
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-32012

CV1#,SV11..4FC

 1
32000-32011

SV11..4FC

 1
32000-32010

SV11..4FC

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-32010

SV11..4FC

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90109-08107

CV10,SV11..4FC

*8-1.25PX12-8.4,OLIVE GREEN

 1
90109-08113

CV1#,SV11..4FC

*8-1.25PX12-8.4,OLIVE GREEN

 1
90119-08269

CV10,SV11..4FC

*8-1.25PX12-8,BLACK

 6
90119-08498

CV1#,SV11..4FC

*8-1.25PX12-8,BLACK

 6
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90109-10054

SV11..4FC

*10-1.25PX22-16

 6
32116 - SPACER, DRIVE PLATE, FRONT
32116-14020

SV11..4FC

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-14030

SV11..4FC

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-32031

CV1#,SV11..4FC

AISIN WARNER

 1
35301-32020

SV11..4FC

 1
35035-32010

CV11,SV11..4FC

AISIN WARNER

 1
35301-32030

SV11..4FC

 1
35301-32040

CV1#,SV11..4FC

TOYOTA

 1
35035-32020

CV11,SV11..4FC

TOYOTA

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-32031

CV1#,SV11..4FC

AISIN WARNER

 1
35301-32020

SV11..4FC

 1
35035-32010

CV11,SV11..4FC

AISIN WARNER

 1
35301-32030

SV11..4FC

 1
35301-32040

CV1#,SV11..4FC

TOYOTA

 1
35035-32020

CV11,SV11..4FC

TOYOTA

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-32031

CV1#,SV11..4FC

AISIN WARNER

 1
35301-32020

SV11..4FC

 1
35035-32010

CV11,SV11..4FC

AISIN WARNER

 1
35301-32030

SV11..4FC

 1
35301-32040

CV1#,SV11..4FC

TOYOTA

 1
35035-32020

CV11,SV11..4FC

TOYOTA

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38020

CV1#,SV11..4FC

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99024

CV1#,SV11..4FC

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08050

CV1#,SV11..4FC

*8-1.25PX28-28

 7
35307 - SHAFT SUB-ASSY, STATOR
35370-32021

CV10,SV11..4FC

AISIN WARNER

 1
35370-32010

SV11..4FC

 1
35370-32031

CV1#,SV11..4FC

TOYOTA

 1
35370-32022

CV1#,SV11..4FC

AISIN WARNER

 1
35370-32020

SV11..4FC

 1
35307 - SHAFT SUB-ASSY, STATOR
35370-32021

CV10,SV11..4FC

AISIN WARNER

 1
35370-32010

SV11..4FC

 1
35370-32031

CV1#,SV11..4FC

TOYOTA

 1
35370-32022

CV1#,SV11..4FC

AISIN WARNER

 1
35370-32020

SV11..4FC

 1
35307C - RACE, THRUST BEARING (FOR STATOR SHAFT)
35789-32030

CV1#,SV11..4FC

T=1.4,T=1.4

 1
35789-32020

CV1#,SV11..4FC

T=0.8,T=0.8

 1
35307F - BOLT (FOR STATOR SHAFT)
90119-06180

CV1#,SV11..4FC

 11
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-32020

CV1#,SV11..4FC

T=9.465-9.440

 1
35321-32050

CV11,SV11..4FC

T=9.456-9.474,MARK B OR E

 1
35321-32040

CV11,SV11..4FC

T=9.440-9.456,MARK A OR D

 1
35321-32060

CV11,SV11..4FC

T=9.474-9.490,MARK C OR F

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-32020

CV1#,SV11..4FC

T=9.465-9.440

 1
35322-32060

CV11,SV11..4FC

T=9.474-9.490,MARK C OR F

 1
35322-32040

CV11,SV11..4FC

T=9.440-9.456,MARK A OR D

 1
35322-32050

CV11,SV11..4FC

T=9.456-9.474,MARK B OR E

 1
35616B - WASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)
35616-32010

CV1#,SV11..4FC

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-22011

CV10,SV11..4FC

 2
35617-32010

CV1#,SV11..4FC

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-22011

CV10,SV11..4FC

 2
35617-32010

CV1#,SV11..4FC

 2
