Toyota Camry SV11 STEERING WHEEL

SV11L-UEPEEA (1983)

Toyota Camry

Production Jan 1983 - Jul 1986

Engine 2SELC

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(8210-8406)

Click highlighted areas on diagram

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-2219016	SV11..USA DEEP BROWN,BROWN,TRIM4#	01/1983 - 05/1983	1
45100-2219003	CV10,SV11..USA DARK GRAY,GRAY,TRIM1#	05/1983 - 09/1983	1
45100-2219004	CV10,SV11..USA BLUE,BLUE,TRIM8#	05/1983 - 09/1983	1
45100-2219006	CV10,SV11..USA DARK BROWN,BROWN,TRIM4#	05/1983 - 09/1983	1
45100-2219104	CV1#,SV11..USA BLUE,BLUE,TRIM8#	09/1983 - 07/1986	1
45100-2219001	SV11..USA BLACK,BLACK,TRIM1#,8#	01/1983 - 05/1983	1
45100-2219115	CV1#,SV11..USA BEIGE,BEIGE,TRIM4#	08/1984 - 07/1986	1
45100-2219106	CV1#,SV11..USA DARK BROWN,BROWN,TRIM4#	09/1983 - 07/1986	1
45100-2219123	CV1#,SV11..USA SHADOW GRAY,SHADOW GRAY,TRIM1#	08/1984 - 07/1986	1
45100-2219103	CV10,SV11..USA DARK GRAY,GRAY,TRIM1#	09/1983 - 05/1984	1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-22070	CV1#,SV11..USA	01/1983 - 07/1986	1
45125 - MARK, STEERING WHEEL PAD
45125-22320	CV1#,SV11..USA	01/1983 - 07/1986	1
45201P - NUT, STEERING WHEEL SET
90179-12086	CV1#,SV11	01/1983 - 07/1986	1
45207 - RING, HORN CONTACT
45176-22050	CV1#,SV11..USA	01/1983 - 07/1986	1
Common parts
93316-14020
93510-13010
93540-44016

(8406- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-2219016	SV11..USA DEEP BROWN,BROWN,TRIM4#	01/1983 - 05/1983	1
45100-2219003	CV10,SV11..USA DARK GRAY,GRAY,TRIM1#	05/1983 - 09/1983	1
45100-2219004	CV10,SV11..USA BLUE,BLUE,TRIM8#	05/1983 - 09/1983	1
45100-2219006	CV10,SV11..USA DARK BROWN,BROWN,TRIM4#	05/1983 - 09/1983	1
45100-2219104	CV1#,SV11..USA BLUE,BLUE,TRIM8#	09/1983 - 07/1986	1
45100-2219001	SV11..USA BLACK,BLACK,TRIM1#,8#	01/1983 - 05/1983	1
45100-2219115	CV1#,SV11..USA BEIGE,BEIGE,TRIM4#	08/1984 - 07/1986	1
45100-2219106	CV1#,SV11..USA DARK BROWN,BROWN,TRIM4#	09/1983 - 07/1986	1
45100-2219123	CV1#,SV11..USA SHADOW GRAY,SHADOW GRAY,TRIM1#	08/1984 - 07/1986	1
45100-2219103	CV10,SV11..USA DARK GRAY,GRAY,TRIM1#	09/1983 - 05/1984	1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-22070	CV1#,SV11..USA	01/1983 - 07/1986	1
45130 - BUTTON ASSY, HORN
45130-2220023	CV1#,SV11..USA SHADOW GRAY,SHADOW GRAY,TRIM1#	08/1984 - 07/1986	1
45130-2220004	CV1#,SV11..USA BLUE,BLUE,TRIM8#	05/1983 - 07/1986	1
45130-2220016	SV11..USA DEEP BROWN,BROWN,TRIM4#	01/1983 - 05/1983	1
45130-2220001	SV11..USA BLACK,BLACK,TRIM1#,8#	01/1983 - 05/1983	1
45130-2220003	CV10,SV11..USA DARK GRAY,GRAY,TRIM1#	05/1983 - 05/1984	1
45130-2220006	CV1#,SV11..USA DARK BROWN,BROWN,TRIM4#	05/1983 - 07/1986	1
45130-2220015	CV1#,SV11..USA BEIGE,BEIGE,TRIM4#	08/1984 - 07/1986	1
45201P - NUT, STEERING WHEEL SET
90179-12086	CV1#,SV11	01/1983 - 07/1986	1
Common parts
90164-40058
93315-14010
93510-15014

(8406- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-2219016	SV11..USA DEEP BROWN,BROWN,TRIM4#	01/1983 - 05/1983	1
45100-2219003	CV10,SV11..USA DARK GRAY,GRAY,TRIM1#	05/1983 - 09/1983	1
45100-2219004	CV10,SV11..USA BLUE,BLUE,TRIM8#	05/1983 - 09/1983	1
45100-2219006	CV10,SV11..USA DARK BROWN,BROWN,TRIM4#	05/1983 - 09/1983	1
45100-2219104	CV1#,SV11..USA BLUE,BLUE,TRIM8#	09/1983 - 07/1986	1
45100-2219001	SV11..USA BLACK,BLACK,TRIM1#,8#	01/1983 - 05/1983	1
45100-2219115	CV1#,SV11..USA BEIGE,BEIGE,TRIM4#	08/1984 - 07/1986	1
45100-2219106	CV1#,SV11..USA DARK BROWN,BROWN,TRIM4#	09/1983 - 07/1986	1
45100-2219123	CV1#,SV11..USA SHADOW GRAY,SHADOW GRAY,TRIM1#	08/1984 - 07/1986	1
45100-2219103	CV10,SV11..USA DARK GRAY,GRAY,TRIM1#	09/1983 - 05/1984	1
45130 - BUTTON ASSY, HORN
45130-2220023	CV1#,SV11..USA SHADOW GRAY,SHADOW GRAY,TRIM1#	08/1984 - 07/1986	1
45130-2220004	CV1#,SV11..USA BLUE,BLUE,TRIM8#	05/1983 - 07/1986	1
45130-2220016	SV11..USA DEEP BROWN,BROWN,TRIM4#	01/1983 - 05/1983	1
45130-2220001	SV11..USA BLACK,BLACK,TRIM1#,8#	01/1983 - 05/1983	1
45130-2220003	CV10,SV11..USA DARK GRAY,GRAY,TRIM1#	05/1983 - 05/1984	1
45130-2220006	CV1#,SV11..USA DARK BROWN,BROWN,TRIM4#	05/1983 - 07/1986	1
45130-2220015	CV1#,SV11..USA BEIGE,BEIGE,TRIM4#	08/1984 - 07/1986	1
45156A - SEAT, HORN CONTACT SPRING SET
45156-16010	CV1#,SV11..USA	01/1983 - 07/1986	4
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-2209016	SV11..USA DEEP BROWN,BROWN,TRIM4#	01/1983 - 05/1983	1
45184-2209023	CV1#,SV11..USA SHADOW GRAY,SHADOW GRAY,TRIM1#	08/1984 - 07/1986	1
45184-2209015	CV1#,SV11..USA BEIGE,BEIGE,TRIM4#	08/1984 - 07/1986	1
45184-2209004	CV1#,SV11..USA BLUE,BLUE,TRIM8#	05/1983 - 07/1986	1
45184-2209006	CV1#,SV11..USA DARK BROWN,BROWN,TRIM4#	05/1983 - 07/1986	1
45184-2209001	SV11..USA BLACK,BLACK,TRIM1#,8#	01/1983 - 05/1983	1
45184-2209003	CV10,SV11..USA DARK GRAY,GRAY,TRIM1#	05/1983 - 05/1984	1
45201P - NUT, STEERING WHEEL SET
90179-12086	CV1#,SV11	01/1983 - 07/1986	1
45207 - RING, HORN CONTACT
45176-22050	CV1#,SV11..USA	01/1983 - 07/1986	1
Common parts
93219-15008
93312-15025
93316-15025
93510-13010
93510-14014

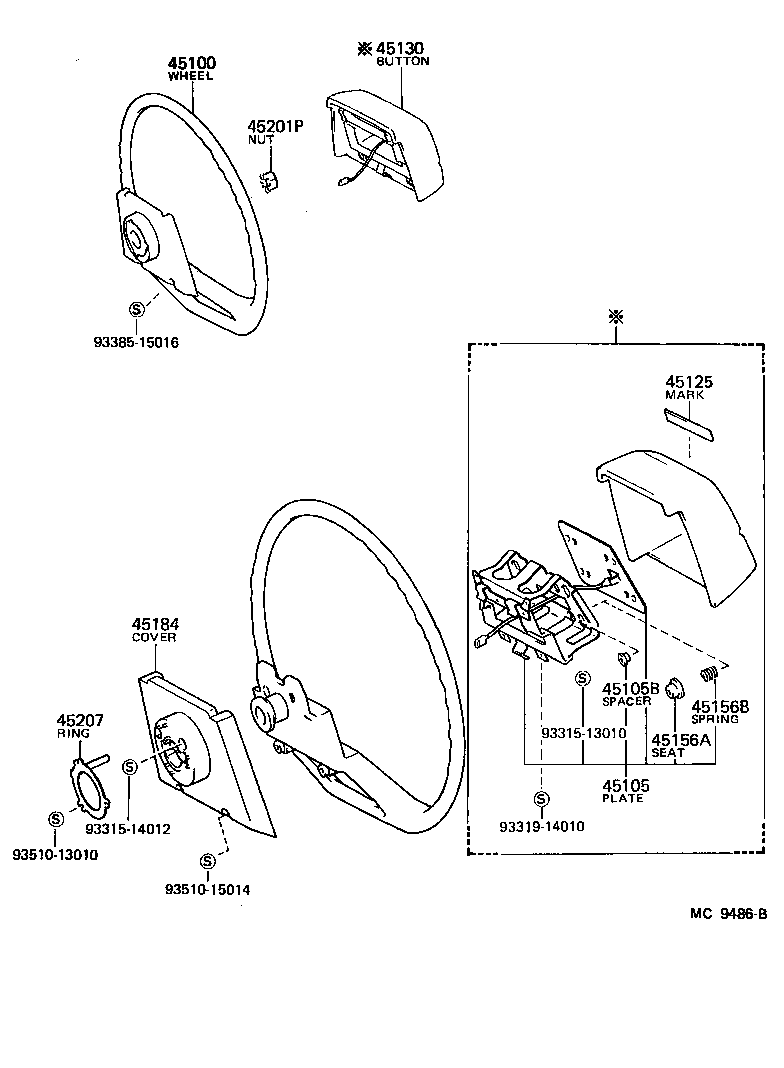

(8301- )USA

Click highlighted areas on diagram

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-2219016	SV11..USA DEEP BROWN,BROWN,TRIM4#	01/1983 - 05/1983	1
45100-2219003	CV10,SV11..USA DARK GRAY,GRAY,TRIM1#	05/1983 - 09/1983	1
45100-2219004	CV10,SV11..USA BLUE,BLUE,TRIM8#	05/1983 - 09/1983	1
45100-2219006	CV10,SV11..USA DARK BROWN,BROWN,TRIM4#	05/1983 - 09/1983	1
45100-2219104	CV1#,SV11..USA BLUE,BLUE,TRIM8#	09/1983 - 07/1986	1
45100-2219001	SV11..USA BLACK,BLACK,TRIM1#,8#	01/1983 - 05/1983	1
45100-2219115	CV1#,SV11..USA BEIGE,BEIGE,TRIM4#	08/1984 - 07/1986	1
45100-2219106	CV1#,SV11..USA DARK BROWN,BROWN,TRIM4#	09/1983 - 07/1986	1
45100-2219123	CV1#,SV11..USA SHADOW GRAY,SHADOW GRAY,TRIM1#	08/1984 - 07/1986	1
45100-2219103	CV10,SV11..USA DARK GRAY,GRAY,TRIM1#	09/1983 - 05/1984	1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-22070	CV1#,SV11..USA	01/1983 - 07/1986	1
45105B - SPACER(FOR HORN BUTTON CONTACT PLATE)
90561-02001	CV1#,SV11..USA	01/1983 - 07/1986	4
45125 - MARK, STEERING WHEEL PAD
45125-22320	CV1#,SV11..USA	01/1983 - 07/1986	1
45130 - BUTTON ASSY, HORN
45130-2220023	CV1#,SV11..USA SHADOW GRAY,SHADOW GRAY,TRIM1#	08/1984 - 07/1986	1
45130-2220004	CV1#,SV11..USA BLUE,BLUE,TRIM8#	05/1983 - 07/1986	1
45130-2220016	SV11..USA DEEP BROWN,BROWN,TRIM4#	01/1983 - 05/1983	1
45130-2220001	SV11..USA BLACK,BLACK,TRIM1#,8#	01/1983 - 05/1983	1
45130-2220003	CV10,SV11..USA DARK GRAY,GRAY,TRIM1#	05/1983 - 05/1984	1
45130-2220006	CV1#,SV11..USA DARK BROWN,BROWN,TRIM4#	05/1983 - 07/1986	1
45130-2220015	CV1#,SV11..USA BEIGE,BEIGE,TRIM4#	08/1984 - 07/1986	1
45156A - SEAT, HORN CONTACT SPRING SET
45156-16010	CV1#,SV11..USA	01/1983 - 07/1986	4
45156B - SPRING(FOR HORN CONTACT SPRING SET SEAT)
90501-06032	CV1#,SV11..USA	01/1983 - 07/1986	4
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-2209016	SV11..USA DEEP BROWN,BROWN,TRIM4#	01/1983 - 05/1983	1
45184-2209023	CV1#,SV11..USA SHADOW GRAY,SHADOW GRAY,TRIM1#	08/1984 - 07/1986	1
45184-2209015	CV1#,SV11..USA BEIGE,BEIGE,TRIM4#	08/1984 - 07/1986	1
45184-2209004	CV1#,SV11..USA BLUE,BLUE,TRIM8#	05/1983 - 07/1986	1
45184-2209006	CV1#,SV11..USA DARK BROWN,BROWN,TRIM4#	05/1983 - 07/1986	1
45184-2209001	SV11..USA BLACK,BLACK,TRIM1#,8#	01/1983 - 05/1983	1
45184-2209003	CV10,SV11..USA DARK GRAY,GRAY,TRIM1#	05/1983 - 05/1984	1
45201P - NUT, STEERING WHEEL SET
90179-12086	CV1#,SV11	01/1983 - 07/1986	1
45207 - RING, HORN CONTACT
45176-22050	CV1#,SV11..USA	01/1983 - 07/1986	1
Common parts
93315-13010
93315-14012
93319-14010
93385-15016
93510-13010
93510-15014

SV11L-UEPEEA (1983)

(8210-8406)

(8406- )

(8406- )

(8301- )USA
