SV11L-UEPEEA (1983)
Toyota Camry
(8301- )4FC

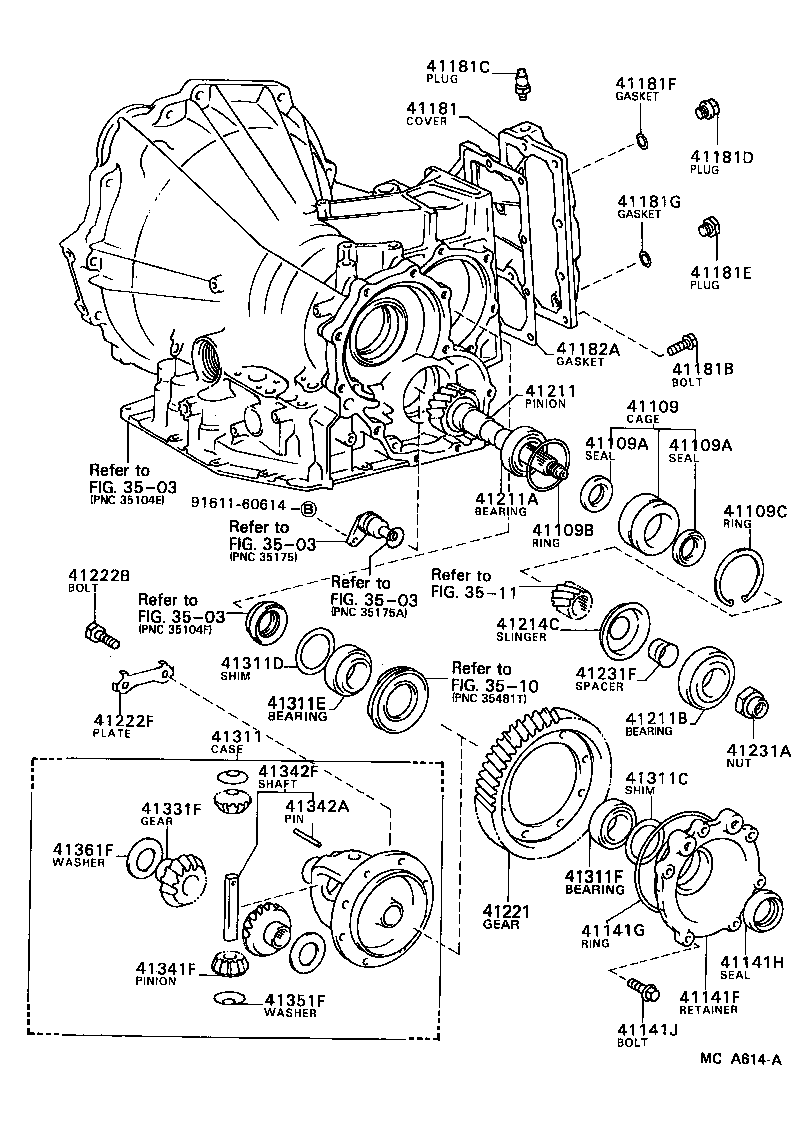

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41109 - CAGE SUB-ASSY, DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41109-32010 |
CV10,SV11..4FC |
1 | ||
| 41109-20010 |
CV11,SV11..4FC |
1 | ||
| 41109A - SEAL, OIL (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE) | ||||
| 90310-34005 |
CV1#,SV11..4FC |
2 | ||
| 90311-34003 |
CV10,SV11..4FC |
2 | ||
| 41109A - SEAL, OIL (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE) | ||||
| 90310-34005 |
CV1#,SV11..4FC |
2 | ||
| 90311-34003 |
CV10,SV11..4FC |
2 | ||
| 41109B - RING, O (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE) | ||||
| 90301-65003 |
CV1#,SV11..4FC |
1 | ||
| 41109C - RING, HOLE SNAP (FOR DIFF. DRIVE PINION BEARING CAGE) | ||||
| 90521-76002 |
CV1#,SV11..4FC |
1 | ||
| 41141F - RETAINER, FRONT DIFFERENTIAL SIDE BEARING | ||||
| 41141-32020 |
CV1#,SV11..4FC |
1 | ||
| 41141G - RING, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) | ||||
| 90301-99018 |
CV1#,SV11..4FC |
1 | ||
| 41141H - SEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER) | ||||
| 90311-35010 |
CV1#,SV11..4FC |
1 | ||
| 41141J - BOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) | ||||
| 91611-60825 |
CV1#,SV11..4FC *8-1.25PX25-25 |
6 | ||
| 41181 - COVER, FRONT DIFFERENTIAL CARRIER | ||||
| 41181-32010 |
CV10,SV11..4FC |
1 | ||
| 41181-32011 |
CV11,SV11..4FC |
1 | ||
| 41181B - BOLT (FOR FRONT DIFFERENTIAL CARRIER COVER SETTING) | ||||
| 90105-08062 |
CV1#,SV11..4FC *8-1.25PX29-24 |
11 | ||
| 41181C - PLUG, BREATHER (FOR FRONT DIFFERENTIAL CARRIER COVER) | ||||
| 90930-03031 |
CV1#,SV11..4FC |
1 | ||
| 41181D - PLUG (FOR FRONT DIFFERENTIAL FILLER) | ||||
| 90341-18002 |
CV1#,SV11..4FC |
1 | ||
| 41181E - PLUG (FOR FRONT DIFFERENTIAL DRAIN) | ||||
| 90341-18057 |
CV10,SV11..4FC |
1 | ||
| 90341-18021 |
CV11,SV11..4FC |
1 | ||
| 41181F - GASKET (FOR FRONT DIFFERENTIAL FILLER PLUG) | ||||
| 90430-18008 |
CV1#,SV11..4FC |
1 | ||
| 90430-18007 |
SV11..4FC |
1 | ||
| 41181G - GASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG) | ||||
| 90430-18007 |
SV11..4FC |
1 | ||
| 90430-18008 |
CV1#,SV11..4FC |
1 | ||
| 41182A - GASKET, DIFFERENTIAL CARRIER COVER | ||||
| 41182-32010 |
CV1#,SV11..4FC |
1 | ||
| 41211 - PINION, DIFFERENTIAL DRIVE | ||||
| 41211-32010 |
SV11..4FC |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-35013 |
CV10,SV11..4FC |
1 | ||
| 90366-35050 |
CV11,SV11..4FC |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-40010 |
CV1#,SV11..4FC KOYO |
1 | ||
| 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-32010 |
CV1#,SV11..4FC |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-32010 |
SV11 |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
SV11 |
8 | ||
| 90101-11003 |
CV1#,SV11 |
8 | ||
| 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-32010 |
CV1#,SV11 |
4 | ||
| 41231A - NUT, DRIVE PINION LOCK | ||||
| 90179-20004 |
CV1#,SV11..4FC |
1 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-32010 |
CV1#,SV11..4FC |
1 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-32020 |
CV1#,SV11..4FC |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-45011 |
CV1#,SV11..4FC T=2.40,MARK 11 |
1 | ||
| 41311D - SHIM (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90564-45002 |
CV1#,SV11..4FC T=1.95,MARK 02,T=1.95 |
1 | ||
| 90564-45007 |
CV1#,SV11..4FC T=2.20,MARK 07,T=2.20 |
1 | ||
| 90564-45001 |
CV1#,SV11..4FC T=1.90,MARK 01,T=1.90 |
1 | ||
| 90564-45004 |
CV1#,SV11..4FC T=2.05,MARK 04,T=2.05 |
1 | ||
| 90564-45003 |
CV1#,SV11..4FC T=2.00,MARK 03,T=2.00 |
1 | ||
| 90564-45012 |
CV1#,SV11..4FC T=2.45,MARK 12,T=2.45 |
1 | ||
| 90564-45016 |
CV1#,SV11..4FC T=2.65,MARK 16,T=2.65 |
1 | ||
| 90564-45015 |
CV1#,SV11..4FC T=2.60,MARK 15,T=2.60 |
1 | ||
| 90564-45013 |
CV1#,SV11..4FC T=2.50,MARK 13,T=2.50 |
1 | ||
| 90564-45006 |
CV1#,SV11..4FC T=2.15,MARK 06,T=2.15 |
1 | ||
| 90564-45008 |
CV1#,SV11..4FC T=2.25,MARK 08,T=2.25 |
1 | ||
| 90564-45014 |
CV1#,SV11..4FC T=2.55,MARK 14,T=2.55 |
1 | ||
| 90564-45005 |
CV1#,SV11..4FC T=2.10,MARK 05,T=2.10 |
1 | ||
| 90564-45011 |
CV1#,SV11..4FC T=2.40,MARK 11,T=2.40 |
1 | ||
| 90564-45009 |
CV1#,SV11..4FC T=2.30,MARK 09,T=2.30 |
1 | ||
| 90564-45018 |
CV1#,SV11..4FC T=2.75,MARK 18,T=2.75 |
1 | ||
| 90564-45010 |
CV1#,SV11..4FC T=2.35,MARK 10,T=2.35 |
1 | ||
| 90564-45017 |
CV1#,SV11..4FC T=2.70,MARK 17,T=2.70 |
1 | ||
| 90564-45019 |
CV1#,SV11..4FC T=2.80,MARK 19,T=2.80 |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90368-40003 |
CV10,SV11 |
1 | ||
| 90366-40016 |
CV11,SV11..4FC |
1 | ||
| 90368-40003 |
CV10,SV11..4FC |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90368-40003 |
CV10,SV11 |
1 | ||
| 90368-40003 |
CV10,SV11..4FC |
1 | ||
| 90366-40023 |
CV11,SV11..4FC |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-32010 |
CV1#,SV11 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-30011 |
CV1#,SV11 |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
CV1#,SV11 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-39025 |
CV1#,SV11 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
CV1#,SV11 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22150 |
CV1#,SV11 T=1.05,MARK 15,T=1.05 |
2 | ||
| 41361-22030 |
CV1#,SV11 T=1.10,MARK 03,T=1.1 |
2 | ||
| 41361-22140 |
CV1#,SV11 T=0.95,MARK 14,T=0.95 |
2 | ||
| 41361-22160 |
CV1#,SV11 T=1.15,MARK 16,T=1.15 |
2 | ||
| 41361-22020 |
CV1#,SV11 T=1.00,MARK 02,T=1.0 |
2 | ||
| 41361-22040 |
CV1#,SV11 T=1.20,MARK 04,T=1.2 |
2 | ||
| Common parts | ||||
| 91611-60614 | ||||
| Linked diagrams | ||||
| 3503 | ||||
| 3510 | ||||
| 3511 | ||||
