SV11L-UEPEEA (1983)
Toyota Camry
(8301- )4FC

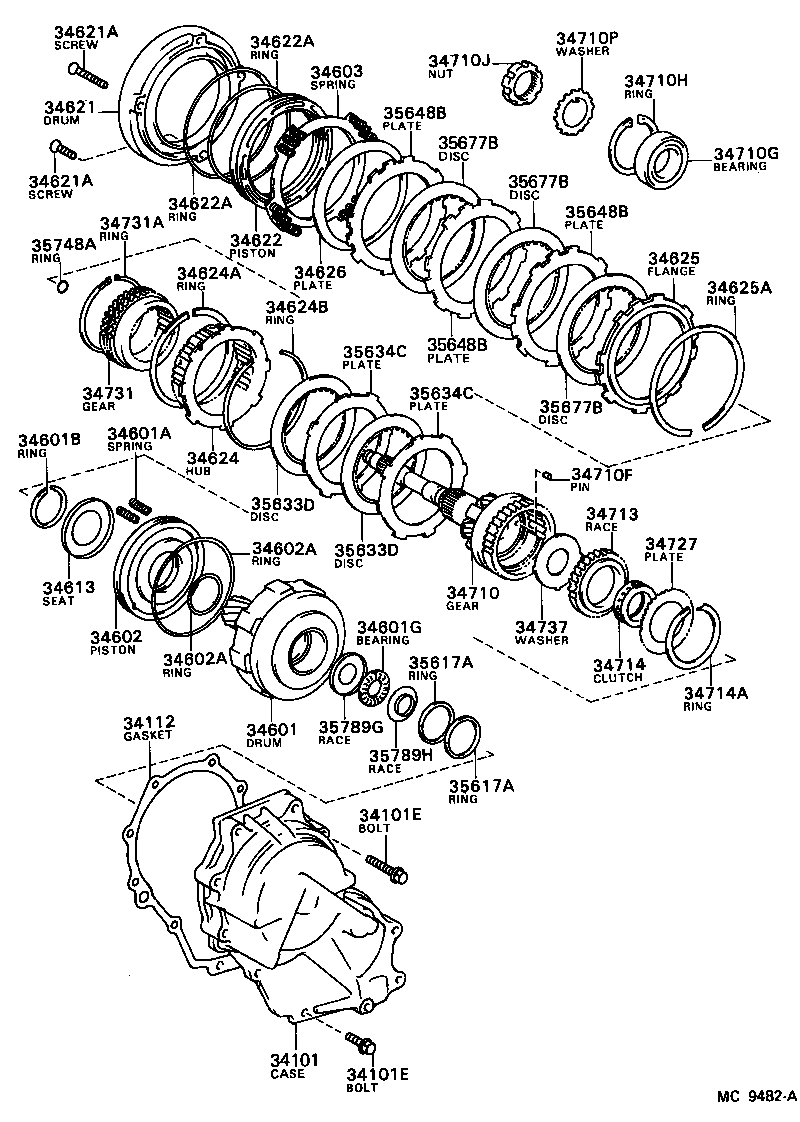

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34101 - CASE SUB-ASSY, OVERDRIVE | ||||
| 34101-32021 |
CV11,SV11..4FC |
1 | ||
| 34101-32020 |
CV1#,SV11..4FC |
1 | ||
| 34101E - BOLT (FOR OVERDRIVE CASE & TRANSAXLE CASE SETTING) | ||||
| 90105-08055 |
CV1#,SV11..4FC *8-1.25PX25-25,*8-1.25PX25-25 |
2 | ||
| 90105-08056 |
CV1#,SV11..4FC *8-1.25PX40-40,*8-1.25PX40-40 |
9 | ||
| 34101E - BOLT (FOR OVERDRIVE CASE & TRANSAXLE CASE SETTING) | ||||
| 90105-08055 |
CV1#,SV11..4FC *8-1.25PX25-25,*8-1.25PX25-25 |
2 | ||
| 90105-08056 |
CV1#,SV11..4FC *8-1.25PX40-40,*8-1.25PX40-40 |
9 | ||
| 34112 - GASKET, OVERDRIVE CASE | ||||
| 34112-32010 |
CV1#,SV11..4FC |
1 | ||
| 34601 - DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34601-32011 |
CV1#,SV11..4FC |
1 | ||
| 34601-32010 |
CV10,SV11..4FC |
1 | ||
| 34601A - SPRING, COMPRESSION (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 90501-11007 |
CV1#,SV11..4FC |
18 | ||
| 34601B - RING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 90520-52262 |
CV1#,SV11..4FC |
1 | ||
| 34601G - BEARING,THRUST NEEDLE ROLLER(FOR OVERDRIVE DIRECT CLUTC | ||||
| 90374-28004 |
CV1#,SV11..4FC |
1 | ||
| 34602 - PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34602-32010 |
CV1#,SV11..4FC |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-57188 |
CV1#,SV11..4FC INNER |
1 | ||
| 90301-99016 |
CV1#,SV11..4FC OUTER |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-57188 |
CV1#,SV11..4FC INNER |
1 | ||
| 90301-99016 |
CV1#,SV11..4FC OUTER |
1 | ||
| 34603 - SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN | ||||
| 34603-32010 |
CV1#,SV11..4FC |
1 | ||
| 34613 - SEAT, OVERDRIVE DIRECT CLUTCH RETURN SPRING | ||||
| 34613-30010 |
CV1#,SV11..4FC |
1 | ||
| 34621 - DRUM, OVERDRIVE BRAKE | ||||
| 34621-32010 |
CV1#,SV11..4FC |
1 | ||
| 34621A - SCREW (FOR OVERDRIVE BRAKE DRUM SETTING) | ||||
| 90149-60023 |
CV1#,SV11..4FC L=35 |
3 | ||
| 90149-60022 |
CV1#,SV11..4FC L=25 |
1 | ||
| 34621A - SCREW (FOR OVERDRIVE BRAKE DRUM SETTING) | ||||
| 90149-60023 |
CV1#,SV11..4FC L=35 |
3 | ||
| 90149-60022 |
CV1#,SV11..4FC L=25 |
1 | ||
| 34622 - PISTON, OVERDRIVE BRAKE | ||||
| 34622-32010 |
CV1#,SV11..4FC |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99020 |
CV1#,SV11..4FC INNER |
1 | ||
| 90301-99022 |
CV1#,SV11..4FC OUTER |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99020 |
CV1#,SV11..4FC INNER |
1 | ||
| 90301-99022 |
CV1#,SV11..4FC OUTER |
1 | ||
| 34624 - HUB, OVERDRIVE BRAKE | ||||
| 34624-32010 |
CV1#,SV11..4FC |
1 | ||
| 34624A - RING, HOLE SNAP, NO.1 (FOR OVERDRIVE BRAKE HUB) | ||||
| 90521-99001 |
CV1#,SV11..4FC |
1 | ||
| 34624B - RING, HOLE SNAP, NO.2 (FOR OVERDRIVE BRAKE HUB) | ||||
| 90521-99012 |
CV1#,SV11..4FC |
1 | ||
| 34625 - FLANGE, OVERDRIVE BRAKE, NO.1 | ||||
| 34625-32010 |
CV1#,SV11..4FC |
1 | ||
| 34625A - RING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE) | ||||
| 90521-99011 |
CV1#,SV11..4FC |
1 | ||
| 34626 - PLATE, OVERDRIVE BRAKE CUSHION | ||||
| 34626-30050 |
CV1#,SV11..4FC |
1 | ||
| 34710 - GEAR ASSY, OVERDRIVE PLANETARY | ||||
| 34710-32011 |
CV11,SV11..4FC |
1 | ||
| 34710-32010 |
CV1#,SV11..4FC |
1 | ||
| 34710F - PIN, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90334-03001 |
CV1#,SV11..4FC |
4 | ||
| 34710G - BEARING, RADIAL BALL(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90363-40024 |
CV1#,SV11..4FC |
1 | ||
| 34710H - RING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR BEARING) | ||||
| 90521-76003 |
CV1#,SV11..4FC |
1 | ||
| 34710J - NUT(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90179-40002 |
CV1#,SV11..4FC |
1 | ||
| 34710P - WASHER(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90209-40001 |
CV1#,SV11..4FC |
1 | ||
| 34713 - RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE) | ||||
| 34713-32010 |
CV1#,SV11..4FC |
1 | ||
| 34714 - CLUTCH, 1 WAY(FOR OVERDRIVE) | ||||
| 34714-32010 |
CV1#,SV11..4FC |
1 | ||
| 34714A - RING, HOLE SNAP(FOR 1 WAY CLUTCH) | ||||
| 90521-93002 |
CV1#,SV11..4FC |
1 | ||
| 34727 - PLATE, RETAINING (FOR OVERDRIVE) | ||||
| 34727-32010 |
CV1#,SV11..4FC |
1 | ||
| 34731 - GEAR, OVERDRIVE PLANETARY RING | ||||
| 34731-32010 |
CV1#,SV11..4FC |
1 | ||
| 34731A - RING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR) | ||||
| 90521-99008 |
CV1#,SV11..4FC |
1 | ||
| 34737 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3 | ||||
| 34737-32011 |
CV1#,SV11..4FC |
1 | ||
| 34737-32010 |
CV10,SV11..4FC |
1 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-16010 |
CV1#,SV11..4FC |
2 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-16010 |
CV1#,SV11..4FC |
2 | ||
| 35633D - DISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35633-32010 |
SV11..4FC |
2 | ||
| 35633-32020 |
CV1#,SV11..4FC |
2 | ||
| 35633D - DISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35633-32010 |
SV11..4FC |
2 | ||
| 35633-32020 |
CV1#,SV11..4FC |
2 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35634-32010 |
CV1#,SV11..4FC T=1.8 |
2 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35634-32010 |
CV1#,SV11..4FC T=1.8 |
2 | ||
| 35648B - PLATE, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 35648-32020 |
CV1#,SV11..4FC |
3 | ||
| 35648B - PLATE, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 35648-32020 |
CV1#,SV11..4FC |
3 | ||
| 35648B - PLATE, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 35648-32020 |
CV1#,SV11..4FC |
3 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 35677-32030 |
CV10,SV11..4FC |
3 | ||
| 35677-30040 |
CV11,SV11..4FC |
3 | ||
| 35677-32010 |
SV11..4FC |
3 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 35677-32030 |
CV10,SV11..4FC |
3 | ||
| 35677-30040 |
CV11,SV11..4FC |
3 | ||
| 35677-32010 |
SV11..4FC |
3 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 35677-32030 |
CV10,SV11..4FC |
3 | ||
| 35677-30040 |
CV11,SV11..4FC |
3 | ||
| 35677-32010 |
SV11..4FC |
3 | ||
| 35748A - RING, INTERMEDIATE SHAFT OIL SEAL (FOR OVERDRIVE) | ||||
| 35748-32010 |
CV1#,SV11..4FC |
1 | ||
| 35789G - RACE, THRUST BEARING (FOR OVERDRIVE DIRECT CLUTCH DRUM) | ||||
| 35789-32090 |
CV1#,SV11..4FC |
1 | ||
| 35789H - RACE, THRUST BEARING (FOR OVERDRIVE CASE) | ||||
| 35789-20020 |
CV11,SV11..4FC |
1 | ||
| 35789-32100 |
CV10,SV11..4FC |
1 | ||
