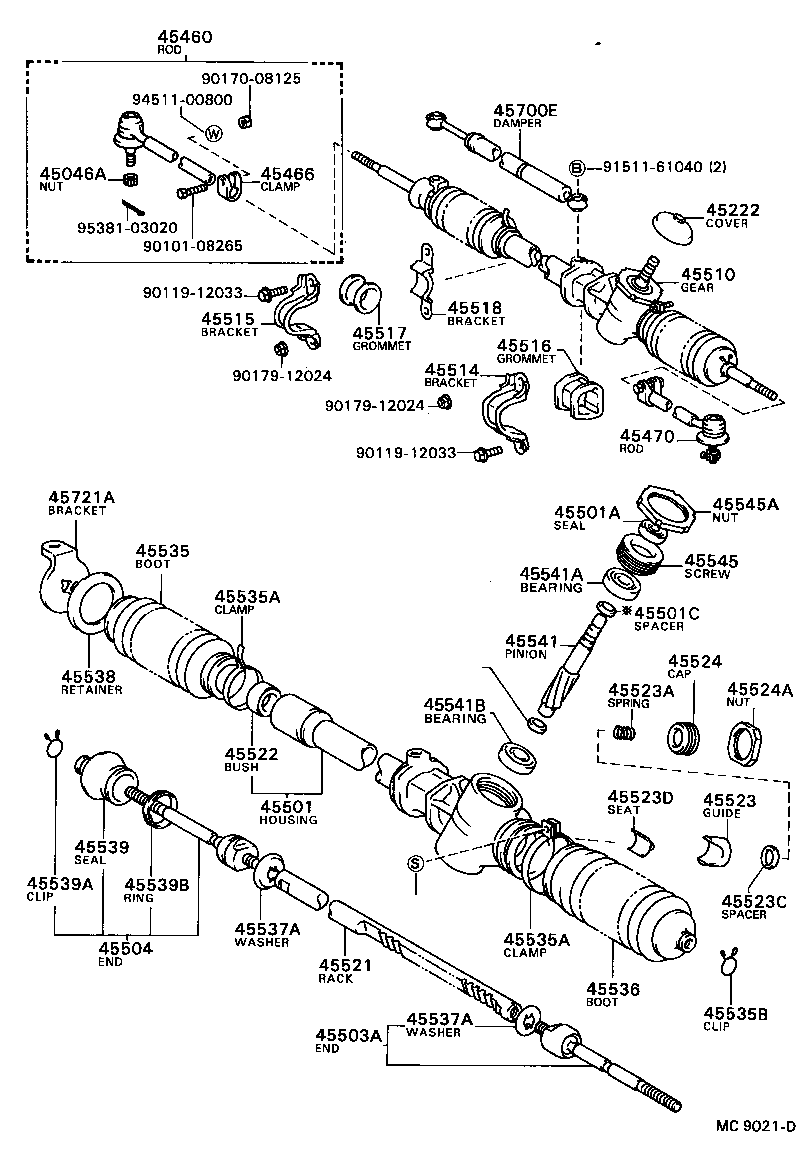

SV11L-UEMNEA (1983)
Toyota Camry
(8301- )DLX ; (8408- )5F..DLX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
CV1#,SV11 |
2 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-20010 |
SV11..5F..DLX |
1 | ||
| 45222-20010 |
CV10,SV11..DLX |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39165 |
CV1#,SV11 |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
CV1#,SV11 |
2 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-39165 |
CV1#,SV11 |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-32040 |
SV11..5F..DLX VARIABLE GEAR RATIO |
1 | ||
| 45501-32030 |
SV11..DLX CONSTANT GEAR RATIO |
1 | ||
| 45501-32040 |
CV10,SV11..DLX VARIABLE GEAR RATIO |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-15001 |
CV10,SV11..DLX |
1 | ||
| 90311-15001 |
SV11..5F..DLX |
1 | ||
| 45501C - SPACER(FOR STEERING RACK HOUSING) | ||||
| 90560-15005 |
SV11..5F..DLX VARIABLE GEAR RATIO |
2 | ||
| 90560-15005 |
CV10,SV11..DLX VARIABLE GEAR RATIO |
2 | ||
| 45503A - END SUB-ASSY, STEERING RACK, NO.1 | ||||
| 45503-39015 |
CV10,SV11..DLX |
1 | ||
| 45503-39015 |
SV11..5F..DLX |
1 | ||
| 45504 - END SUB-ASSY, STEERING RACK, NO.2 | ||||
| 45504-32010 |
CV10,SV11..DLX |
1 | ||
| 45504-32010 |
SV11..5F..DLX |
1 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-32040 |
CV10,SV11..DLX VARIABLE GEAR RATIO |
1 | ||
| 45510-32030 |
SV11..DLX CONSTANT GEAR RATIO |
1 | ||
| 45510-32040 |
SV11..5F..DLX VARIABLE GEAR RATIO |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-32040 |
CV1#,SV11 W/POWER STEERING |
1 | ||
| 45514-32050 |
CV10,SV11 |
1 | ||
| 45514-32050 |
SV11..5F..DLX |
1 | ||
| 45514-32010 |
CV10,SV11 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45506-32010 |
CV10,SV11 W/POWER STEERING |
1 | ||
| 45515-32020 |
CV10,SV11..DLX |
1 | ||
| 45506-32030 |
CV1#,SV11 W/POWER STEERING |
1 | ||
| 45515-32060 |
CV10,SV11..DLX |
1 | ||
| 45515-32060 |
SV11..5F..DLX |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-32010 |
CV1#,SV11 |
1 | ||
| 45516-32010 |
SV11..5F..DLX |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-32040 |
CV1#,SV11 W/POWER STEERING |
1 | ||
| 45517-32020 |
CV10,SV11..DLX |
1 | ||
| 45517-32020 |
SV11..5F..DLX |
1 | ||
| 45517-32010 |
CV10,SV11 W/POWER STEERING |
1 | ||
| 45518 - BRACKET, STEERING RACK HOUSING, NO.3 | ||||
| 45518-32010 |
CV10,SV11..DLX |
1 | ||
| 45518-32030 |
CV10,SV11..DLX |
1 | ||
| 45518-32030 |
CV10,SV11..DLX |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-32040 |
CV10,SV11..DLX VARIABLE GEAR RATIO |
1 | ||
| 45521-32030 |
SV11..DLX CONSTANT GEAR RATIO |
1 | ||
| 45521-32040 |
SV11..5F..DLX VARIABLE GEAR RATIO |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-22010 |
CV10,SV11..DLX |
1 | ||
| 45522-22010 |
SV11..5F..DLX |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-16011 |
SV11..DLX CONSTANT GEAR RATIO |
1 | ||
| 45523-20011 |
CV10,SV11..DLX VARIABLE GEAR RATIO |
1 | ||
| 45523-20011 |
SV11..5F..DLX VARIABLE GEAR RATIO |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-29007 |
SV11..5F..DLX VARIABLE GEAR RATIO |
1 | ||
| 90501-23007 |
SV11..DLX CONSTANT GEAR RATIO |
1 | ||
| 90501-29007 |
CV10,SV11..DLX VARIABLE GEAR RATIO |
1 | ||
| 45523C - SPACER(FOR RACK GUIDE) | ||||
| 90560-23007 |
SV11..5F..DLX VARIABLE GEAR RATIO |
1 | ||
| 90560-23003 |
SV11..DLX CONSTANT GEAR RATIO |
1 | ||
| 90560-23007 |
CV10,SV11..DLX VARIABLE GEAR RATIO |
1 | ||
| 45523D - SEAT, RACK GUIDE | ||||
| 44277-20030 |
CV10,SV11..DLX VARIABLE GEAR RATIO |
1 | ||
| 44277-20030 |
SV11..5F..DLX VARIABLE GEAR RATIO |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-20011 |
SV11..5F..DLX VARIABLE GEAR RATIO |
1 | ||
| 45524-20011 |
CV10,SV11..DLX VARIABLE GEAR RATIO |
1 | ||
| 45524-16010 |
SV11..DLX CONSTANT GEAR RATIO |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
SV11..5F..DLX |
1 | ||
| 90179-36002 |
CV10,SV11..DLX |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-32010 |
CV10,SV11..DLX |
1 | ||
| 45535-32010 |
SV11..5F..DLX |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10524 |
CV10,SV11..DLX NO.2 BOOT |
1 | ||
| 90949-01021 |
CV10,SV11..DLX NO.1 BOOT |
1 | ||
| 90949-01021 |
SV11..5F..DLX NO.1 BOOT |
1 | ||
| 90461-10524 |
SV11..5F..DLX NO.2 BOOT |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10524 |
CV10,SV11..DLX NO.2 BOOT |
1 | ||
| 90949-01021 |
CV10,SV11..DLX NO.1 BOOT |
1 | ||
| 90949-01021 |
SV11..5F..DLX NO.1 BOOT |
1 | ||
| 90461-10524 |
SV11..5F..DLX NO.2 BOOT |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
CV10,SV11..DLX |
1 | ||
| 90467-18003 |
SV11..5F..DLX |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-14020 |
CV10,SV11..DLX |
1 | ||
| 45536-14020 |
SV11..5F..DLX |
1 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14004 |
SV11..5F..DLX NO.2 END |
1 | ||
| 90214-14004 |
CV10,SV11..DLX NO.2 END |
1 | ||
| 90214-14002 |
CV10,SV11..DLX NO.1 END |
1 | ||
| 90214-14002 |
SV11..5F..DLX NO.1 END |
1 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14004 |
SV11..5F..DLX NO.2 END |
1 | ||
| 90214-14004 |
CV10,SV11..DLX NO.2 END |
1 | ||
| 90214-14002 |
CV10,SV11..DLX NO.1 END |
1 | ||
| 90214-14002 |
SV11..5F..DLX NO.1 END |
1 | ||
| 45538 - RETAINER, STEERING RACK BOOT | ||||
| 45538-32010 |
CV10,SV11..DLX |
1 | ||
| 45538-32010 |
SV11..5F..DLX |
1 | ||
| 45539 - GUIDE, REAR STEERING CONTROL CABLE, NO.1 | ||||
| 45539-32020 |
CV10,SV11..DLX |
1 | ||
| 45539-32020 |
SV11..5F..DLX |
1 | ||
| 45539A - CLIP(FOR RACK END DUST SEAL) | ||||
| 90467-18003 |
SV11..5F..DLX |
1 | ||
| 90467-18003 |
CV10,SV11..DLX |
1 | ||
| 45539B - RING, SET(FOR RACK END DUST SEAL) | ||||
| 90522-32011 |
CV10,SV11..DLX |
1 | ||
| 90522-32011 |
SV11..5F..DLX |
1 | ||
| 45541 - PINION, STEERING | ||||
| 45541-32040 |
SV11..5F..DLX VARIABLE GEAR RATIO |
1 | ||
| 45541-32030 |
SV11..DLX CONSTANT GEAR RATIO |
1 | ||
| 45541-32040 |
CV10,SV11..DLX VARIABLE GEAR RATIO |
1 | ||
| 45541A - BEARING, RADIAL BALL(FOR STEERING PINION UPPER) | ||||
| 90363-15006 |
SV11..5F..DLX |
1 | ||
| 90363-15006 |
CV10,SV11..DLX |
1 | ||
| 45541B - BEARING, RADIAL BALL(FOR STEERING PINION LOWER) | ||||
| 90363-15005 |
SV11..5F..DLX |
1 | ||
| 90363-15005 |
CV10,SV11..DLX |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-22010 |
SV11..DLX CONSTANT GEAR RATIO |
1 | ||
| 45545-20010 |
SV11..5F..DLX VARIABLE GEAR RATIO |
1 | ||
| 45545-20010 |
CV10,SV11..DLX VARIABLE GEAR RATIO |
1 | ||
| 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-42001 |
CV10,SV11..DLX |
1 | ||
| 90179-42001 |
SV11..5F..DLX |
1 | ||
| 45700E - DAMPER ASSY, STEERING | ||||
| 45700-32010 |
CV10,SV11..DLX |
1 | ||
| 45700-32010 |
SV11..5F..DLX |
1 | ||
| 45721A - BRACKET, STEERING DAMPER, NO.2 | ||||
| 45721-32020 |
CV10,SV11..DLX |
1 | ||
| 45721-32020 |
SV11..5F..DLX |
1 | ||
| Common parts | ||||
| 90101-08265 | ||||
| 90119-12033 | ||||
| 90170-08125 | ||||
| 90179-12024 | ||||
| 91511-61040 | ||||
| 94511-00800 | ||||
| 95381-03020 | ||||
(8301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44210K - GASKET KIT, POWER STEERING CONTROL VALVE OVERHAUL | ||||
| 04455-32010 |
CV1#,SV11 |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-32030 |
CV1#,SV11 |
1 | ||
| 44250K - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-32020 |
CV1#,SV11 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
CV1#,SV11 |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39165 |
CV1#,SV11 |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
CV1#,SV11 |
2 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-39165 |
CV1#,SV11 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-32040 |
CV1#,SV11 W/POWER STEERING |
1 | ||
| 45514-32050 |
CV10,SV11 |
1 | ||
| 45514-32050 |
SV11..5F..DLX |
1 | ||
| 45514-32010 |
CV10,SV11 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45506-32010 |
CV10,SV11 W/POWER STEERING |
1 | ||
| 45515-32020 |
CV10,SV11..DLX |
1 | ||
| 45506-32030 |
CV1#,SV11 W/POWER STEERING |
1 | ||
| 45515-32060 |
CV10,SV11..DLX |
1 | ||
| 45515-32060 |
SV11..5F..DLX |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-32010 |
CV1#,SV11 |
1 | ||
| 45516-32010 |
SV11..5F..DLX |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-32040 |
CV1#,SV11 W/POWER STEERING |
1 | ||
| 45517-32020 |
CV10,SV11..DLX |
1 | ||
| 45517-32020 |
SV11..5F..DLX |
1 | ||
| 45517-32010 |
CV10,SV11 W/POWER STEERING |
1 | ||
| Common parts | ||||
| 90101-08265 | ||||
| 90119-12033 | ||||
| 90170-08125 | ||||
| 90179-12024 | ||||
| 94511-00800 | ||||
| 95381-03020 | ||||
(8301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-32020 |
CV1#,SV11 |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
CV1#,SV11 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
CV1#,SV11 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
CV1#,SV11 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
CV1#,SV11 |
4 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-32020 |
CV1#,SV11 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-37001 |
CV1#,SV11 OUTER |
1 | ||
| 90301-33003 |
CV1#,SV11 INNER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-37001 |
CV1#,SV11 OUTER |
1 | ||
| 90301-33003 |
CV1#,SV11 INNER |
1 | ||
| 44205 - STOPPER SUB-ASSY, CYLINDER END | ||||
| 44205-24010 |
CV1#,SV11 |
1 | ||
| 44205A - RING, O(FOR CYLINDER END STOPPER) | ||||
| 90301-49004 |
CV1#,SV11 |
1 | ||
| 44205B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90311-25008 |
CV1#,SV11 NOK |
1 | ||
| 90311-25014 |
CV11,SV11 KOYO |
1 | ||
| 44209 - HOUSING SUB-ASSY, POWER STEERING CYLINDER | ||||
| 44209-14020 |
CV1#,SV11 |
1 | ||
| 44209A - SEAL(FOR POWER STEERING CYLINDER HOUSING) | ||||
| 90311-25006 |
CV1#,SV11 NOK |
1 | ||
| 90311-25013 |
CV11,SV11 KOYO |
1 | ||
| 44209B - SPACER(FOR POWER STEERING CYLINDER HOUSING) | ||||
| 90560-26004 |
CV1#,SV11 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-32030 |
CV1#,SV11 |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06002 |
CV1#,SV11 |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 96711-24060 |
CV1#,SV11 |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19006 |
CV1#,SV11 |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19002 |
CV1#,SV11 |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-32030 |
CV1#,SV11 |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-32010 |
CV1#,SV11 |
1 | ||
| 44252B - BEARING(FOR POWER STEERING PINION) | ||||
| 90363-13002 |
CV1#,SV11 |
1 | ||
| 44252C - CAP(FOR POWER STEERING PINION) | ||||
| 45524-16010 |
CV1#,SV11 |
1 | ||
| 44252D - NUT(FOR POWER STEERING PINION CAP) | ||||
| 90179-36002 |
CV1#,SV11 |
1 | ||
| 44253 - HOUSING, POWER STEERING RACK | ||||
| 44253-32030 |
CV1#,SV11 |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-28001 |
CV1#,SV11 |
1 | ||
| 44253B - RING, O(FOR POWER STEERING RACK HOUSING) | ||||
| 90301-38001 |
CV1#,SV11 |
1 | ||
| 44256 - NUT, CYLINDER END STOPPER | ||||
| 44256-24010 |
CV1#,SV11 |
1 | ||
| 44267 - GUIDE, RACK END | ||||
| 44267-24010 |
CV1#,SV11 |
1 | ||
| 44267A - WASHER(FOR RACK END GUIDE) | ||||
| 90206-43001 |
CV1#,SV11 |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-24010 |
CV1#,SV11 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-32030 |
CV1#,SV11 |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-05004 |
CV1#,SV11 |
4 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-05004 |
CV1#,SV11 |
4 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-32030 |
CV1#,SV11 |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-39015 |
CV1#,SV11 |
2 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-39015 |
CV1#,SV11 |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
CV1#,SV11 |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
CV1#,SV11 |
2 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-24010 |
CV1#,SV11 |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23024 |
CV1#,SV11 |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-16010 |
CV1#,SV11 |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
CV1#,SV11 |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-14011 |
CV1#,SV11 |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90461-10554 |
CV1#,SV11 |
2 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90461-10554 |
CV1#,SV11 |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
CV1#,SV11 |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
CV1#,SV11 |
2 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45535-14011 |
CV1#,SV11 |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 91611-60825 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
