SV11L-UEMEEK (1983)

Toyota Camry

Production Jan 1983 - Jul 1986
Engine 2SELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

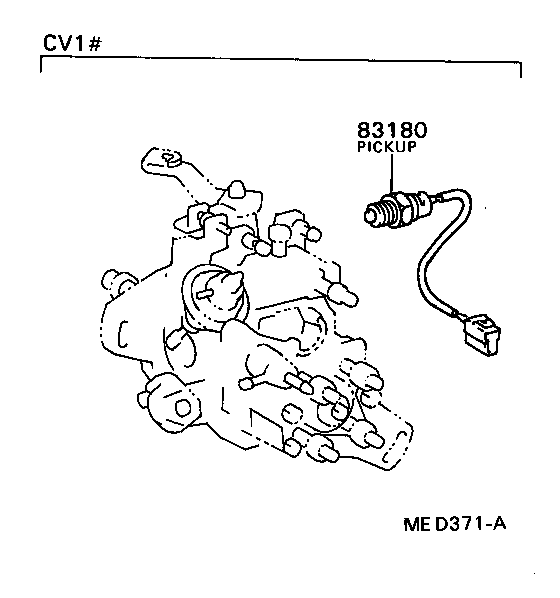

Click highlighted areas on diagram

diagram 83180
Part # Description Qty Price

(8301- )LE

Click highlighted areas on diagram

diagram 83100B 83100B 83100B 83101 83101 83102 83109 83110 83128 83132 83133 83145 83145A 83270 83310 83410 83910 9009900909 9009900909 9009900929 9009900939 9009900953 9354013010 9354013014 9356755020
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99132-12034

CV1#,SV11

12V 3.4W,12V 3.4W

 15
90981-11018

SV11..LE

12V 1.2W W/O SOCKET,12V 1.4W

 11
83100B - BULB, COMBINATION METER, NO.1
99132-12034

CV1#,SV11

12V 3.4W,12V 3.4W

 15
90981-11018

SV11..LE

12V 1.2W W/O SOCKET,12V 1.4W

 11
83100B - BULB, COMBINATION METER, NO.1
99132-12034

CV1#,SV11

12V 3.4W,12V 3.4W

 15
90981-11018

SV11..LE

12V 1.2W W/O SOCKET,12V 1.4W

 11
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-12020

SV11..LE

*DS,12V 3.4W,LONG

 2
83101-14040

SV11..LE

12V 1.4W

 11
83101-14030

CV1#,SV11

12V 3.4W

 15
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-12020

SV11..LE

*DS,12V 3.4W,LONG

 2
83101-14040

SV11..LE

12V 1.4W

 11
83101-14030

CV1#,SV11

12V 3.4W

 15
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-32830

SV11..LE

 1
83247-32690

SV11..LE

W/DIGITAL SPEEDOMETER

 1
83247-32251

SV11..LE

 1
83109 - BULB, COMBINATION METER, NO.2
83109-24040

SV11..LE

12V1.4W W(GREEN CAP),12V 1.4W,W/GREEN CAP

 3
83109-24030

CV1#,SV11

12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP

 2
83110 - SPEEDOMETER ASSY
83110-32120

SV11..LE..CND

 1
83110-32250

SV11..LE..CND

 1
83110-32180

SV11..LE..CND

 1
83110-32310

SV11..LE

W/DIGITAL SPEEDOMETER

 1
83110-32251

SV11..LE..CND

 1
83128 - KNOB, TRIP COUNTER
83128-32070

SV11..LE

W/DIGITAL SPEEDOMETER

 1
83128-32010

CV1#,SV11

 1
83132 - CASE, COMBINATION METER
83132-32190

SV11..LE

 1
83132-32690

SV11..LE

W/DIGITAL SPEEDOMETER

 1
83132-32810

SV11..LE

 1
83133 - PLATE, COMBINATION METER, NO.1
83133-32250

SV11..LE

W/DIGITAL SPEEDOMETER

 1
83133-32130

SV11..LE

 1
83145 - LENS, METER, NO.1
83145-32090

SV11..LE

 1
83145-32290

SV11..LE

W/DIGITAL SPEEDOMETER

 1
83145A - LENS, METER, NO.2
83145-30790

SV11..LE

 1
83270 - TACHOMETER ASSY, ENGINE
83242-32070

SV11..LE

 1
83242-32070

SV11..LE..CND

 1
83242-32350

SV11..CND

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-32111

SV11..LE

 1
83243-32270

SV11..LE

 1
83310-32010

SV11..LE

W/DIGITAL SPEEDOMETER

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-32110

SV11..LE

 1
83244-32390

SV11..LE

 1
83410-32010

SV11..LE

W/DIGITAL SPEEDOMETER

 1
83910 - CLOCK ASSY
83910-32030

SV11..LE

 1
83910-32040

SV11..LE

W/DIGITAL SPEEDOMETER

 1
Common parts
90099-00909
90099-00929
90099-00939
90099-00953
93540-13010
93540-13014
93567-55020

(8301- )

Click highlighted areas on diagram

diagram 8271122220 8271132420 83180 83710
Part # Description Qty Price
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-32070

CV10,SV11

 1
83710-32071

CV1#,SV11

 1
Common parts
82711-22220
82711-32420

(8408- )

Click highlighted areas on diagram

diagram 83100B 83101 83101 83102 83109 83110 83121 83128 83129 83131 83132 83133 83133A 83133B 83145 83159 83310 83410 83910 9009900909 9009900909 9009900910 9009900929 9009900929 9009900963 9009900963 9331513010 9354013014 9356755020
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99132-12034

CV1#,SV11

12V 3.4W,12V 3.4W

 15
90981-11018

SV11..LE

12V 1.2W W/O SOCKET,12V 1.4W

 11
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-12020

SV11..LE

*DS,12V 3.4W,LONG

 2
83101-14040

SV11..LE

12V 1.4W

 11
83101-14030

CV1#,SV11

12V 3.4W

 15
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-12020

SV11..LE

*DS,12V 3.4W,LONG

 2
83101-14040

SV11..LE

12V 1.4W

 11
83101-14030

CV1#,SV11

12V 3.4W

 15
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-32830

SV11..LE

 1
83247-32690

SV11..LE

W/DIGITAL SPEEDOMETER

 1
83247-32251

SV11..LE

 1
83109 - BULB, COMBINATION METER, NO.2
83109-24040

SV11..LE

12V1.4W W(GREEN CAP),12V 1.4W,W/GREEN CAP

 3
83109-24030

CV1#,SV11

12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP

 2
83110 - SPEEDOMETER ASSY
83110-32120

SV11..LE..CND

 1
83110-32250

SV11..LE..CND

 1
83110-32180

SV11..LE..CND

 1
83110-32310

SV11..LE

W/DIGITAL SPEEDOMETER

 1
83110-32251

SV11..LE..CND

 1
83121 - COUNTER, TOTAL
83121-32070

SV11..CND

W/DIGITAL SPEEDOMETER

 1
83128 - KNOB, TRIP COUNTER
83128-32070

SV11..LE

W/DIGITAL SPEEDOMETER

 1
83128-32010

CV1#,SV11

 1
83129 - WIRE, METER
83129-32010

SV11..LE

W/DIGITAL SPEEDOMETER

 1
83131 - DIAL, METER, NO.1
83131-32190

SV11..LE..CND

W/DIGITAL SPEEDOMETER

 1
83131-32090

SV11..LE..CND

W/DIGITAL SPEEDOMETER

 1
83132 - CASE, COMBINATION METER
83132-32190

SV11..LE

 1
83132-32690

SV11..LE

W/DIGITAL SPEEDOMETER

 1
83132-32810

SV11..LE

 1
83133 - PLATE, COMBINATION METER, NO.1
83133-32250

SV11..LE

W/DIGITAL SPEEDOMETER

 1
83133-32130

SV11..LE

 1
83133A - PLATE, COMBINATION METER, NO.2
83133-32210

SV11..LE

W/DIGITAL SPEEDOMETER

 1
83133B - PLATE, COMBINATION METER, NO.3
83133-32190

SV11..LE

W/DIGITAL SPEEDOMETER

 1
83145 - LENS, METER, NO.1
83145-32090

SV11..LE

 1
83145-32290

SV11..LE

W/DIGITAL SPEEDOMETER

 1
83159 - SWITCH, METER, NO.1
83159-32030

SV11..LE

W/DIGITAL SPEEDOMETER

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-32111

SV11..LE

 1
83243-32270

SV11..LE

 1
83310-32010

SV11..LE

W/DIGITAL SPEEDOMETER

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-32110

SV11..LE

 1
83244-32390

SV11..LE

 1
83410-32010

SV11..LE

W/DIGITAL SPEEDOMETER

 1
83910 - CLOCK ASSY
83910-32030

SV11..LE

 1
83910-32040

SV11..LE

W/DIGITAL SPEEDOMETER

 1
Common parts
90099-00909
90099-00910
90099-00929
90099-00963
93315-13010
93540-13014
93567-55020
