SV10R-UHPESW (1982)

Toyota Camry

Production Oct 1982 - Oct 1983
Engine 1SL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )

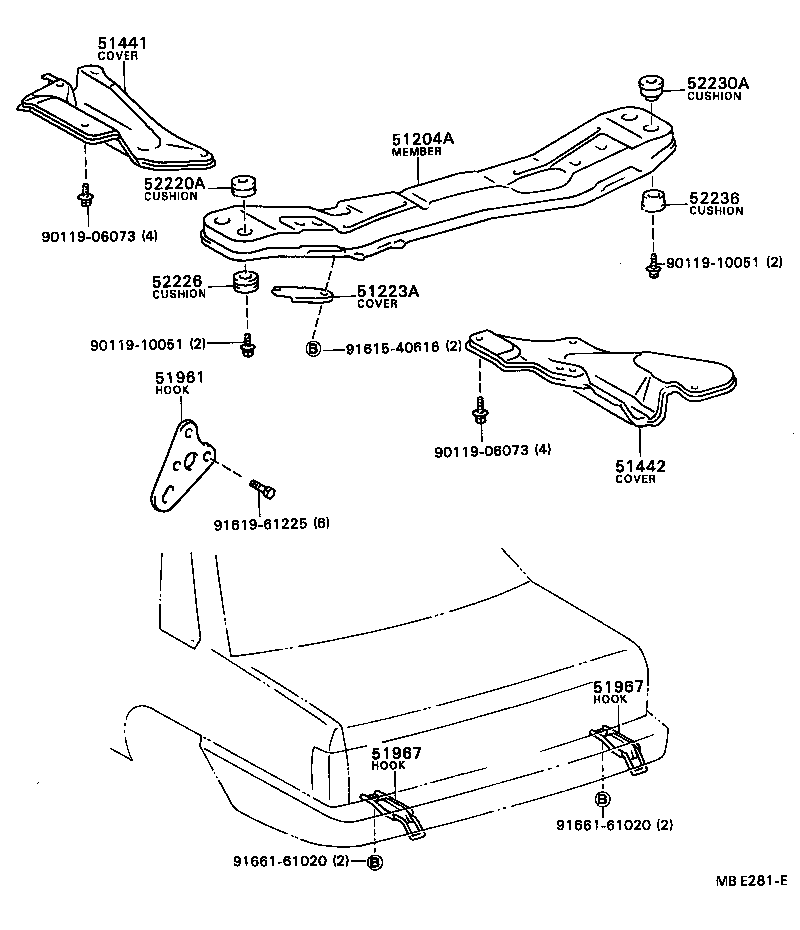

Click highlighted areas on diagram

diagram 51204A 51223A 51441 51442 51961 51967 51967 52220A 52226 52230A 52236 9011906073 9011906073 9011910051 9011910051 9161540616 9161961225 9166161020 9166161020
Part # Description Qty Price
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-32010

CV1#,SV1#

 1
51223A - COVER, ENGINE MOUNTING HOLE
51223-32010

CV1#,SV1#

 2
51441 - COVER, ENGINE UNDER, NO.1
51441-32010

SV1#

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-32020

CV10,SV1#..4FC

 1
51961 - HOOK, NO.1
51963-32010

CV10,SV1#

 2
52220A - CUSHION ASSY, CENTER MEMBER MOUNTING, FRONT UPPER
52220-32010

SV1#

 2
52226 - CUSHION, CENTER MEMBER MOUNTING, FRONT LOWER
52226-32010

SV1#

 2
52230A - CUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER
52230-32010

SV1#

 2
52236 - CUSHION, CENTER MEMBER MOUNTING, REAR LOWER
52236-32010

SV1#

 2
Common parts
90119-06073
90119-10051
91615-40616
91619-61225
91661-61020

(8301- )

Click highlighted areas on diagram

diagram 51204A 51223A 51441 51442 51961 52220A 52226 52230A 52236 9011906073 9011906073 9011910051 9011910051 9161540616 9161961225
Part # Description Qty Price
Common parts
90119-06073
90119-10051
91615-40616
91619-61225
