SV10R-UHPESW (1982)

Toyota Camry

Production Oct 1982 - Oct 1983
Engine 1SL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )4FC

Click highlighted areas on diagram

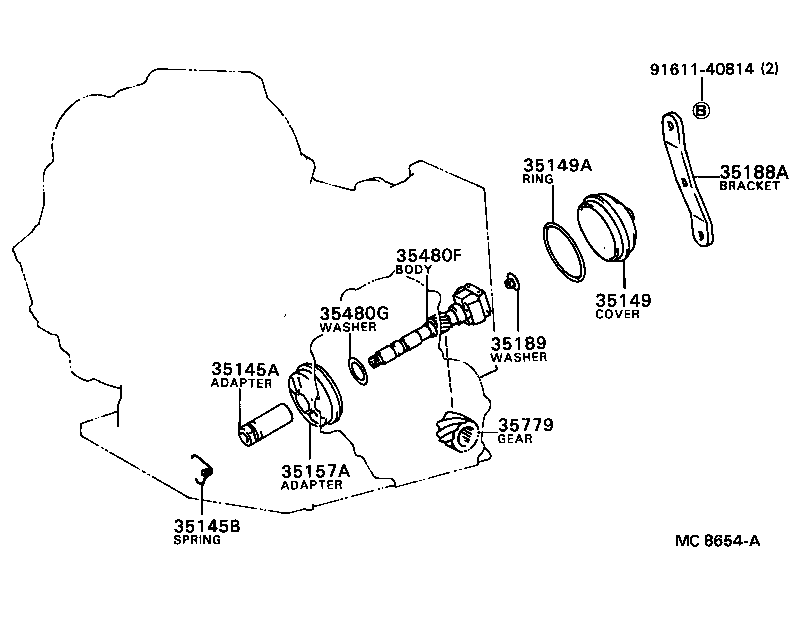

diagram 35145A 35145B 35149 35149A 35157A 35188A 35189 35480F 35480G 35779 9161140814
Part # Description Qty Price
35145A - ADAPTER, GOVERNOR PRESSURE
35145-32010

CV10,SV1#..4FC

 1
35145B - SPRING, TORSION(FOR GOVERNOR PRESSURE ADAPTER)
90508-18034

CV1#,SV1#..4FC

 1
35149 - COVER, GOVERNOR
35149-32010

CV1#,SV1#..4FC

 1
35149A - RING, O (FOR GOVERNOR COVER)
90301-67001

CV1#,SV1#..4FC

 1
35157A - ADAPTER, GOVERNOR BODY
35157-32010

CV10,SV1#..4FC

 1
35188A - BRACKET, GOVERNOR COVER
35188-32011

CV1#,SV1#..4FC

 1
35189 - WASHER, GOVERNOR THRUST, NO.1
35189-32010

CV1#,SV1#..4FC

 1
35480F - BODY ASSY, GOVERNOR
35480-32010

SV1#..4FC

 1
35480G - WASHER, PLATE (FOR GOVERNOR BODY)
90201-26004

CV10,SV1#..4FC

 1
35779 - GEAR, GOVERNOR DRIVE
35779-32010

CV1#,SV1#..4FC

 1
Common parts
91611-40814
