SV10R-UHMESW (1982)

Toyota Camry

Production Oct 1982 - Oct 1983
Engine 1SL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )

Click highlighted areas on diagram

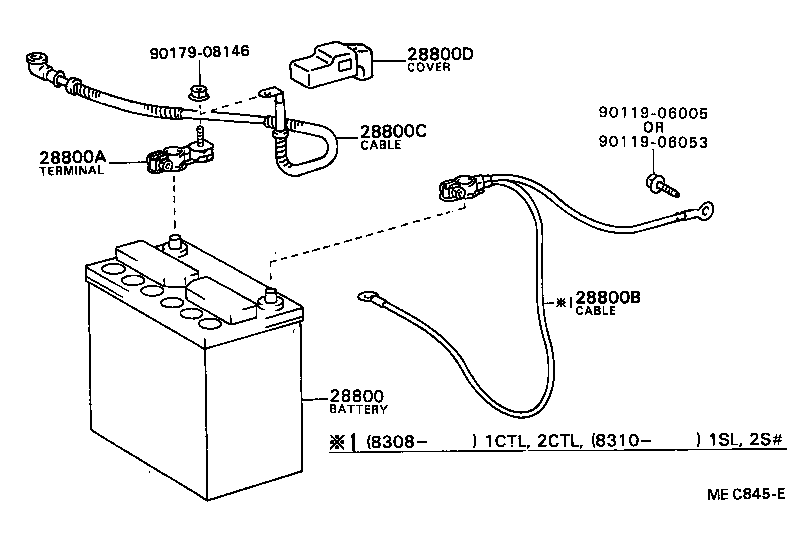

diagram 28800 28800A 28800B 28800C 28800D 9011906005 9011906053 9017908146
Part # Description Qty Price
28800 - BATTERY
28800-31031

1SL..SV10;2SELC..SV11..ARL

32C24L,N40L(12V 40AH-20HR)

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05023

1CTL,2CTL,1SL,2SE#..CV1#,SV1#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-32010

1SL,2SEL..SV1#

 1
Common parts
90119-06005
90119-06053
90179-08146

(8301- )

Click highlighted areas on diagram

diagram 28800 28800A 28800B 28800C 28800D 28897 9011906005 9017908146
Part # Description Qty Price
Common parts
90119-06005
90179-08146
