SV10R-UHMESW (1982)
Toyota Camry
Production
Oct 1982
-
Oct 1983
Engine
1SL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8210- )RHD

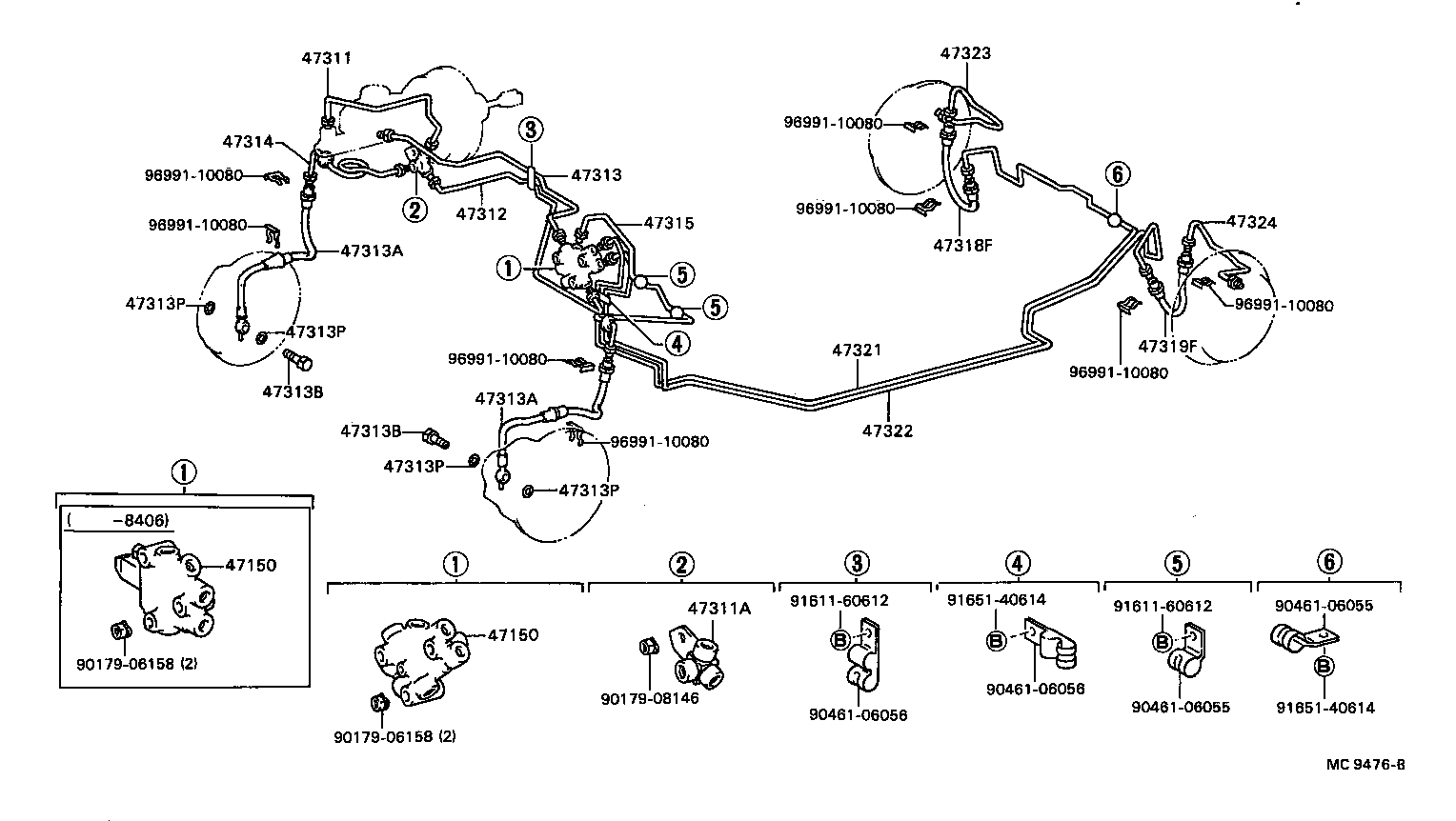

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-32010 |
CV10,SV1# |
1 | ||
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-32010 |
CV10,SV1# |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-32010 |
CV10,SV1#..RHD |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10122 |
CV1#,SV1#..RHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-32010 |
CV10,SV1#..RHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-32010 |
CV10,SV1#..RHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02429 |
CV1#,SV1# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02429 |
CV1#,SV1# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
CV1#,SV1# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
CV1#,SV1# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CV1#,SV1# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CV1#,SV1# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CV1#,SV1# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CV1#,SV1# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-32010 |
CV10,SV1#..RHD |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-32010 |
CV10,SV1#..RHD |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 96950-33455 |
CV1#,SV1# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 96950-33455 |
CV1#,SV1# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-32010 |
CV10,SV1# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-32010 |
CV10,SV1# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47324-32010 |
SV10 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47325-32010 |
SV10 |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 90461-06055 | ||||
| 90461-06056 | ||||
| 91611-60612 | ||||
| 91651-40614 | ||||
| 96991-10080 | ||||
(8301- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 90461-06055 | ||||
| 90461-06056 | ||||
| 90461-08569 | ||||
| 91611-40612 | ||||
| 91651-40614 | ||||
| 96991-10080 | ||||
