SV10R-UEPESW (1982)

Toyota Camry

Production Oct 1982 - Oct 1986
Engine 1SL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )

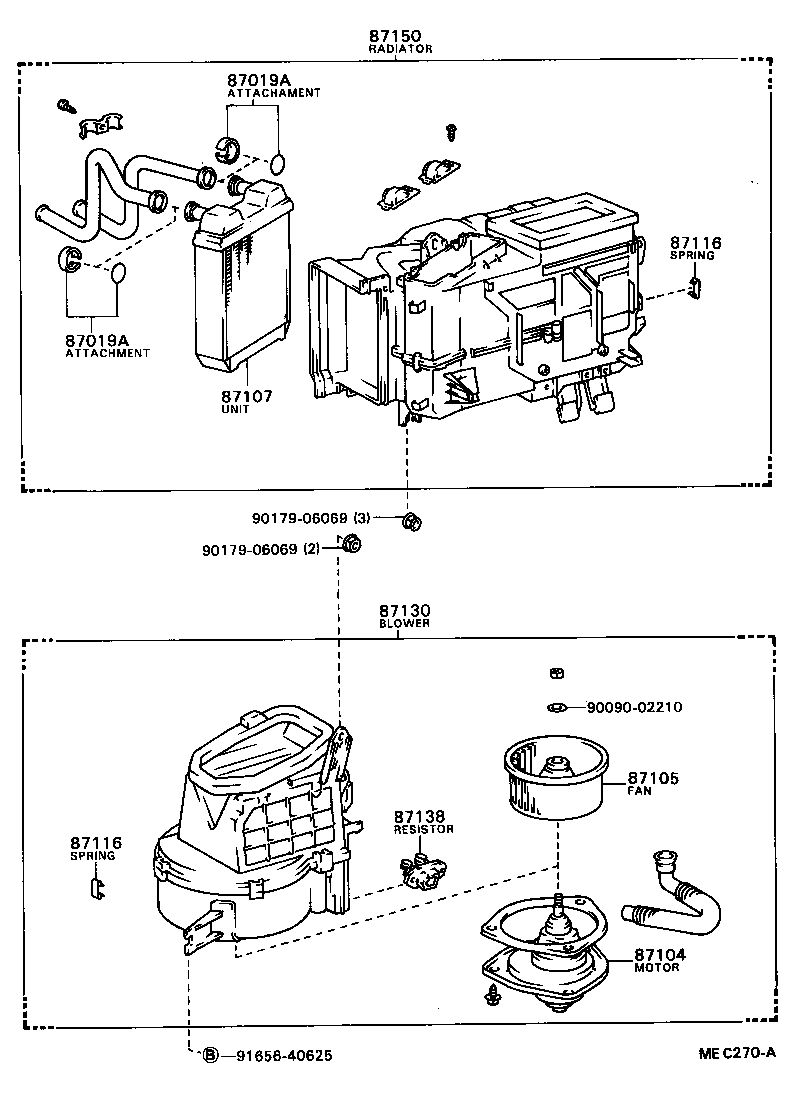

Click highlighted areas on diagram

diagram 87019A 87019A 87104 87105 87107 87116 87116 87130 87138 87150 9009002210 9017906069 9017906069 9165640625
Part # Description Qty Price
87019A - ATTACHMENT, HEATER
87019-32010

CV1#,SV1#

 2
87019A - ATTACHMENT, HEATER
87019-32010

CV1#,SV1#

 2
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-32010

CV1#,SV1#..RHD

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030

CV10,SV1#

 1
87105-14030

CV1#,SV1#..RHD

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-32010

CV10,SV1#..RHD

 1
87107-32040

CV1#,SV1#..RHD..EUG

 1
87116 - SPRING, HEATER CASE FASTENING
87116-14010

CV10,SV1#..RHD

 6
87116-14010

CV1#,SV1#..RHD

 4
87116 - SPRING, HEATER CASE FASTENING
87116-14010

CV10,SV1#..RHD

 6
87116-14010

CV1#,SV1#..RHD

 4
87130 - BLOWER ASSY, HEATER, FRONT
87130-32010

CV1#,SV1#..RHD

 1
87138 - RESISTOR, HEATER BLOWER
87138-32010

CV1#,SV1#..RHD

 1
87138-32010

CV10,SV1#

 1
87150 - RADIATOR ASSY, HEATER
87150-32040

CV1#,SV1#..RHD..EUG

 1
87150-32011

CV10,SV1#..RHD

 1
Common parts
90090-02210
90179-06069
91656-40625

(8301- )

Click highlighted areas on diagram

diagram 87019A 87104 87105 87107 87108C 87130 87138 87150 87290A 9017906069 9017906069 9165640625
Part # Description Qty Price
Common parts
90179-06069
91656-40625
