SV10R-UEMESW (1982)
Toyota Camry
Production
Oct 1982
-
Oct 1986
Engine
1SL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

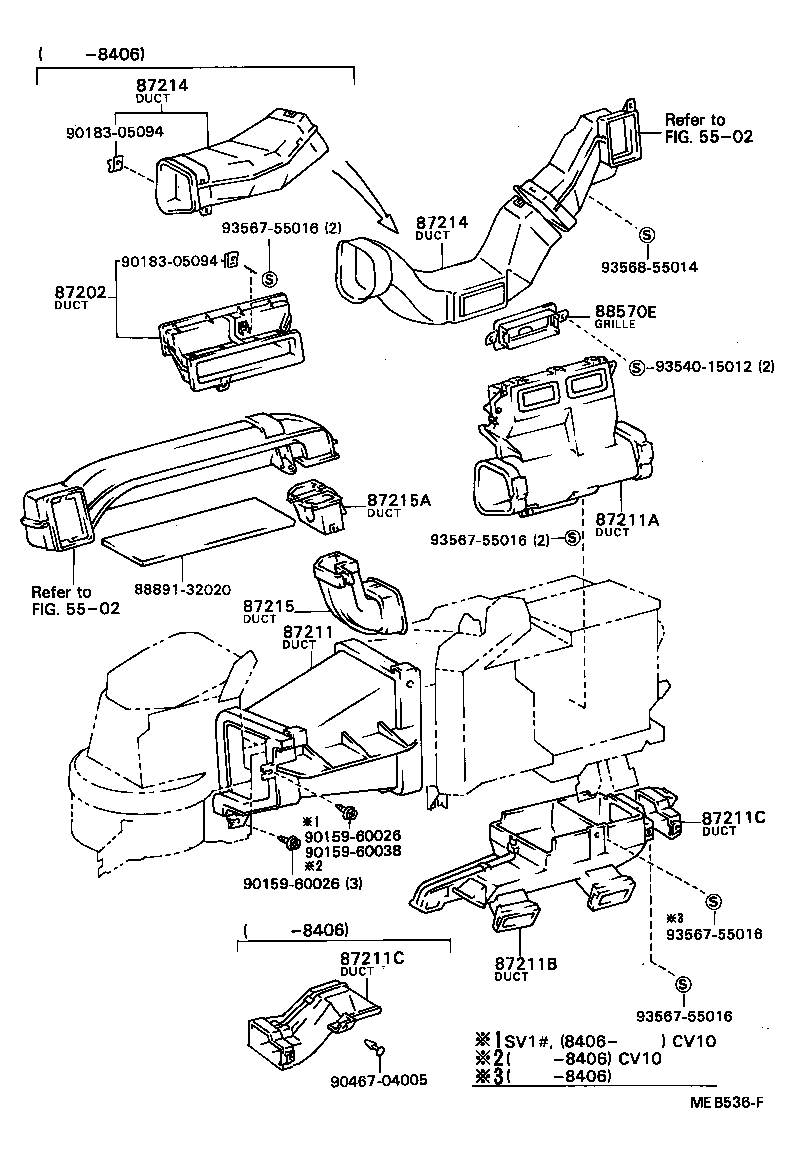

(8210- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87202 - DUCT, HEATER AIR | ||||
| 55089-32010 |
CV1#,SV1#..RHD |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-32010 |
CV1#,SV1#..RHD |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-32020 |
CV1#,SV1#..RHD |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87201-32030 |
CV1#,SV1#..RHD |
1 | ||
| 87211C - DUCT, AIR, NO.4 | ||||
| 87201-32040 |
CV10,SV1#..RHD |
1 | ||
| 87211-32010 |
CV1#,SV1#..RHD |
1 | ||
| 87211C - DUCT, AIR, NO.4 | ||||
| 87201-32040 |
CV10,SV1#..RHD |
1 | ||
| 87211-32010 |
CV1#,SV1#..RHD |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55085-32010 |
CV10,SV1#..RHD |
1 | ||
| 55085-32040 |
CV1#,SV1#..RHD |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55085-32010 |
CV10,SV1#..RHD |
1 | ||
| 55085-32040 |
CV1#,SV1#..RHD |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55086-32010 |
CV1#,SV1#..RHD |
1 | ||
| 87215A - DUCT, AIR, SIDE NO.2 LH | ||||
| 55087-32010 |
CV1#,SV1#..RHD |
1 | ||
| Common parts | ||||
| 88891-32020 | ||||
| 90159-60026 | ||||
| 90159-60038 | ||||
| 90183-05094 | ||||
| 90467-04005 | ||||
| 93540-15012 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5502 | ||||

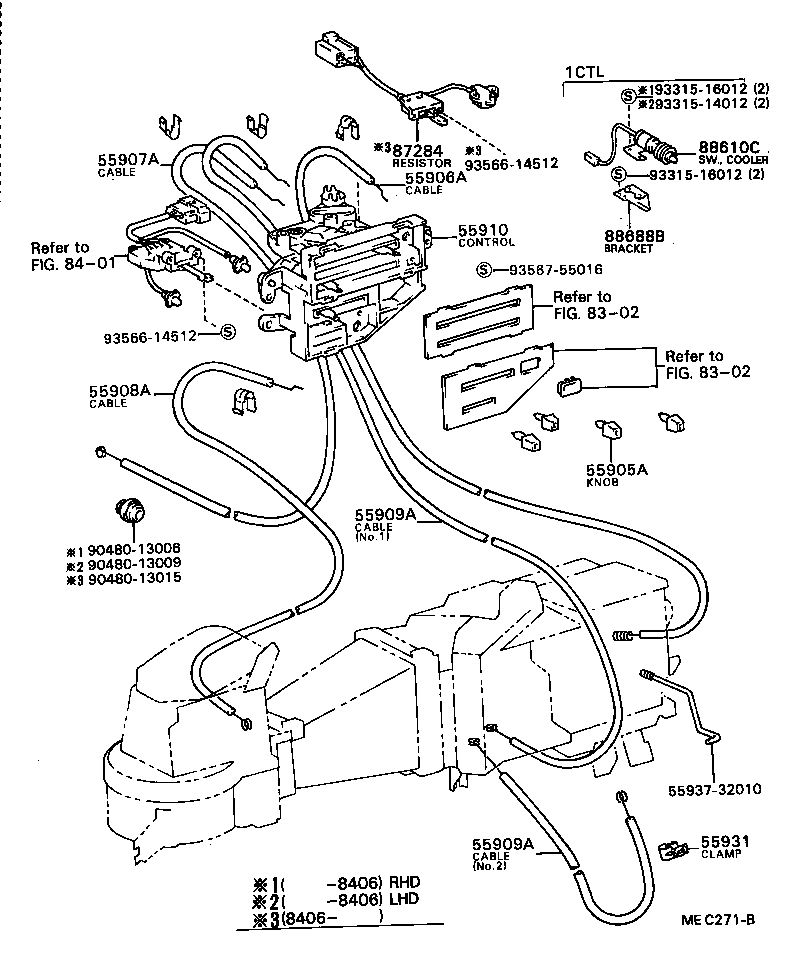

(8210- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12080 |
CV1#,SV1#..EUG,FRG *IPM |
4 | ||
| 55905-22070 |
CV1#,SV1# |
4 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-32011 |
CV1#,SV1#..RHD |
1 | ||
| 55906-32010 |
CV10,SV1#..RHD |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-32010 |
CV1#,SV1#..RHD |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-32010 |
CV1#,SV1#..RHD |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-32011 |
CV1#,SV1#..RHD NO.1 (DRIVER) |
1 | ||
| 55909-32020 |
CV1#,SV1#..RHD NO.2 (PASSENGER) |
1 | ||
| 55909-32010 |
CV10,SV1#..RHD NO.1 (DRIVER) |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-32011 |
CV1#,SV1#..RHD NO.1 (DRIVER) |
1 | ||
| 55909-32020 |
CV1#,SV1#..RHD NO.2 (PASSENGER) |
1 | ||
| 55909-32010 |
CV10,SV1#..RHD NO.1 (DRIVER) |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-32010 |
CV1#,SV1#..RHD |
1 | ||
| 55931 - CLAMP, HEATER CONTROL WIRE | ||||
| 55933-24010 |
CV1#,SV1#..RHD |
1 | ||
| Common parts | ||||
| 55937-32010 | ||||
| 90480-13006 | ||||
| 90480-13009 | ||||
| 90480-13015 | ||||
| 93315-14012 | ||||
| 93315-16012 | ||||
| 93566-14512 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
(8301- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 55937-32010 | ||||
| 90480-13009 | ||||
| 93566-14512 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
(8301- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60026 | ||||
| 90159-60038 | ||||
| 90183-05094 | ||||
| 90467-04005 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 5502 | ||||
