SV10R-UEMESW (1982)

Toyota Camry

Production Oct 1982 - Oct 1986
Engine 1SL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )

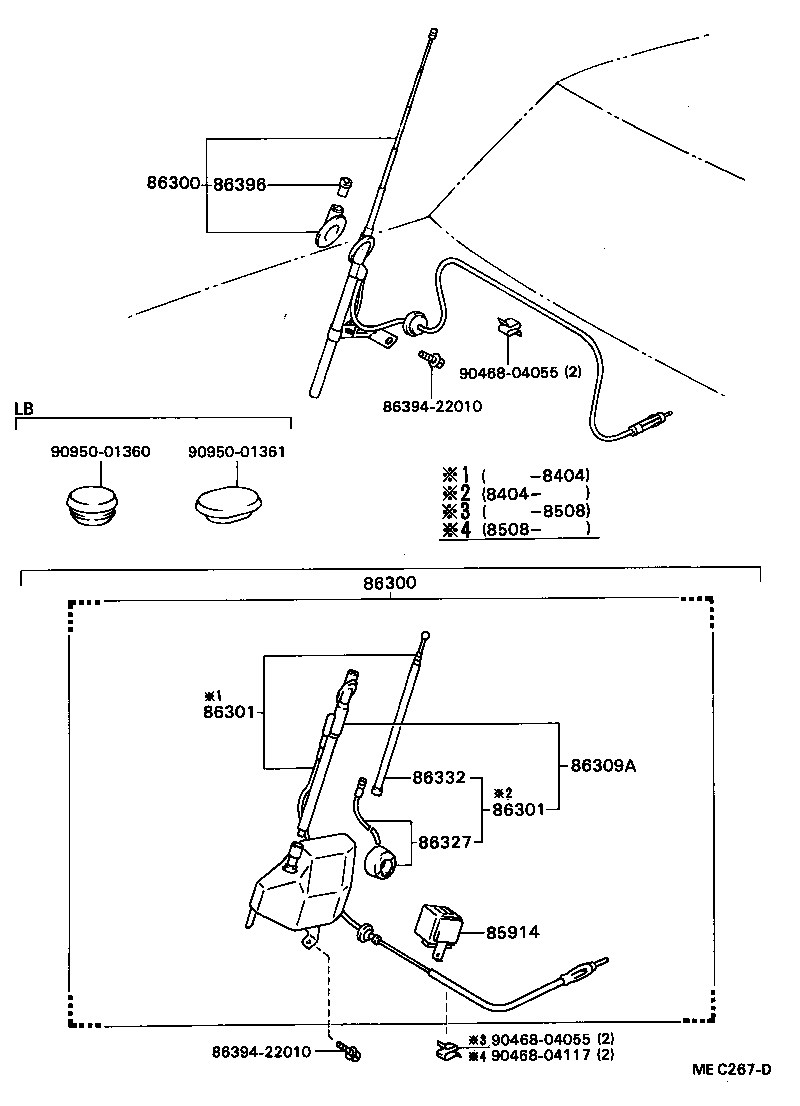

Click highlighted areas on diagram

diagram 85914 86300 86300 86301 86301 86309A 86327 86332 8639422010 8639422010 86396 9046804055 9046804055 9046804117 9095001360 9095001361
Part # Description Qty Price
85914 - RELAY, MOTOR ANTENNA CONTROL
85914-14020

CV1#,SV1#..RHD

 1
85914-14010

SV1#..RHD

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-32030

CV1#,SV1#..EUR

 1
86300-32060

CV1#,SV1#..RHD

MOTOR ANTENNA

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-32030

CV1#,SV1#..EUR

 1
86300-32060

CV1#,SV1#..RHD

MOTOR ANTENNA

 1
86301 - POLE SUB-ASSY, ANTENNA
86353-14330

CV1#,SV1#..RHD

 1
86301-32060

CV10,SV1#..RHD

 1
86301 - POLE SUB-ASSY, ANTENNA
86353-14330

CV1#,SV1#..RHD

 1
86301-32060

CV10,SV1#..RHD

 1
86309A - POLE SUB-ASSY, MOTOR ANTENNA
86309-32030

CV1#,SV1#..RHD

 1
86327 - CABLE, W/ANTENNA DRUM
86327-22210

CV1#,SV1#..RHD

 1
86332 - ROD, ANTENNA
86332-14321

CV1#,SV1#..RHD

 1
86396 - NUT, ANTENNA
86396-16020

CV1#,SV1#..EUR

 1
Common parts
86394-22010
90468-04055
90468-04117
90950-01360
90950-01361

(8301- )

Click highlighted areas on diagram

diagram 86300 86301 8639422010 8639532010 86396 9046804055 9095001056 9095001360 9095001361
Part # Description Qty Price
Common parts
86394-22010
86395-32010
90468-04055
90950-01056
90950-01360
90950-01361

(8301- )

Click highlighted areas on diagram

diagram 85914 85914 86300 86300 86301 86301 86301 86309A 86327 86332 86332 8639422010 8639422010 9046804055 9046804055
Part # Description Qty Price
Common parts
86394-22010
90468-04055
