SV10R-UEMESW (1982)
Toyota Camry
(8210-8406)4D

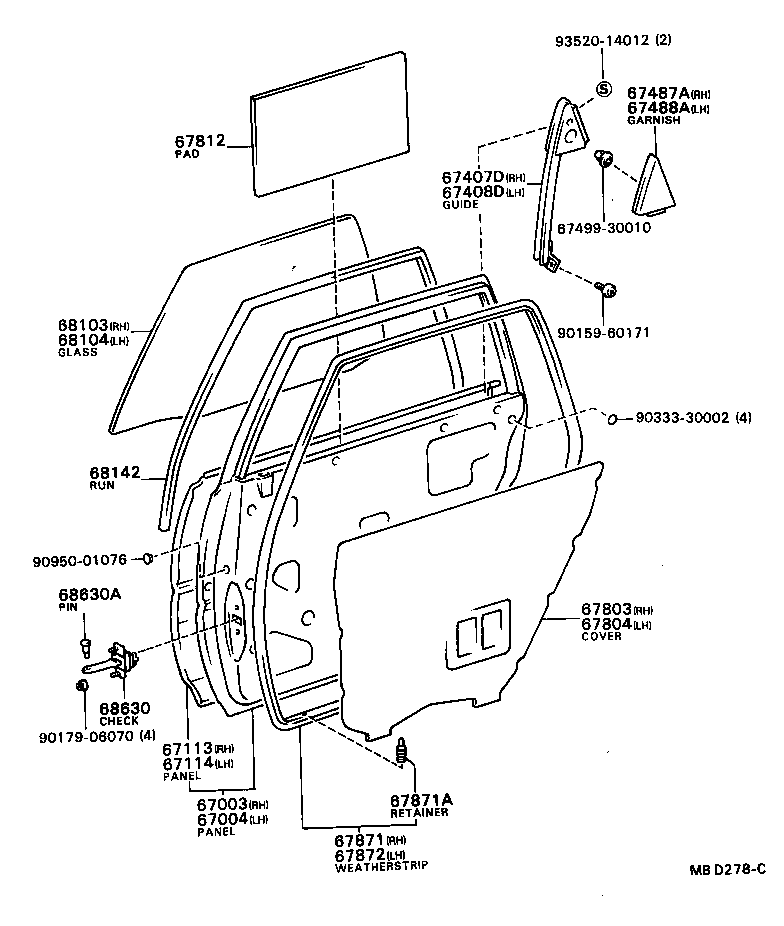

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-32020 |
CV1#,SV1#..4D |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-32020 |
CV1#,SV1#..4D |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-32020 |
CV1#,SV1#..EUR |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-32020 |
CV1#,SV1#..EUR |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-32020 |
CV1#,SV1# |
1 | ||
| 67407-32010 |
CV10,SV1#..4D |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-32020 |
CV1#,SV1# |
1 | ||
| 67408-32010 |
CV10,SV1#..4D |
1 | ||
| 67487A - GARNISH, REAR DOOR REAR GUIDE BRACKET, RH | ||||
| 67487-32010 |
CV10,SV1#..4D |
1 | ||
| 67488A - GARNISH, REAR DOOR REAR GUIDE BRACKET, LH | ||||
| 67488-32010 |
CV10,SV1#..4D |
1 | ||
| 67803 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-32010 |
SV1#..EUR |
1 | ||
| 67841-32020 |
CV1#,SV1#..EUR |
1 | ||
| 67841-32010 |
SV1# |
1 | ||
| 67804 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-32010 |
SV1#..EUR |
1 | ||
| 67842-32010 |
SV1# |
1 | ||
| 67842-32020 |
CV1#,SV1#..EUR |
1 | ||
| 67812 - PAD, REAR DOOR SILENCER | ||||
| 67811-32010 |
CV1#,SV1#..EUR |
2 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-32010 |
CV1#,SV1#..4D |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
CV1#,SV1# |
36 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-32010 |
CV1#,SV1#..4D |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-32010 |
CV1#,SV1#..4D *TT,T=3.5 |
1 | ||
| 68113-32020 |
CV1#,SV1#..(GL,GLI)..4D BRONZE,*TT,T=3.5 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-32020 |
CV1#,SV1#..(GL,GLI)..4D BRONZE,*TT,T=3.5 |
1 | ||
| 68114-32010 |
CV1#,SV1#..4D *TT,T=3.5 |
1 | ||
| 68142 - RUN, REAR DOOR GLASS | ||||
| 68142-32030 |
CV1#,SV1#..4D |
2 | ||
| 68142-32010 |
CV10,SV1#..4D |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-32010 |
CV10,SV1# |
2 | ||
| 68630-32020 |
CV1#,SV1# |
2 | ||
| 68630A - PIN(FOR REAR DOOR CHECK) | ||||
| 68617-22010 |
CV10,SV1# |
2 | ||
| 68617-90A00 |
CV1#,SV1# |
2 | ||
| 68617-12010 |
CV10,SV1# |
2 | ||
| Common parts | ||||
| 67499-30010 | ||||
| 90159-60171 | ||||
| 90179-06070 | ||||
| 90333-30002 | ||||
| 90950-01076 | ||||
| 93520-14012 | ||||
(8210-8406)5D ; (8210-8406)5D ; (8406- ) ; (8406- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-32020 |
CV1#,SV1#..4D |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-32020 |
CV1#,SV1#..4D |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-32020 |
CV1#,SV1#..EUR |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-32020 |
CV1#,SV1#..EUR |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-32020 |
CV1#,SV1# |
1 | ||
| 67407-32010 |
CV10,SV1#..4D |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-32020 |
CV1#,SV1# |
1 | ||
| 67408-32010 |
CV10,SV1#..4D |
1 | ||
| 67487C - SEAL, REAR DOOR REAR GUIDE, RH | ||||
| 67487-32020 |
CV1#,SV1# |
1 | ||
| 67488C - SEAL, REAR DOOR REAR GUIDE, LH | ||||
| 67488-32020 |
CV1#,SV1# |
1 | ||
| 67803 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-32010 |
SV1#..EUR |
1 | ||
| 67841-32020 |
CV1#,SV1#..EUR |
1 | ||
| 67841-32010 |
SV1# |
1 | ||
| 67804 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-32010 |
SV1#..EUR |
1 | ||
| 67842-32010 |
SV1# |
1 | ||
| 67842-32020 |
CV1#,SV1#..EUR |
1 | ||
| 67812 - PAD, REAR DOOR SILENCER | ||||
| 67811-32010 |
CV1#,SV1#..EUR |
2 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-32010 |
CV1#,SV1#..4D |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
CV1#,SV1# |
36 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-32010 |
CV1#,SV1#..4D |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-32010 |
CV1#,SV1#..4D *TT,T=3.5 |
1 | ||
| 68113-32020 |
CV1#,SV1#..(GL,GLI)..4D BRONZE,*TT,T=3.5 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-32020 |
CV1#,SV1#..(GL,GLI)..4D BRONZE,*TT,T=3.5 |
1 | ||
| 68114-32010 |
CV1#,SV1#..4D *TT,T=3.5 |
1 | ||
| 68142 - RUN, REAR DOOR GLASS | ||||
| 68142-32030 |
CV1#,SV1#..4D |
2 | ||
| 68142-32010 |
CV10,SV1#..4D |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-32010 |
CV10,SV1# |
2 | ||
| 68630-32020 |
CV1#,SV1# |
2 | ||
| 68630A - PIN(FOR REAR DOOR CHECK) | ||||
| 68617-22010 |
CV10,SV1# |
2 | ||
| 68617-90A00 |
CV1#,SV1# |
2 | ||
| 68617-12010 |
CV10,SV1# |
2 | ||
| Common parts | ||||
| 90159-60171 | ||||
| 90179-06070 | ||||
| 90333-30002 | ||||
| 90950-01076 | ||||
| 93520-14012 | ||||
(8210-8406)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3207003 |
SV1#..GL,GLI W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-3207004 |
SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3207105 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3207006 |
SV1#..GL,GLI W/O POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-3207104 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3207103 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-3224004 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3291304 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3224003 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-3291303 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-3291403 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-3291305 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3291405 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3291404 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3291405 |
CV11,SV1#..RHD W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3291404 |
CV11,SV1#..RHD W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3291403 |
CV11,SV1#..RHD W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3207003 |
SV1#..GL,GLI W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-3207004 |
SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3207105 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3207006 |
SV1#..GL,GLI W/O POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-3207104 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3207103 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-3224004 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3291304 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3224003 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-3291303 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-3291403 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-3291305 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3291405 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3291404 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3291405 |
CV11,SV1#..RHD W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3291404 |
CV11,SV1#..RHD W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3291403 |
CV11,SV1#..RHD W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3207003 |
SV1#..GL,GLI W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-3207004 |
SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3207105 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3207006 |
SV1#..GL,GLI W/O POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-3207104 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3207103 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-3224004 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3291304 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3224003 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-3291303 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-3291403 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-3291305 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3291405 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3291404 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3291405 |
CV11,SV1#..RHD W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3291404 |
CV11,SV1#..RHD W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3291403 |
CV11,SV1#..RHD W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-22010 |
CV10,SV1# TYPE A,L=19.5 |
18 | ||
| 67771-14010 |
CV10,SV1# TYPE B |
2 | ||
| 67771-14010 |
CV1#,SV1# |
2 | ||
| 67771-22010 |
CV1#,SV1# L=19.5 |
18 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-22010 |
CV10,SV1# TYPE A,L=19.5 |
18 | ||
| 67771-14010 |
CV10,SV1# TYPE B |
2 | ||
| 67771-14010 |
CV1#,SV1# |
2 | ||
| 67771-22010 |
CV1#,SV1# L=19.5 |
18 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-22010 |
CV10,SV1# TYPE A,L=19.5 |
18 | ||
| 67771-14010 |
CV10,SV1# TYPE B |
2 | ||
| 67771-14010 |
CV1#,SV1# |
2 | ||
| 67771-22010 |
CV1#,SV1# L=19.5 |
18 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-3207006 |
SV1#..GL,GLI W/O POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-3207004 |
SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3207003 |
SV1#..GL,GLI W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-3207105 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-3224003 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3207104 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3207103 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-3224004 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3291403 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3291404 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3291405 |
CV11,SV1#..RHD W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-3291305 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-3291304 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3291404 |
CV11,SV1#..RHD W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3291303 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3291403 |
CV11,SV1#..RHD W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3291405 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-3207006 |
SV1#..GL,GLI W/O POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-3207004 |
SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3207003 |
SV1#..GL,GLI W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-3207105 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-3224003 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3207104 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3207103 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-3224004 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3291403 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3291404 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3291405 |
CV11,SV1#..RHD W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-3291305 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-3291304 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3291404 |
CV11,SV1#..RHD W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3291303 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3291403 |
CV11,SV1#..RHD W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3291405 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-3207006 |
SV1#..GL,GLI W/O POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-3207004 |
SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3207003 |
SV1#..GL,GLI W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-3207105 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-3224003 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3207104 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3207103 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-3224004 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3291403 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3291404 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3291405 |
CV11,SV1#..RHD W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-3291305 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-3291304 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3291404 |
CV11,SV1#..RHD W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3291303 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3291403 |
CV11,SV1#..RHD W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3291405 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67730 - PANEL ASSY, REAR DOOR TRIM, UPPER RH | ||||
| 67730-3201004 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67730-3201016 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67730-3201003 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67730 - PANEL ASSY, REAR DOOR TRIM, UPPER RH | ||||
| 67730-3201004 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67730-3201016 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67730-3201003 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67740 - PANEL ASSY, REAR DOOR TRIM, UPPER LH | ||||
| 67740-3201003 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67740-3201016 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67740-3201004 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67740 - PANEL ASSY, REAR DOOR TRIM, UPPER LH | ||||
| 67740-3201003 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67740-3201016 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67740-3201004 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-20040 |
CV10,SV1# |
2 | ||
| 69751-2006004 |
CV1#,SV1# BLUE,BLUE,TRIM8# |
2 | ||
| 69751-2006005 |
CV1#,SV1# BEIGE,BEIGE,TRIM4# |
2 | ||
| 69751-2006003 |
CV1#,SV1# SHADOW GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-20040 |
CV10,SV1# |
2 | ||
| 69751-2006004 |
CV1#,SV1# BLUE,BLUE,TRIM8# |
2 | ||
| 69751-2006005 |
CV1#,SV1# BEIGE,BEIGE,TRIM4# |
2 | ||
| 69751-2006003 |
CV1#,SV1# SHADOW GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-20040 |
CV10,SV1# |
2 | ||
| 69751-2006004 |
CV1#,SV1# BLUE,BLUE,TRIM8# |
2 | ||
| 69751-2006005 |
CV1#,SV1# BEIGE,BEIGE,TRIM4# |
2 | ||
| 69751-2006003 |
CV1#,SV1# SHADOW GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-32020 |
CV10,SV1# |
2 | ||
| 68190-32010 |
CV1#,SV1# |
2 | ||
| 68190-32010 |
CV10,SV1# |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-32020 |
CV10,SV1# |
2 | ||
| 68190-32010 |
CV1#,SV1# |
2 | ||
| 68190-32010 |
CV10,SV1# |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-32020 |
CV10,SV1# |
2 | ||
| 68190-32010 |
CV1#,SV1# |
2 | ||
| 68190-32010 |
CV10,SV1# |
2 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 90168-40025 | ||||
| 90168-40048 | ||||
| 93540-44510 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 7404 | ||||
(8406- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3207003 |
SV1#..GL,GLI W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-3207004 |
SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3207105 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3207006 |
SV1#..GL,GLI W/O POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-3207104 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3207103 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-3224004 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3291304 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3224003 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-3291303 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-3291403 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-3291305 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3291405 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3291404 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3291405 |
CV11,SV1#..RHD W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3291404 |
CV11,SV1#..RHD W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3291403 |
CV11,SV1#..RHD W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3207003 |
SV1#..GL,GLI W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-3207004 |
SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3207105 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3207006 |
SV1#..GL,GLI W/O POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-3207104 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3207103 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-3224004 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3291304 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3224003 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-3291303 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-3291403 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-3291305 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3291405 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3291404 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3291405 |
CV11,SV1#..RHD W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3291404 |
CV11,SV1#..RHD W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3291403 |
CV11,SV1#..RHD W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3207003 |
SV1#..GL,GLI W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-3207004 |
SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3207105 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3207006 |
SV1#..GL,GLI W/O POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-3207104 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3207103 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-3224004 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3291304 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3224003 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-3291303 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-3291403 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-3291305 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3291405 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3291404 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3291405 |
CV11,SV1#..RHD W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3291404 |
CV11,SV1#..RHD W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3291403 |
CV11,SV1#..RHD W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-22010 |
CV10,SV1# TYPE A,L=19.5 |
18 | ||
| 67771-14010 |
CV10,SV1# TYPE B |
2 | ||
| 67771-14010 |
CV1#,SV1# |
2 | ||
| 67771-22010 |
CV1#,SV1# L=19.5 |
18 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-22010 |
CV10,SV1# TYPE A,L=19.5 |
18 | ||
| 67771-14010 |
CV10,SV1# TYPE B |
2 | ||
| 67771-14010 |
CV1#,SV1# |
2 | ||
| 67771-22010 |
CV1#,SV1# L=19.5 |
18 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-22010 |
CV10,SV1# TYPE A,L=19.5 |
18 | ||
| 67771-14010 |
CV10,SV1# TYPE B |
2 | ||
| 67771-14010 |
CV1#,SV1# |
2 | ||
| 67771-22010 |
CV1#,SV1# L=19.5 |
18 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-22010 |
CV10,SV1# TYPE A,L=19.5 |
18 | ||
| 67771-14010 |
CV10,SV1# TYPE B |
2 | ||
| 67771-14010 |
CV1#,SV1# |
2 | ||
| 67771-22010 |
CV1#,SV1# L=19.5 |
18 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-22010 |
CV10,SV1# TYPE A,L=19.5 |
18 | ||
| 67771-14010 |
CV10,SV1# TYPE B |
2 | ||
| 67771-14010 |
CV1#,SV1# |
2 | ||
| 67771-22010 |
CV1#,SV1# L=19.5 |
18 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-22010 |
CV10,SV1# TYPE A,L=19.5 |
18 | ||
| 67771-14010 |
CV10,SV1# TYPE B |
2 | ||
| 67771-14010 |
CV1#,SV1# |
2 | ||
| 67771-22010 |
CV1#,SV1# L=19.5 |
18 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-3207006 |
SV1#..GL,GLI W/O POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-3207004 |
SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3207003 |
SV1#..GL,GLI W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-3207105 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-3224003 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3207104 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3207103 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-3224004 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3291403 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3291404 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3291405 |
CV11,SV1#..RHD W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-3291305 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-3291304 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3291404 |
CV11,SV1#..RHD W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3291303 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3291403 |
CV11,SV1#..RHD W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3291405 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-3207006 |
SV1#..GL,GLI W/O POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-3207004 |
SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3207003 |
SV1#..GL,GLI W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-3207105 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-3224003 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3207104 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3207103 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-3224004 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3291403 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3291404 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3291405 |
CV11,SV1#..RHD W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-3291305 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-3291304 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3291404 |
CV11,SV1#..RHD W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3291303 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3291403 |
CV11,SV1#..RHD W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3291405 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-3207006 |
SV1#..GL,GLI W/O POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-3207004 |
SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3207003 |
SV1#..GL,GLI W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-3207105 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-3224003 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3207104 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3207103 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-3224004 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3291403 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3291404 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3291405 |
CV11,SV1#..RHD W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-3291305 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-3291304 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3291404 |
CV11,SV1#..RHD W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3291303 |
CV10,SV1#..GL,GLI W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3291403 |
CV11,SV1#..RHD W/O POWER WINDOW,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3291405 |
CV11,SV1#..GL,GLI W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-20040 |
CV10,SV1# |
2 | ||
| 69751-2006004 |
CV1#,SV1# BLUE,BLUE,TRIM8# |
2 | ||
| 69751-2006005 |
CV1#,SV1# BEIGE,BEIGE,TRIM4# |
2 | ||
| 69751-2006003 |
CV1#,SV1# SHADOW GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-20040 |
CV10,SV1# |
2 | ||
| 69751-2006004 |
CV1#,SV1# BLUE,BLUE,TRIM8# |
2 | ||
| 69751-2006005 |
CV1#,SV1# BEIGE,BEIGE,TRIM4# |
2 | ||
| 69751-2006003 |
CV1#,SV1# SHADOW GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-20040 |
CV10,SV1# |
2 | ||
| 69751-2006004 |
CV1#,SV1# BLUE,BLUE,TRIM8# |
2 | ||
| 69751-2006005 |
CV1#,SV1# BEIGE,BEIGE,TRIM4# |
2 | ||
| 69751-2006003 |
CV1#,SV1# SHADOW GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-32020 |
CV10,SV1# |
2 | ||
| 68190-32010 |
CV1#,SV1# |
2 | ||
| 68190-32010 |
CV10,SV1# |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-32020 |
CV10,SV1# |
2 | ||
| 68190-32010 |
CV1#,SV1# |
2 | ||
| 68190-32010 |
CV10,SV1# |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-32020 |
CV10,SV1# |
2 | ||
| 68190-32010 |
CV1#,SV1# |
2 | ||
| 68190-32010 |
CV10,SV1# |
2 | ||
| Common parts | ||||
| 67772-20021 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 7404 | ||||
(8301-8406)4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 67499-30010 | ||||
| 90159-60171 | ||||
| 90179-06070 | ||||
| 93520-14012 | ||||
(8301-8406)5D ; (8301-8406)5D ; (8406- ) ; (8406- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60171 | ||||
| 90179-06070 | ||||
| 93520-14012 | ||||
(8301-8408)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 67772-20021 | ||||
| 90168-40025 | ||||
| 90168-40048 | ||||
| 93540-44510 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 7404 | ||||
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 67772-20021 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
