SV10R-UEMESW (1982)

Toyota Camry

Production Oct 1982 - Oct 1986
Engine 1SL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8312- )1SL

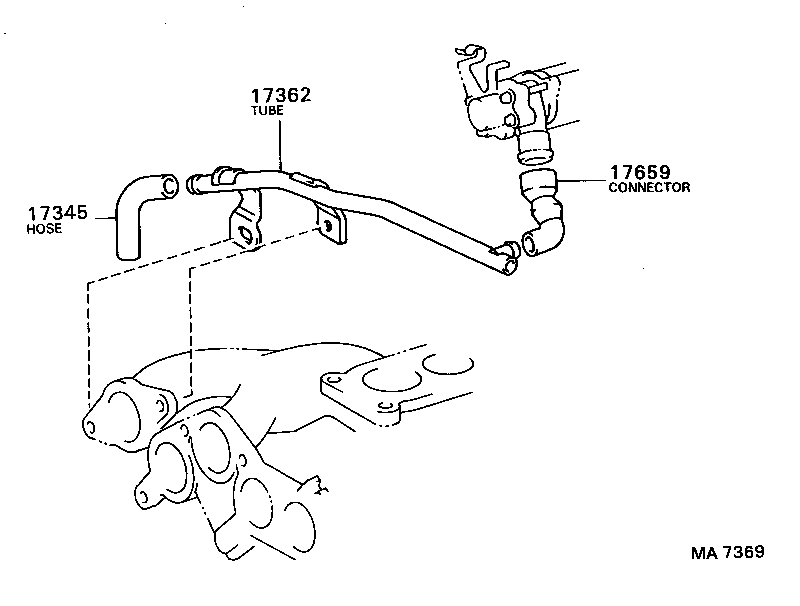

Click highlighted areas on diagram

diagram 17345 17362 17659
Part # Description Qty Price
17345 - HOSE, NO.5(FOR AIR INJECTION SYSTEM)
17342-63030

1SL..SV10

 1
17362 - TUBE, AIR, NO.2
17362-63010

1SL..SV10

 1
17659 - CONNECTOR, AIR(FOR AIR TUBE)
17659-63010

1SL..SV10

 1
