SV10L-UHPESW (1982)
Toyota Camry
(8210- )5D

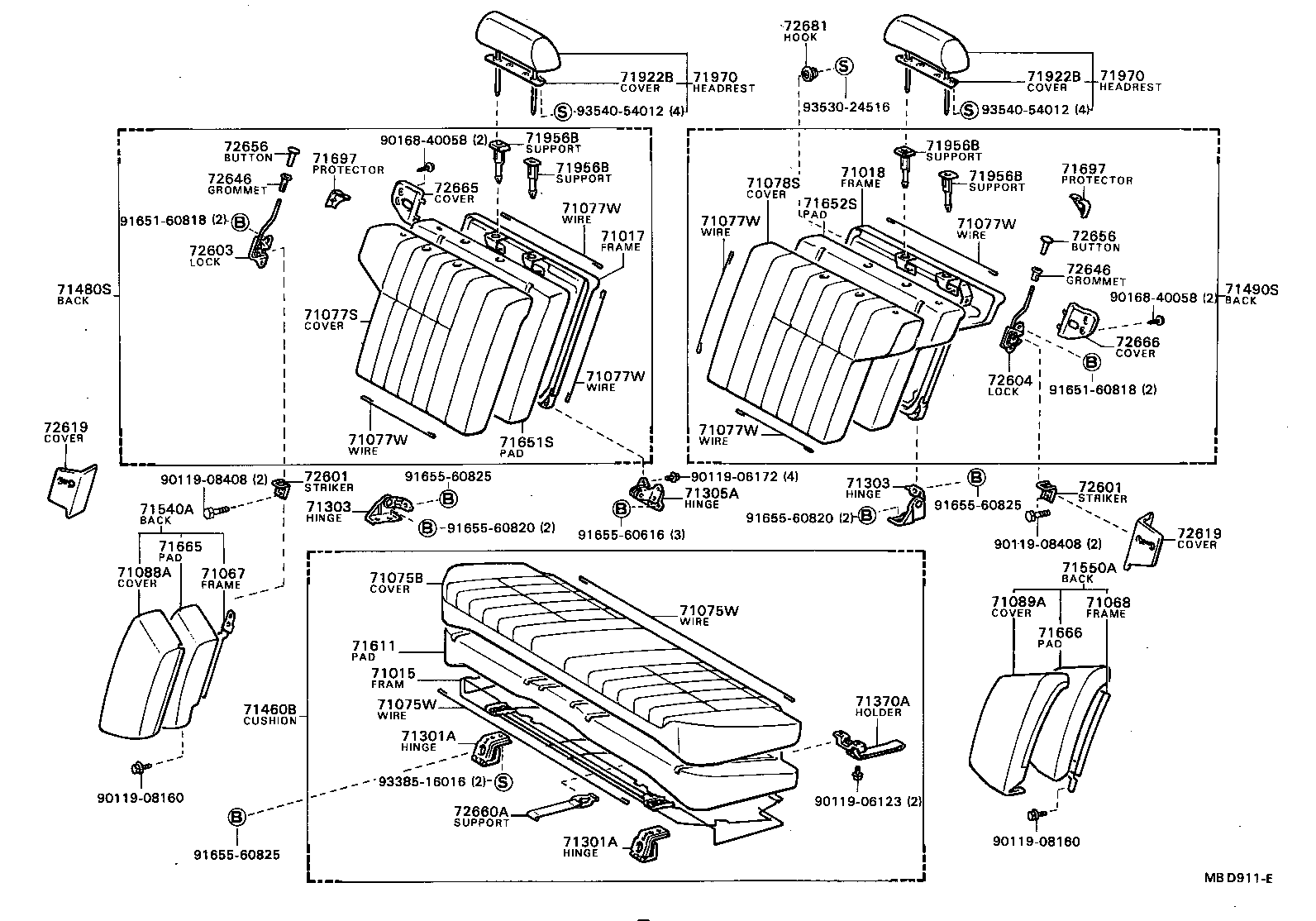

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-32020 |
CV1#,SV1#..5D |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-32010 |
CV1#,SV1#..5D |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-32010 |
CV1#,SV1#..5D |
1 | ||
| 71067 - FRAME SUB-ASSY, REAR SIDE SEAT BACK, RH | ||||
| 71067-32010 |
CV10,SV1#..5D |
1 | ||
| 71068 - FRAME SUB-ASSY, REAR SIDE SEAT BACK, LH | ||||
| 71068-32010 |
CV10,SV1#..5D |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-3215006 |
SV1#..(GL,GLI)..5D FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-3215003 |
SV1#..(GL,GLI)..5D FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71075-3215004 |
SV1#..(GL,GLI)..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 90580-20097 |
CV1#,SV1#..5D WD=2.0,L=1080 |
2 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 90580-20097 |
CV1#,SV1#..5D WD=2.0,L=1080 |
2 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-3217003 |
SV1#..(GL,GLI)..5D W/HEADREST,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-3216006 |
SV1#..(GL,GLI)..5D..EUR W/O HEADREST,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-3216004 |
SV1#..(GL,GLI)..5D..EUR W/O HEADREST,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-3217006 |
SV1#..(GL,GLI)..5D W/HEADREST,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-3217004 |
SV1#..(GL,GLI)..5D W/HEADREST,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-3216003 |
SV1#..(GL,GLI)..5D..EUR W/O HEADREST,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20106 |
CV1#,SV1#..5D WD=2.0,L=530 |
2 | ||
| 90580-20012 |
CV1#,SV1#..5D WD=2.0,L=420 |
2 | ||
| 90580-20032 |
CV1#,SV1#..5D WD=2.0,L=350 |
2 | ||
| 90580-20051 |
CV1#,SV1#..5D WD=2.0,L=550 |
2 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20106 |
CV1#,SV1#..5D WD=2.0,L=530 |
2 | ||
| 90580-20012 |
CV1#,SV1#..5D WD=2.0,L=420 |
2 | ||
| 90580-20032 |
CV1#,SV1#..5D WD=2.0,L=350 |
2 | ||
| 90580-20051 |
CV1#,SV1#..5D WD=2.0,L=550 |
2 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20106 |
CV1#,SV1#..5D WD=2.0,L=530 |
2 | ||
| 90580-20012 |
CV1#,SV1#..5D WD=2.0,L=420 |
2 | ||
| 90580-20032 |
CV1#,SV1#..5D WD=2.0,L=350 |
2 | ||
| 90580-20051 |
CV1#,SV1#..5D WD=2.0,L=550 |
2 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20106 |
CV1#,SV1#..5D WD=2.0,L=530 |
2 | ||
| 90580-20012 |
CV1#,SV1#..5D WD=2.0,L=420 |
2 | ||
| 90580-20032 |
CV1#,SV1#..5D WD=2.0,L=350 |
2 | ||
| 90580-20051 |
CV1#,SV1#..5D WD=2.0,L=550 |
2 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20106 |
CV1#,SV1#..5D WD=2.0,L=530 |
2 | ||
| 90580-20012 |
CV1#,SV1#..5D WD=2.0,L=420 |
2 | ||
| 90580-20032 |
CV1#,SV1#..5D WD=2.0,L=350 |
2 | ||
| 90580-20051 |
CV1#,SV1#..5D WD=2.0,L=550 |
2 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20106 |
CV1#,SV1#..5D WD=2.0,L=530 |
2 | ||
| 90580-20012 |
CV1#,SV1#..5D WD=2.0,L=420 |
2 | ||
| 90580-20032 |
CV1#,SV1#..5D WD=2.0,L=350 |
2 | ||
| 90580-20051 |
CV1#,SV1#..5D WD=2.0,L=550 |
2 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-3208006 |
SV1#..(GL,GLI)..5D..EUR W/O HEADREST,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-3208004 |
SV1#..(GL,GLI)..5D..EUR W/O HEADREST,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-3209003 |
SV1#..(GL,GLI)..5D W/HEADREST,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71078-3209004 |
SV1#..(GL,GLI)..5D W/HEADREST,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-3209006 |
SV1#..(GL,GLI)..5D W/HEADREST,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-3208003 |
SV1#..(GL,GLI)..5D..EUR W/O HEADREST,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71088A - COVER SUB-ASSY, REAR SIDE SEAT BACK, RH | ||||
| 71088-3207003 |
SV1#..(GL,GLI)..5D FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71088-3207006 |
SV1#..(GL,GLI)..5D FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71088-3207004 |
SV1#..(GL,GLI)..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71089A - COVER SUB-ASSY, REAR SIDE SEAT BACK, LH | ||||
| 71089-3207006 |
SV1#..(GL,GLI)..5D FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71089-3207004 |
SV1#..(GL,GLI)..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71089-3207003 |
SV1#..(GL,GLI)..5D FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71301A - HINGE SUB-ASSY, REAR SEAT CUSHION | ||||
| 71301-32010 |
CV1#,SV1#..5D |
2 | ||
| 71301A - HINGE SUB-ASSY, REAR SEAT CUSHION | ||||
| 71301-32010 |
CV1#,SV1#..5D |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-32010 |
CV1#,SV1#..5D RH |
1 | ||
| 71304-32010 |
CV1#,SV1#..5D LH |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-32010 |
CV1#,SV1#..5D RH |
1 | ||
| 71304-32010 |
CV1#,SV1#..5D LH |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-32010 |
CV1#,SV1#..5D |
1 | ||
| 71370A - HOLDER ASSY, REAR SEAT CUSHION | ||||
| 71370-3201004 |
SV1#..5D BLUE,BLUE,TRIM8# |
1 | ||
| 71370-3201006 |
SV1#..5D BROWN,BROWN,TRIM4# |
1 | ||
| 71370-3201003 |
SV1#..5D GRAY,GRAY,TRIM1# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-3215006 |
SV1#..(GL,GLI)..5D FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71460-3215003 |
SV1#..(GL,GLI)..5D FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71460-3215004 |
SV1#..(GL,GLI)..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-3216003 |
SV1#..(GL,GLI)..5D..EUR W/O HEADREST,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71480-3216006 |
SV1#..(GL,GLI)..5D..EUR W/O HEADREST,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71480-3217003 |
SV1#..(GL,GLI)..5D W/HEADREST,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71480-3217004 |
SV1#..(GL,GLI)..5D W/HEADREST,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-3217006 |
SV1#..(GL,GLI)..5D W/HEADREST,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71480-3216004 |
SV1#..(GL,GLI)..5D..EUR W/O HEADREST,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-3209004 |
SV1#..(GL,GLI)..5D W/HEADREST,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490-3208004 |
SV1#..(GL,GLI)..5D..EUR W/O HEADREST,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490-3209006 |
SV1#..(GL,GLI)..5D W/HEADREST,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71490-3208003 |
SV1#..(GL,GLI)..5D..EUR W/O HEADREST,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71490-3208006 |
SV1#..(GL,GLI)..5D..EUR W/O HEADREST,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71490-3209003 |
SV1#..(GL,GLI)..5D W/HEADREST,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-3207004 |
SV1#..(GL,GLI)..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71540-3207006 |
SV1#..(GL,GLI)..5D FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71540-3207003 |
SV1#..(GL,GLI)..5D FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-3207003 |
SV1#..(GL,GLI)..5D FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71550-3207006 |
SV1#..(GL,GLI)..5D FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71550-3207004 |
SV1#..(GL,GLI)..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-32030 |
SV1#..5D |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-32010 |
SV1#..5D |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-32010 |
SV1#..5D |
1 | ||
| 71665 - PAD, REAR SEAT BACK SIDE, RH | ||||
| 71665-32010 |
CV10,SV1#..5D |
1 | ||
| 71666 - PAD, REAR SEAT BACK SIDE, LH | ||||
| 71666-32010 |
CV10,SV1#..5D |
1 | ||
| 71697 - PROTECTOR, REAR SEAT BACK EDGE | ||||
| 71697-32010 |
CV1#,SV1#..5D |
2 | ||
| 71697 - PROTECTOR, REAR SEAT BACK EDGE | ||||
| 71697-32010 |
CV1#,SV1#..5D |
2 | ||
| 71922B - COVER, REAR SEAT HEADREST UNDER | ||||
| 71952-3201003 |
SV1#..(GL,GLI)..5D GRAY,GRAY,TRIM1# |
2 | ||
| 71952-3201006 |
SV1#..(GL,GLI)..5D BROWN,BROWN,TRIM4# |
2 | ||
| 71952-3201004 |
SV1#..(GL,GLI)..5D BLUE,BLUE,TRIM8# |
2 | ||
| 71922B - COVER, REAR SEAT HEADREST UNDER | ||||
| 71952-3201003 |
SV1#..(GL,GLI)..5D GRAY,GRAY,TRIM1# |
2 | ||
| 71952-3201006 |
SV1#..(GL,GLI)..5D BROWN,BROWN,TRIM4# |
2 | ||
| 71952-3201004 |
SV1#..(GL,GLI)..5D BLUE,BLUE,TRIM8# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006004 |
CV1#,SV1#..(GL,GLI)..5D W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001025 |
SV1#..(GL,GLI)..5D W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
CV1#,SV1#..(GL,GLI)..5D W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006013 |
CV1#,SV1#..(GL,GLI)..5D W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006025 |
SV1#..(GL,GLI)..5D W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001013 |
CV1#,SV1#..(GL,GLI)..5D W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006004 |
CV1#,SV1#..(GL,GLI)..5D W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001025 |
SV1#..(GL,GLI)..5D W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
CV1#,SV1#..(GL,GLI)..5D W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006013 |
CV1#,SV1#..(GL,GLI)..5D W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006025 |
SV1#..(GL,GLI)..5D W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001013 |
CV1#,SV1#..(GL,GLI)..5D W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006004 |
CV1#,SV1#..(GL,GLI)..5D W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001025 |
SV1#..(GL,GLI)..5D W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
CV1#,SV1#..(GL,GLI)..5D W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006013 |
CV1#,SV1#..(GL,GLI)..5D W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006025 |
SV1#..(GL,GLI)..5D W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001013 |
CV1#,SV1#..(GL,GLI)..5D W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006004 |
CV1#,SV1#..(GL,GLI)..5D W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001025 |
SV1#..(GL,GLI)..5D W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
CV1#,SV1#..(GL,GLI)..5D W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006013 |
CV1#,SV1#..(GL,GLI)..5D W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006025 |
SV1#..(GL,GLI)..5D W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001013 |
CV1#,SV1#..(GL,GLI)..5D W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71940-3204004 |
SV1#..(GL,GLI)..5D FB,BLUE,BLUE,TRIM8# |
2 | ||
| 71940-3204003 |
SV1#..(GL,GLI)..5D FB,GRAY,GRAY,TRIM1# |
2 | ||
| 71940-3204006 |
SV1#..(GL,GLI)..5D FB,BROWN,BROWN,TRIM4# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71940-3204004 |
SV1#..(GL,GLI)..5D FB,BLUE,BLUE,TRIM8# |
2 | ||
| 71940-3204003 |
SV1#..(GL,GLI)..5D FB,GRAY,GRAY,TRIM1# |
2 | ||
| 71940-3204006 |
SV1#..(GL,GLI)..5D FB,BROWN,BROWN,TRIM4# |
2 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-16040 |
CV1#,SV1#..5D |
2 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-16040 |
CV1#,SV1#..5D |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-32020 |
CV1#,SV1#..5D |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-32020 |
CV1#,SV1#..5D |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72615-3201003 |
SV1#..5D RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72616-3201006 |
SV1#..5D LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72615-3201006 |
SV1#..5D RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72616-3201004 |
CV1#,SV1#..5D LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72616-3201003 |
SV1#..5D LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72615-3201004 |
CV1#,SV1#..5D RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72615-3201003 |
SV1#..5D RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72616-3201006 |
SV1#..5D LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72615-3201006 |
SV1#..5D RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72616-3201004 |
CV1#,SV1#..5D LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72616-3201003 |
SV1#..5D LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72615-3201004 |
CV1#,SV1#..5D RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72655-2002014 |
CV1#,SV1#..5D BLUE,BLUE,TRIM8# |
2 | ||
| 72655-2002015 |
SV1#..5D BEIGE,BEIGE,TRIM4# |
2 | ||
| 72655-2002013 |
CV1#,SV1#..5D GRAY,GRAY,TRIM1# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72655-2002014 |
CV1#,SV1#..5D BLUE,BLUE,TRIM8# |
2 | ||
| 72655-2002015 |
SV1#..5D BEIGE,BEIGE,TRIM4# |
2 | ||
| 72655-2002013 |
CV1#,SV1#..5D GRAY,GRAY,TRIM1# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001013 |
CV1#,SV1#..5D GRAY,GRAY,TRIM1# |
2 | ||
| 72656-2001014 |
CV1#,SV1#..5D BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001015 |
SV1#..5D BEIGE,BEIGE,TRIM4# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001013 |
CV1#,SV1#..5D GRAY,GRAY,TRIM1# |
2 | ||
| 72656-2001014 |
CV1#,SV1#..5D BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001015 |
SV1#..5D BEIGE,BEIGE,TRIM4# |
2 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-3201003 |
SV1#..5D GRAY,GRAY,TRIM1# |
1 | ||
| 72660-3201004 |
CV1#,SV1#..5D BLUE,BLUE,TRIM8# |
1 | ||
| 72660-3201006 |
SV1#..5D BROWN,BROWN,TRIM4# |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-3201004 |
CV1#,SV1#..5D BLUE,BLUE,TRIM8# |
1 | ||
| 72665-3201003 |
SV1#..5D GRAY,GRAY,TRIM1# |
1 | ||
| 72665-3201006 |
SV1#..5D BROWN,BROWN,TRIM4# |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-3201004 |
CV1#,SV1#..5D BLUE,BLUE,TRIM8# |
1 | ||
| 72666-3201006 |
SV1#..5D BROWN,BROWN,TRIM4# |
1 | ||
| 72666-3201003 |
SV1#..5D GRAY,GRAY,TRIM1# |
1 | ||
| 72681 - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72681-1601013 |
SV1#..5D GRAY,GRAY,TRIM1# |
1 | ||
| 72681-1601006 |
SV1#..5D BROWN,BROWN,TRIM4# |
1 | ||
| 72681-1601004 |
CV1#,SV1#..5D BLUE,BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-06123 | ||||
| 90119-06172 | ||||
| 90119-08160 | ||||
| 90119-08408 | ||||
| 90168-40058 | ||||
| 91651-60818 | ||||
| 91655-60616 | ||||
| 91655-60820 | ||||
| 91655-60825 | ||||
| 93385-16016 | ||||
| 93530-24516 | ||||
| 93540-54012 | ||||
(8301- )5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06123 | ||||
| 90119-06172 | ||||
| 90119-08160 | ||||
| 90119-08408 | ||||
| 90168-40058 | ||||
| 91651-60818 | ||||
| 91655-60616 | ||||
| 91655-60820 | ||||
| 91655-60825 | ||||
| 93385-16016 | ||||
| 93530-24516 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
