SV10L-UHMNSW (1982)
Toyota Camry
(8210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

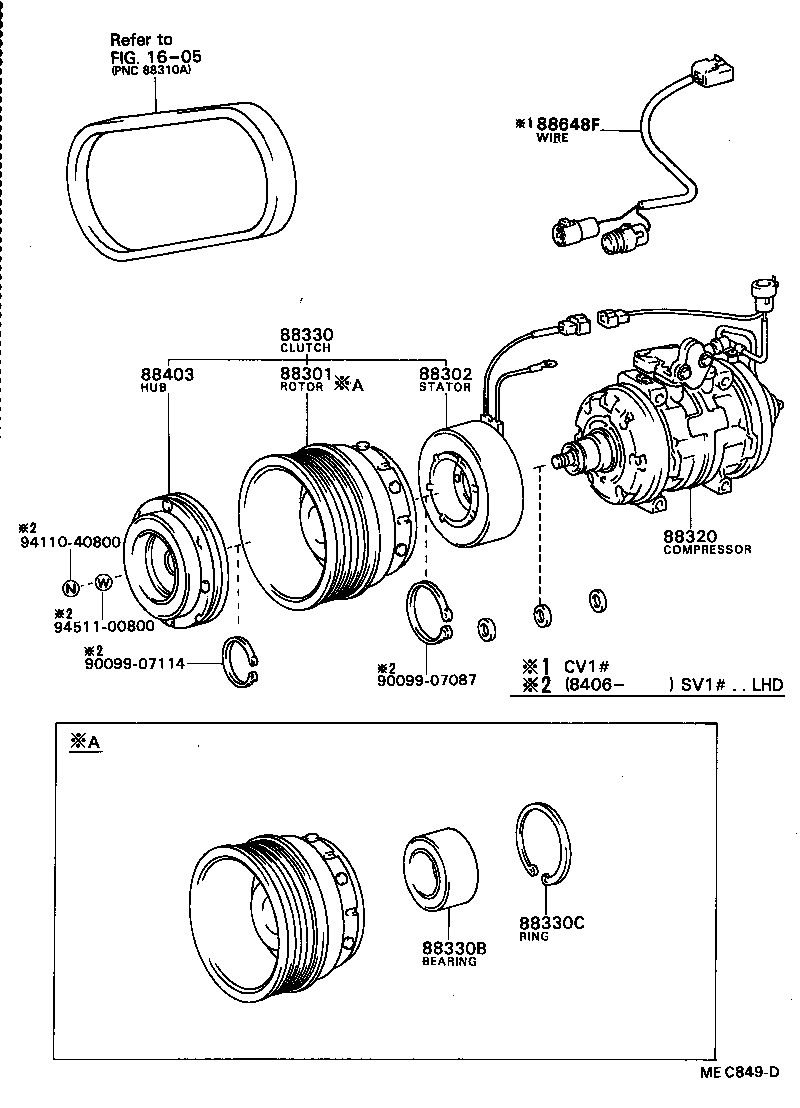

| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-32010 |
CV1#,SV1# |
1 | ||
| 88412-32010 |
SV11..ARL;CV10,SV1#..EUG |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-32010 |
SV11..ARL;CV10,SV1#..EUG |
1 | ||
| 88411-32010 |
CV1#,SV1# |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-32040 |
SV1#..LHD..EUG |
1 | ||
| 88320-32040 |
SV1#..LHD |
1 | ||
| 88320-32021 |
SV1#..LHD..EUG |
1 | ||
| 88320-32060 |
SV1#..LHD |
1 | ||
| 88320-32020 |
SV10..LHD |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-32010 |
SV11..ARL;CV10,SV1#..EUG |
1 | ||
| 88410-32010 |
CV1#,SV1# |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
SV11..ARL;CV10,SV1#..EUG |
1 | ||
| 90099-10133 |
CV1#,SV1# |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07118 |
CV1#,SV1# |
1 | ||
| 90099-07118 |
SV11..ARL;CV10,SV1#..EUG |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-14030 |
CV1#,SV1# |
1 | ||
| 88403-14030 |
SV11..ARL;CV10,SV1#..EUG |
1 | ||
| Common parts | ||||
| 90099-07087 | ||||
| 90099-07114 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| Linked diagrams | ||||
| 1605 | ||||

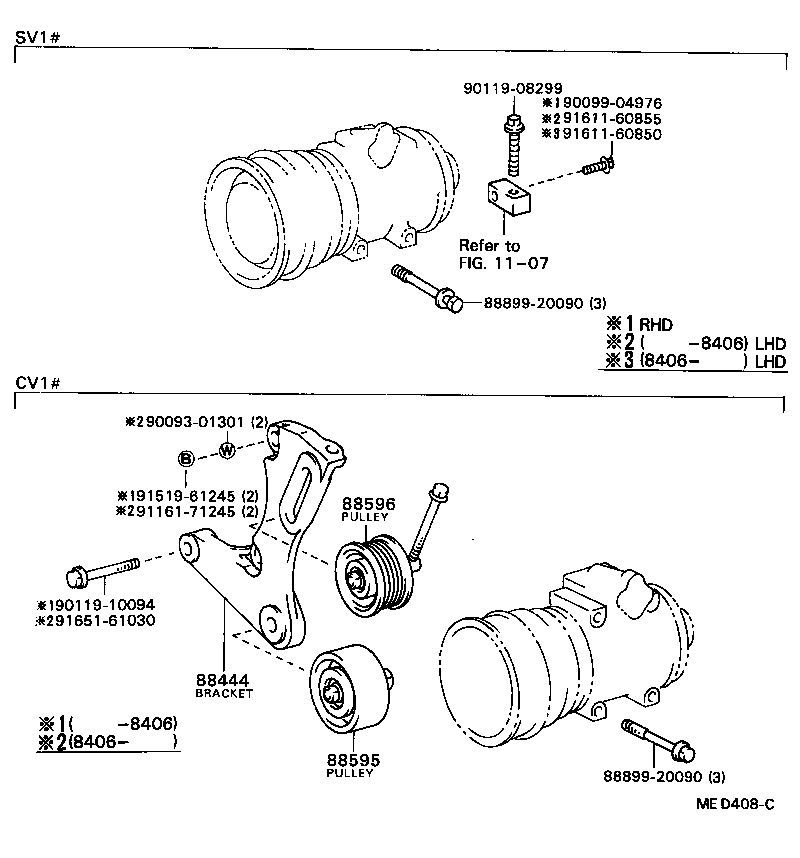

(8210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88899-20090 | ||||
| 90093-01301 | ||||
| 90099-04976 | ||||
| 90119-08299 | ||||
| 90119-10094 | ||||
| 91161-71245 | ||||
| 91519-61245 | ||||
| 91611-60850 | ||||
| 91611-60855 | ||||
| 91651-61030 | ||||
| Linked diagrams | ||||
| 1107 | ||||
(8210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

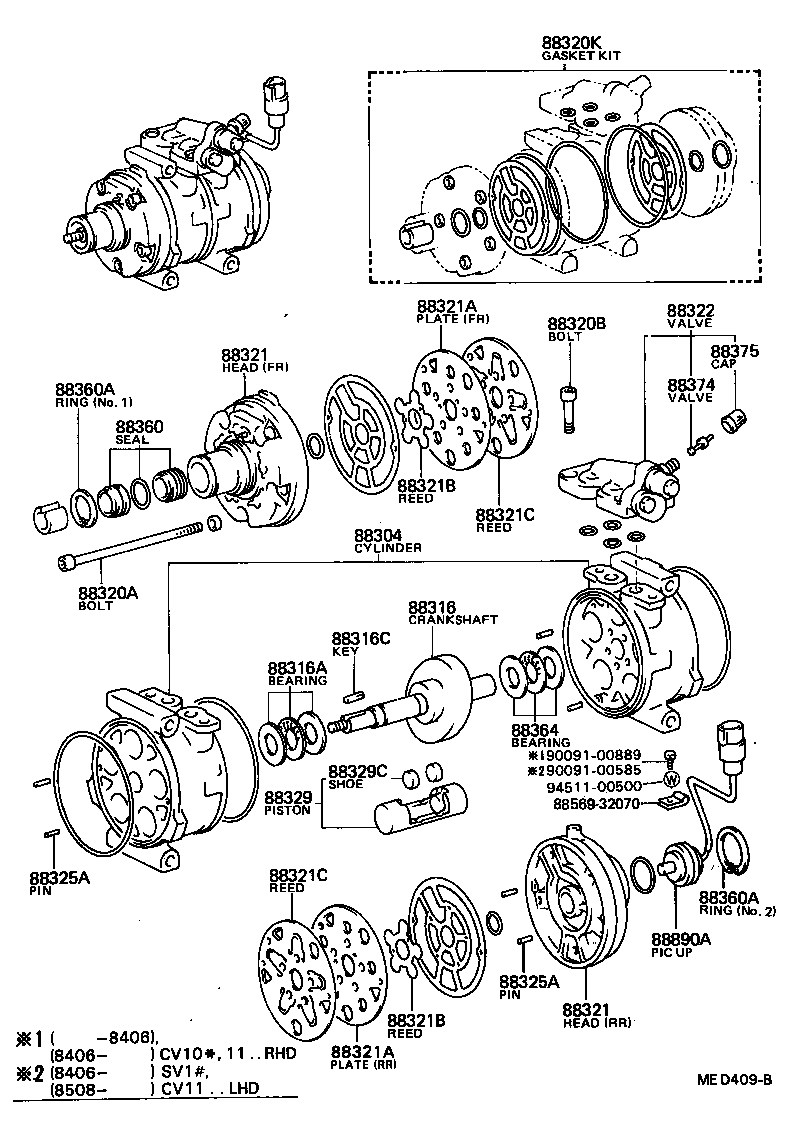

| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-14021 |
SV1#..LHD..EUG |
1 | ||
| 88304-14021 |
CV1#,SV1# |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-32011 |
CV11,SV1#..LHD |
1 | ||
| 88316-32011 |
SV1#..LHD..EUG |
1 | ||
| 88316-32010 |
SV1#..LHD..EUG |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-14010 |
SV1#..LHD..EUG |
1 | ||
| 88366-14010 |
CV1#,SV1# |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13024 |
SV1#..LHD..EUG |
1 | ||
| 90099-13011 |
SV1#..LHD..EUG |
1 | ||
| 90099-13024 |
CV11,SV1#..LHD |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04958 |
CV1#,SV1# |
1 | ||
| 90099-04958 |
SV1#..LHD..EUG |
1 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04924 |
SV1# |
4 | ||
| 90099-04924 |
SV1#..LHD..EUG |
4 | ||
| 90099-04307 |
SV1#..LHD |
4 | ||
| 88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL | ||||
| 04881-32010 |
SV1#..LHD..EUG |
1 | ||
| 04881-32010 |
CV11,SV1#..LHD |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14011 |
SV1#..LHD..EUG FR |
1 | ||
| 88322-32010 |
SV1#..LHD..EUG RR |
1 | ||
| 88321-14011 |
SV1# FR |
1 | ||
| 88322-32010 |
SV1# RR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14011 |
SV1#..LHD..EUG FR |
1 | ||
| 88322-32010 |
SV1#..LHD..EUG RR |
1 | ||
| 88321-14011 |
SV1# FR |
1 | ||
| 88322-32010 |
SV1# RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14010 |
SV1#..LHD..EUG RR |
1 | ||
| 88341-14010 |
CV1#,SV1# FR |
1 | ||
| 88342-14010 |
CV1#,SV1# RR |
1 | ||
| 88341-14010 |
SV1#..LHD..EUG FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14010 |
SV1#..LHD..EUG RR |
1 | ||
| 88341-14010 |
CV1#,SV1# FR |
1 | ||
| 88342-14010 |
CV1#,SV1# RR |
1 | ||
| 88341-14010 |
SV1#..LHD..EUG FR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14011 |
CV1#,SV1# |
2 | ||
| 88344-14011 |
SV1#..LHD..EUG |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14011 |
CV1#,SV1# |
2 | ||
| 88344-14011 |
SV1#..LHD..EUG |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
CV1#,SV1# |
1 | ||
| 88343-14011 |
SV1#..LHD..EUG |
1 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
CV1#,SV1# |
1 | ||
| 88343-14011 |
SV1#..LHD..EUG |
1 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-32030 |
SV1#..LHD..EUG |
1 | ||
| 88371-32020 |
SV1#..LHD |
1 | ||
| 88371-32020 |
SV1#..LHD..EUG |
1 | ||
| 88371-32070 |
SV1#..LHD |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
CV1#,SV1# |
4 | ||
| 90099-08058 |
SV1#..LHD..EUG |
4 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
CV1#,SV1# |
4 | ||
| 90099-08058 |
SV1#..LHD..EUG |
4 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-14020 |
CV1#,SV1# |
5 | ||
| 88301-14020 |
SV1#..LHD..EUG |
5 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-14010 |
SV1#..LHD..EUG |
10 | ||
| 88313-14010 |
CV1#,SV1# |
10 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-14020 |
SV1#..LHD..EUG |
1 | ||
| 88360-40010 |
SV1#..LHD..EUG |
1 | ||
| 88360-40010 |
CV11,SV1#..LHD |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90099-07119 |
SV1#..LHD..EUG NO.2 |
1 | ||
| 90096-90022 |
SV1# NO.1 |
1 | ||
| 90096-90022 |
SV1#..LHD..EUG NO.1 |
1 | ||
| 90099-07119 |
CV11,SV1# NO.2 |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90099-07119 |
SV1#..LHD..EUG NO.2 |
1 | ||
| 90096-90022 |
SV1# NO.1 |
1 | ||
| 90096-90022 |
SV1#..LHD..EUG NO.1 |
1 | ||
| 90099-07119 |
CV11,SV1# NO.2 |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88366-14010 |
SV1#..LHD..EUG |
1 | ||
| 88366-14010 |
CV1#,SV1# |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
SV1#..LHD..EUG |
1 | ||
| 88374-12020 |
CV1#,SV1# |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
SV1#..LHD..EUG |
1 | ||
| 88375-30270 |
CV1#,SV1# |
1 | ||
| 88890A - PICK UP, ASSY | ||||
| 88890-32010 |
SV1#..LHD..EUG |
1 | ||
| 88890-32010 |
CV11,SV1# |
1 | ||
| Common parts | ||||
| 88569-32070 | ||||
| 90091-00585 | ||||
| 90091-00889 | ||||
| 94511-00500 | ||||
(8301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-07087 | ||||
| 90099-07114 | ||||
| 90464-00108 | ||||
| 90464-00312 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| Linked diagrams | ||||
| 1605 | ||||
(8301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88899-20090 | ||||
| 90119-08299 | ||||
| 90119-10094 | ||||
| 91519-61245 | ||||
| 91611-60850 | ||||
| 91611-60855 | ||||
| Linked diagrams | ||||
| 1107 | ||||
(8301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88569-32070 | ||||
| 90091-00585 | ||||
| 90091-00889 | ||||
| 94511-00500 | ||||
