SV10L-UHMESW (1982)
Toyota Camry
Production
Oct 1982
-
Oct 1983
Engine
1SL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

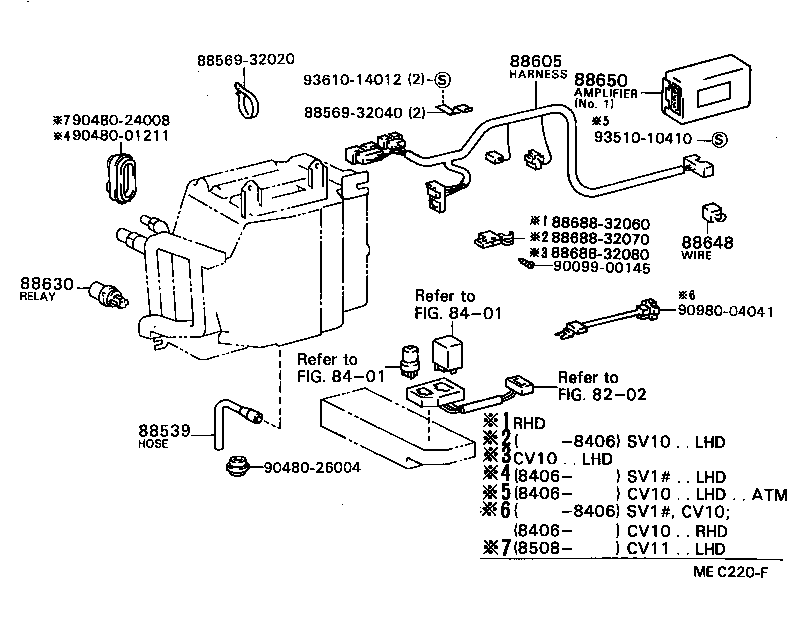

(8210- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-32020 |
CV1#,SV1#..LHD |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-32070 |
SV1#..LHD..EUG |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-32020 |
SV1#..LHD..EUG NO.2 |
1 | ||
| Common parts | ||||
| 88569-32020 | ||||
| 88569-32040 | ||||
| 88688-32060 | ||||
| 88688-32070 | ||||
| 88688-32080 | ||||
| 90099-00145 | ||||
| 90480-01211 | ||||
| 90480-24008 | ||||
| 90480-26004 | ||||
| 90980-04041 | ||||
| 93510-10410 | ||||
| 93610-14012 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||

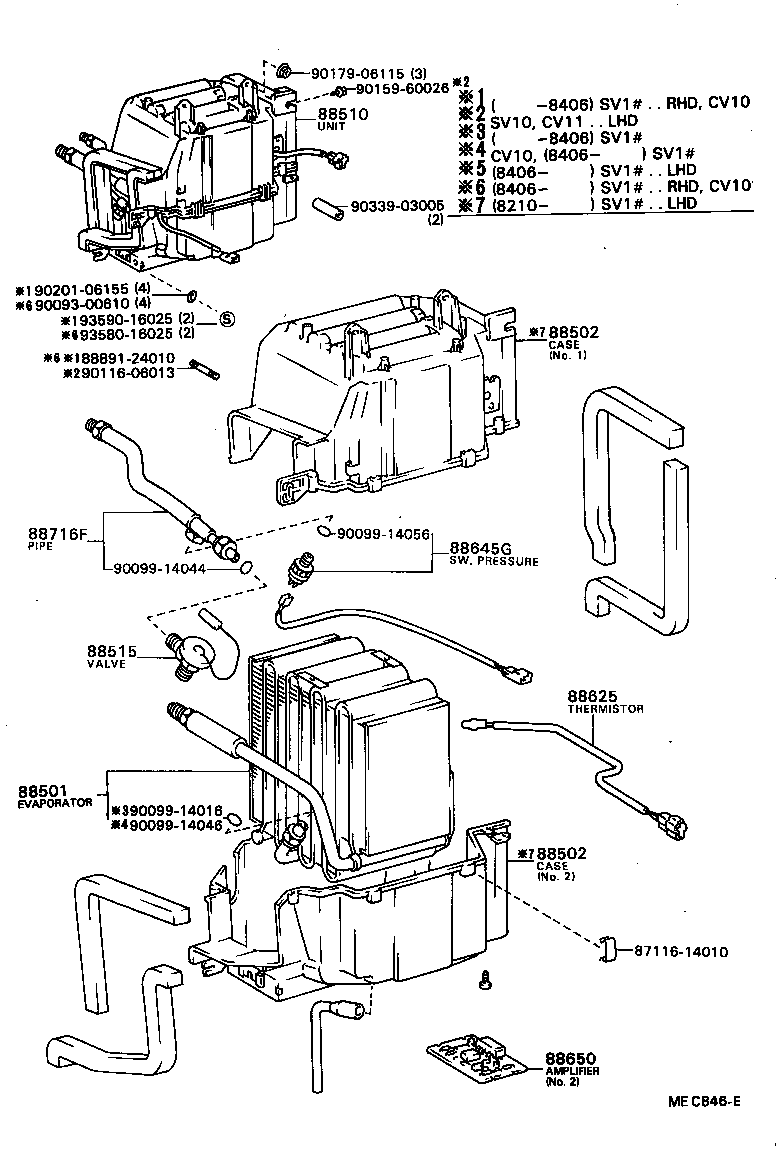

(8210- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-32020 |
CV10,SV1#..LHD..EUG |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-32020 |
SV1#..LHD..EUG NO.2 |
1 | ||
| 88502-32010 |
SV1#..LHD..EUG NO.1 |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-32020 |
SV1#..LHD..EUG NO.2 |
1 | ||
| 88502-32010 |
SV1#..LHD..EUG NO.1 |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-32080 |
SV1#..LHD..EUG |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20050 |
SV11..ARL;CV10,SV1#..EUG |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-90A00 |
SV11..ARL;CV10,SV1#..EUG |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-30250 |
SV1#..LHD..EUG |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-32020 |
SV1#..LHD..EUG NO.2 |
1 | ||
| Common parts | ||||
| 87116-14010 | ||||
| 88891-24010 | ||||
| 90093-00610 | ||||
| 90099-14016 | ||||
| 90099-14044 | ||||
| 90099-14046 | ||||
| 90099-14056 | ||||
| 90116-06013 | ||||
| 90159-60026 | ||||
| 90179-06115 | ||||
| 90201-06155 | ||||
| 90339-03005 | ||||
| 93580-16025 | ||||
| 93590-16025 | ||||
(8301- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88569-32020 | ||||
| 88569-32040 | ||||
| 88891-32040 | ||||
| 90099-14044 | ||||
| 90099-14046 | ||||
| 90116-06013 | ||||
| 90159-60026 | ||||
| 90179-06115 | ||||
(8301- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90480-01211 | ||||
| 90480-26004 | ||||
| 90980-04041 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 8401 | ||||
