SV10L-UHMESW (1982)
Toyota Camry
(8210- )SV1#

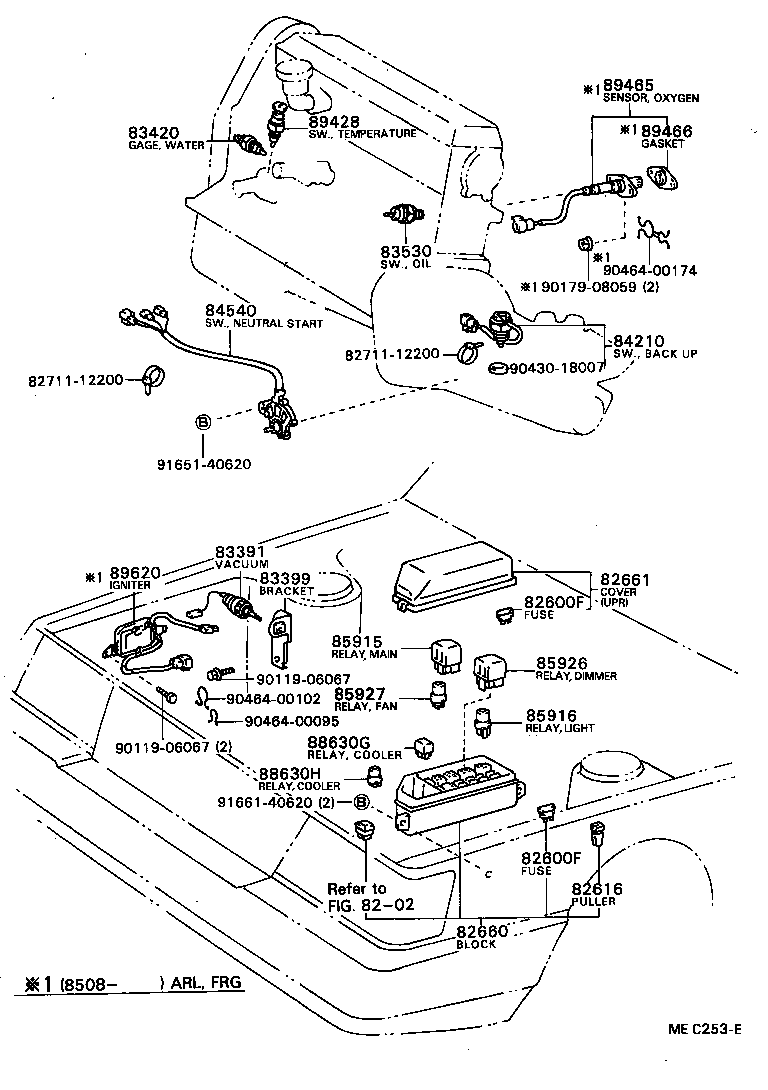

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
CV1#,SV1# 10A,10A |
1 | ||
| 90982-09004 |
CV1#,SV1# 20A,YELLOW,20A |
1 | ||
| 90982-09005 |
CV1#,SV1# 7.5A,7.5A |
1 | ||
| 90982-09003 |
CV1#,SV1# 15A,15A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
CV1#,SV1# 10A,10A |
1 | ||
| 90982-09004 |
CV1#,SV1# 20A,YELLOW,20A |
1 | ||
| 90982-09005 |
CV1#,SV1# 7.5A,7.5A |
1 | ||
| 90982-09003 |
CV1#,SV1# 15A,15A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
CV1#,SV1# |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-32050 |
SV1#..EUR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-32050 |
CV10,SV1#..EUR ENGINE ROOM,UPR |
1 | ||
| 82661-32040 |
CV1#,SV1#..LHD COWL SIDE |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-14070 |
SV10..5F MARK=330B |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-32030 |
SV10..5F |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
CV1#,SV1# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-10020 |
SV1# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60010 |
CV10,SV1#..5F |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 85913-30020 |
CV1#,SV1# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
CV1#,SV1# |
2 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-30020 |
CV1#,SV1#..EUR |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
CV1#,SV1# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32010 |
SV11..ARL;CV10,SV1#..EUG |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
SV11..ARL;CV10,SV1#..EUG |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-32010 |
SV1# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90119-06067 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 90464-00095 | ||||
| 90464-00102 | ||||
| 90464-00174 | ||||
| 91651-40620 | ||||
| 91661-40620 | ||||
| Linked diagrams | ||||
| 8202 | ||||
(8210-8406)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
CV1#,SV1# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
CV1#,SV1# 10A,10A |
1 | ||
| 90982-09004 |
CV1#,SV1# 20A,YELLOW,20A |
1 | ||
| 90982-09005 |
CV1#,SV1# 7.5A,7.5A |
1 | ||
| 90982-09003 |
CV1#,SV1# 15A,15A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
CV1#,SV1# 10A,10A |
1 | ||
| 90982-09004 |
CV1#,SV1# 20A,YELLOW,20A |
1 | ||
| 90982-09005 |
CV1#,SV1# 7.5A,7.5A |
1 | ||
| 90982-09003 |
CV1#,SV1# 15A,15A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
CV1#,SV1# 30A,MATSUSHITA |
3 | ||
| 82650-32020 |
CV1#,SV1# 30A,TOKAIRIKA |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
CV1#,SV1# 30A,MATSUSHITA |
3 | ||
| 82650-32020 |
CV1#,SV1# 30A,TOKAIRIKA |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
CV1#,SV1# 30A,MATSUSHITA |
3 | ||
| 82650-32020 |
CV1#,SV1# 30A,TOKAIRIKA |
3 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-32070 |
CV10,SV1#..LHD NO.2 |
1 | ||
| 82660-32110 |
CV1#,SV1#..LHD NO.1 |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-32070 |
CV10,SV1#..LHD NO.2 |
1 | ||
| 82660-32110 |
CV1#,SV1#..LHD NO.1 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-32050 |
CV10,SV1#..EUR ENGINE ROOM,UPR |
1 | ||
| 82661-32040 |
CV1#,SV1#..LHD COWL SIDE |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
CV1#,SV1# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
CV1#,SV1# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
CV1#,SV1# |
2 | ||
| 85925A - RELAY, RED INDICATOR | ||||
| 90987-03001 |
CV10,SV1#..LHD..EUG |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02004 |
CV10,SV1# NO.1 |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02004 |
CV10,SV1# NO.1 |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02004 |
CV10,SV1# NO.1 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-32030 |
CV1#,SV1#..5D RR WIPER |
1 | ||
| 85940-32040 |
CV10,SV1#..EUR FR WIPER |
1 | ||
| 85940-32050 |
CV10,SV1#..GL,GLI FR WIPER,W/INTERLOCK TIMER |
1 | ||
| 85965 - RELAY, ROOM LAMP CONTROL | ||||
| 85965-22021 |
SV10..GL;CV10,SV11 |
1 | ||
| 85965 - RELAY, ROOM LAMP CONTROL | ||||
| 85965-22021 |
SV10..GL;CV10,SV11 |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-32050 |
SV10..5F |
1 | ||
| Common parts | ||||
| 91651-40614 | ||||
(8210-8406)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39205 |
CV10,SV1#..LHD..(GL,GLI) W/INTERLOCK TIMER |
1 | ||
| 84112-39215 |
CV10,SV1#..LHD |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-3203001 |
SV10..LHD BLACK,BLACK,TRIM1#,8# |
1 | ||
| 84119-3203106 |
SV1#..LHD DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 84119-3203006 |
SV10..LHD DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 84119-3203101 |
SV1#..LHD BLACK,BLACK,TRIM1#,8# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-39105 |
CV10,SV1#..LHD |
1 | ||
| 84140-39095 |
CV1#,SV1#..LHD..(GL,GLI) W/INTERLOCK TIMER |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84160-32020 |
CV10,SV1#..EUR |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-32090 |
CV10,SV1#..LHD W/MIST WIPER |
1 | ||
| 84310-32070 |
CV10,SV1#..LHD..(GL,GLI) W/INTERLOCK TIMER |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32010 |
CV10,SV1#..GL,GLI W/INTERLOCK TIMER |
1 | ||
| 84312-32020 |
CV10,SV1#..EUR |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-39185 |
CV10,SV1#..LHD..(GL,GLI) W/INTERLOCK TIMER |
1 | ||
| 84332-39175 |
CV10,SV1#..LHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-27040 |
CV1#,SV1# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-39275 |
CV10,SV1#..LHD MIST WIPER |
1 | ||
| 84652-39255 |
CV10,SV1#..LHD..(GL,GLI) W/INTERLOCK TIMER |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-14020 |
SV10..5D |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-32020 |
CV10,SV1#..LHD..EUG |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-32010 |
SV11..ARL;CV1#,SV1#..EUG |
2 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-32010 |
CV10,SV1# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-32010 |
SV10 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-32010 |
CV10,SV1# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
CV10,SV1# 14V 1.4W |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-14020 |
CV1#,SV1# |
1 | ||
| Common parts | ||||
| 90159-60038 | ||||
| 90468-04045 | ||||
| 93315-14010 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||
| 93567-55016 | ||||
(8210-8406)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39325 |
SV1#..EUR |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39325 |
SV1#..EUR |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32010 |
CV1#,SV1# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32010 |
CV1#,SV1# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20080 |
CV10,SV1# |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-24010 |
CV1#,SV1# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-20080 |
CV10,SV1# |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-24010 |
CV1#,SV1# |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-32010 |
CV1#,SV1#..5D |
1 | ||
| 84236A - BRACKET, COURTESY SWITCH(FOR LUGGAGE COMPARTMENT ROOM) | ||||
| 84233-32010 |
CV1#,SV1#..5D |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32010 |
CV10,SV1# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
CV10,SV1# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-32030 |
CV1#,SV1#..5D RR WIPER |
1 | ||
| 85940-32040 |
CV10,SV1#..EUR FR WIPER |
1 | ||
| 85940-32050 |
CV10,SV1#..GL,GLI FR WIPER,W/INTERLOCK TIMER |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-32050 |
CV10,SV1#..LHD..(GL,GLI) |
1 | ||
| Common parts | ||||
| 82711-30020 | ||||
| 82711-32360 | ||||
| 90168-40006 | ||||
| 90179-06115 | ||||
| 90179-06184 | ||||
| 91651-40610 | ||||
| 93315-14014 | ||||
| 93381-15010 | ||||
| 93540-54012 | ||||
| 94120-41000 | ||||
(8301-8408)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90189-05024 | ||||
| 91651-40614 | ||||
| 93560-55014 | ||||
(8301-8408)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-60038 | ||||
| 90463-15003 | ||||
| 90468-04045 | ||||
| 93315-14010 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||
| 93566-14512 | ||||
| 93567-55016 | ||||
(8301-8408)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-30020 | ||||
| 82711-32360 | ||||
| 90168-40006 | ||||
| 90179-06115 | ||||
| 90179-06184 | ||||
| 90468-06046 | ||||
| 91651-40610 | ||||
| 93315-14014 | ||||
| 93381-15010 | ||||
| 93540-54012 | ||||
| 94120-41000 | ||||
