SV10L-UHMESW (1982)
Toyota Camry
Production
Oct 1982
-
Oct 1983
Engine
1SL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8210- )

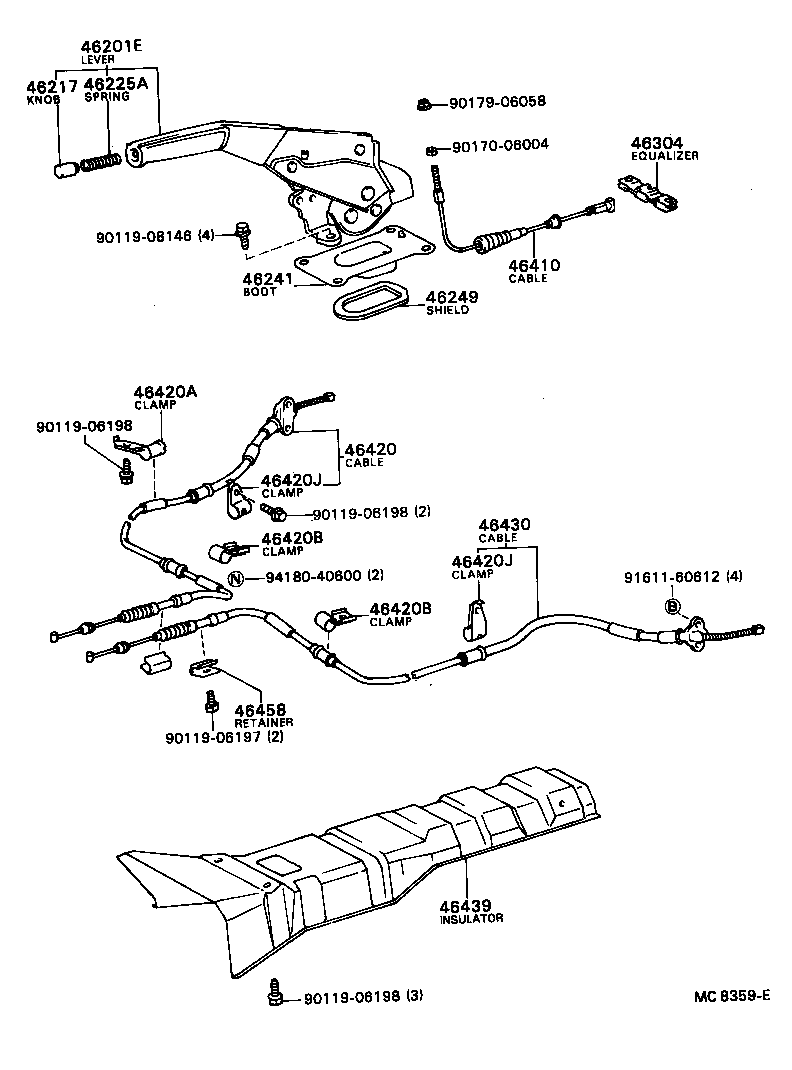

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-3202201 |
SV10..GL BLACK,BLACK,TRIM1#,8# |
1 | ||
| 46201-3202301 |
SV1#..(GL,GLI)..EUR BLACK,BLACK,TRIM1#,8# |
1 | ||
| 46201-3202306 |
SV1#..(GL,GLI)..EUR DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 46201-3202206 |
SV10..GL DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-1002046 |
SV1# DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 46217-1002001 |
SV1# BLACK,BLACK,TRIM1#,8# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10069 |
CV1#,SV1# |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-32010 |
CV1#,SV1# |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-32010 |
CV1#,SV1# |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-12010 |
CV10,SV1# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-32010 |
CV10,SV1#..EUR |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-39015 |
CV10,SV1# |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01017 |
CV1#,SV1# |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01016 |
CV1#,SV1# |
2 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01016 |
CV1#,SV1# |
2 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90949-01015 |
CV1#,SV1# |
2 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90949-01015 |
CV1#,SV1# |
2 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-39015 |
CV10,SV1# |
1 | ||
| 46439 - INSULATOR, PARKING BRAKE CABLE HEAT | ||||
| 46439-32010 |
SV1# |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
CV1#,SV1# |
2 | ||
| Common parts | ||||
| 90119-06197 | ||||
| 90119-06198 | ||||
| 90119-08146 | ||||
| 90170-06004 | ||||
| 90179-06058 | ||||
| 91611-60612 | ||||
| 94180-40600 | ||||
(8301- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06197 | ||||
| 90119-06198 | ||||
| 90119-08146 | ||||
| 90170-06004 | ||||
| 90179-06058 | ||||
| 91611-60612 | ||||
| 94180-40600 | ||||
