SV10L-UEMESW (1982)
Toyota Camry
(8210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12500 | ||||
| 82711-14110 | ||||
| 82711-1A040 | ||||
| 82711-1A150 | ||||
| 82711-22270 | ||||
| 82711-22300 | ||||
| 82711-24070 | ||||
| 82711-32030 | ||||
| 82711-32060 | ||||
| 82711-32090 | ||||
| 82711-32100 | ||||
| 82711-32110 | ||||
| 82711-32160 | ||||
| 82711-32180 | ||||
| 82819-32060 | ||||
| 90461-08039 | ||||
| 90461-08202 | ||||
| 90461-08309 | ||||
| 90461-08365 | ||||
| 90461-10223 | ||||
| 90462-10074 | ||||
| 90463-10337 | ||||
| 90464-00248 | ||||
| 90467-09031 | ||||
(8210- )SV1#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

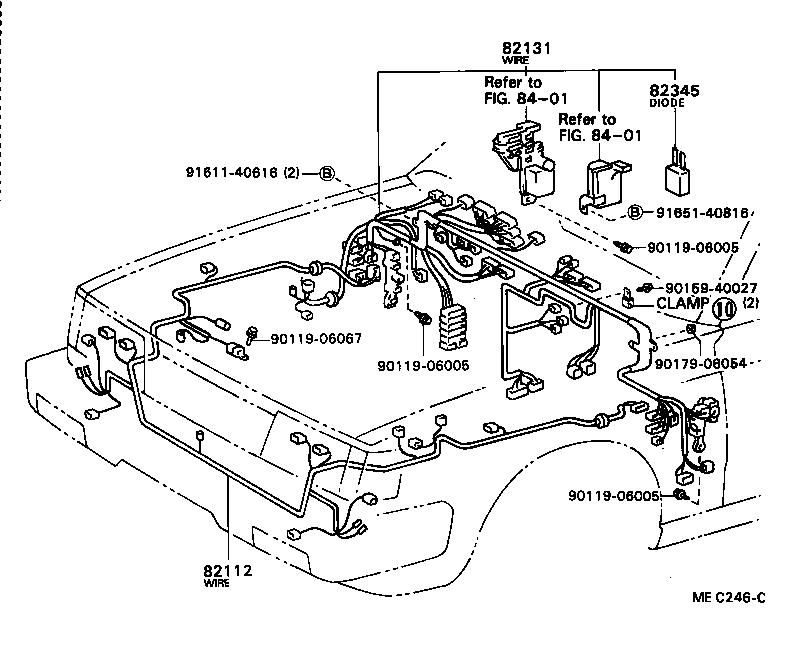

| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-32090 |
SV1#..LHD W/HEADLAMP CLEANER |
1 | ||
| 82112-32080 |
SV1#..LHD |
1 | ||
| 82112-32240 |
SV1#..LHD..(EUG,SDZ) W/HEADLAMP CLEANER |
1 | ||
| 82112-32230 |
SV1#..LHD..(EUG,SDZ) |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-32270 |
SV10..LHD |
1 | ||
| 82131-32271 |
SV1#..LHD |
1 | ||
| 82131-32520 |
SV1#..LHD W/*AS |
1 | ||
| 82131-32400 |
SV1#..LHD NORWAY SPEC |
1 | ||
| 82131-32600 |
SV1#..LHD W/*AS & *EL OR *SNR |
1 | ||
| 82131-32610 |
SV1#..LHD W/*DS |
1 | ||
| 82131-3H080 |
SV1#..LHD..EUG NORWAY SPEC,*SNR |
1 | ||
| 82131-3H080 |
SV1#..LHD..EUG FINLAND SPEC,W/*SNR OR W/*PW |
1 | ||
| 82131-3H070 |
SV1#..LHD..EUG FINLAND SPEC |
1 | ||
| 82131-3H070 |
SV1#..LHD..EUG NORWAY SPEC |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
SV1#..EUR |
2 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||
| 90159-40027 | ||||
| 90179-06054 | ||||
| 91611-40616 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

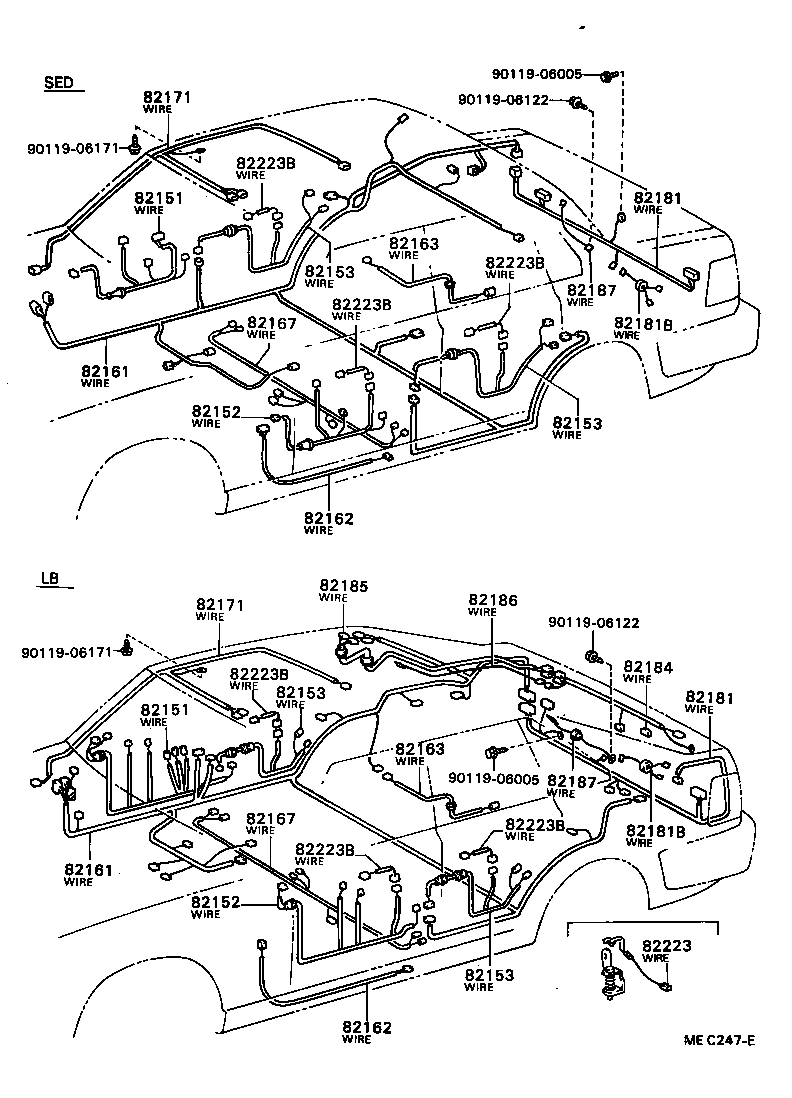

| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-32100 |
CV1#,SV1#..(GL,GLI)..EUR W/O POWER WINDOW & W/*RCM |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-32100 |
CV1#,SV1#..(GL,GLI)..EUR W/O POWER WINDOW & W/*RCM |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-32100 |
CV1#,SV1#..(GL,GLI)..EUR W/O POWER WINDOW & W/*RCM |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-32100 |
CV1#,SV1#..(GL,GLI)..EUR W/O POWER WINDOW & W/*RCM |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82162-32120 |
CV10,SV1#..LHD..4D |
1 | ||
| 82162-32350 |
CV1#,SV1#..LHD..4D |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82162-32120 |
CV10,SV1#..LHD..4D |
1 | ||
| 82162-32350 |
CV1#,SV1#..LHD..4D |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-32010 |
CV11,SV10 |
1 | ||
| 82171-32030 |
CV1#,SV1# W/SUN ROOF |
1 | ||
| 82171-32010 |
CV10,SV1#..EUR |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-32010 |
CV11,SV10 |
1 | ||
| 82171-32030 |
CV1#,SV1# W/SUN ROOF |
1 | ||
| 82171-32010 |
CV10,SV1#..EUR |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-32070 |
CV10,SV1#..4D |
1 | ||
| 82181-32140 |
CV10,SV1#..4D |
1 | ||
| 82181-32141 |
CV1#,SV1#..4D |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-32070 |
CV10,SV1#..4D |
1 | ||
| 82181-32140 |
CV10,SV1#..4D |
1 | ||
| 82181-32141 |
CV1#,SV1#..4D |
1 | ||
| 82181B - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-32010 |
CV1#,SV1# |
1 | ||
| 82181B - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-32010 |
CV1#,SV1# |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-32010 |
CV1#,SV1#..4D |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-32010 |
CV1#,SV1#..4D |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06122 | ||||
| 90119-06171 | ||||
(8210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

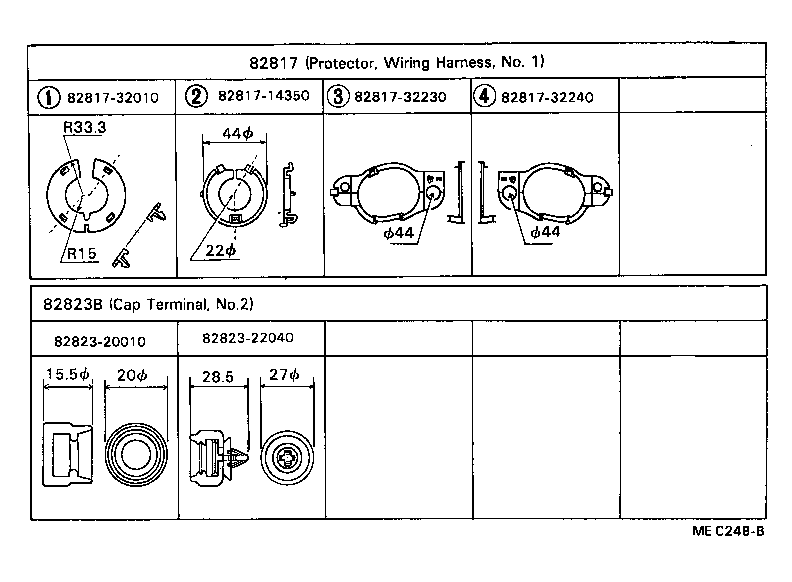

| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32010 |
CV1#,SV1# |
2 | ||
| Common parts | ||||
| 82817-14350 | ||||
| 82817-32010 | ||||
| 82817-32230 | ||||
| 82817-32240 | ||||
| 82823-20010 | ||||
| 82823-22040 | ||||
(8210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

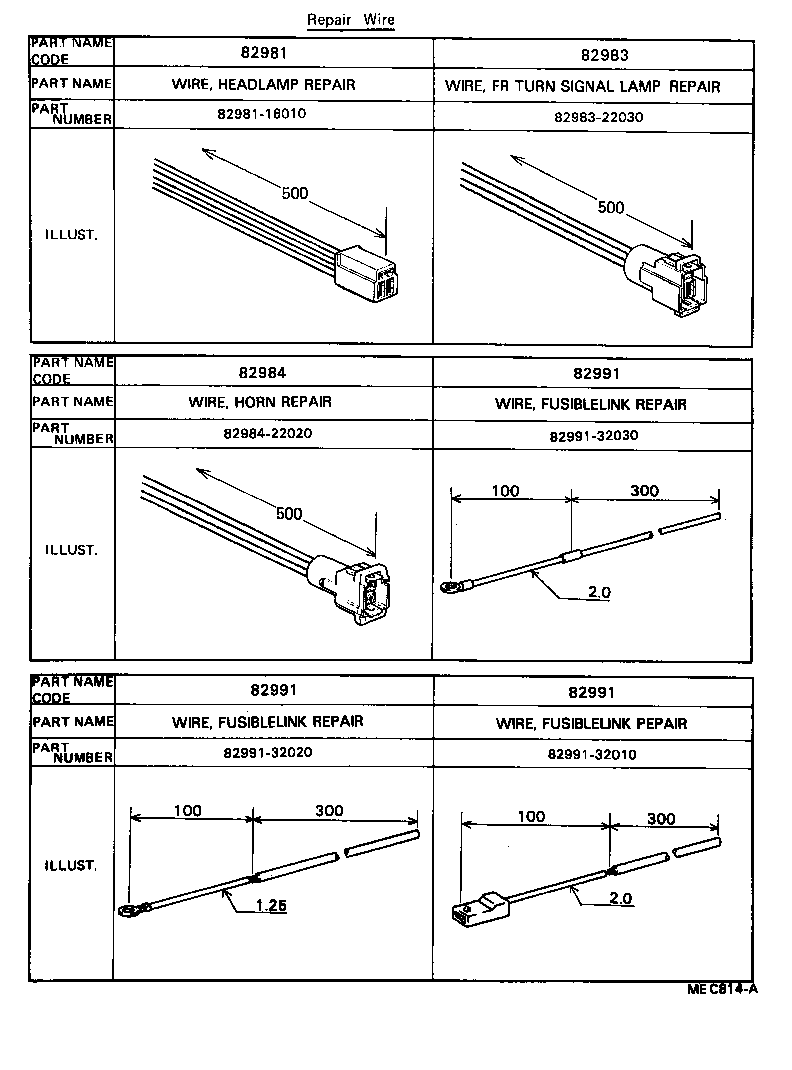

| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-16010 |
CV1#,SV1# |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-22030 |
CV10,SV1# |
1 | ||
| 82983-22030 |
SV1# |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-22020 |
SV1# |
1 | ||
| 82984-22020 |
CV10,SV1# |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-32010 |
SV1# FUSIBLE LINK=BLUE |
1 | ||
| 82991-32020 |
SV1# FUSIBLE LINK=BLACK |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-32010 |
SV1# FUSIBLE LINK=BLUE |
1 | ||
| 82991-32020 |
SV1# FUSIBLE LINK=BLACK |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-32010 |
SV1# FUSIBLE LINK=BLUE |
1 | ||
| 82991-32020 |
SV1# FUSIBLE LINK=BLACK |
1 | ||
| Common parts | ||||
| 82981-16010 | ||||
| 82983-22030 | ||||
| 82984-22020 | ||||
| 82991-32010 | ||||
| 82991-32020 | ||||
| 82991-32030 | ||||
(8210- )SV1#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

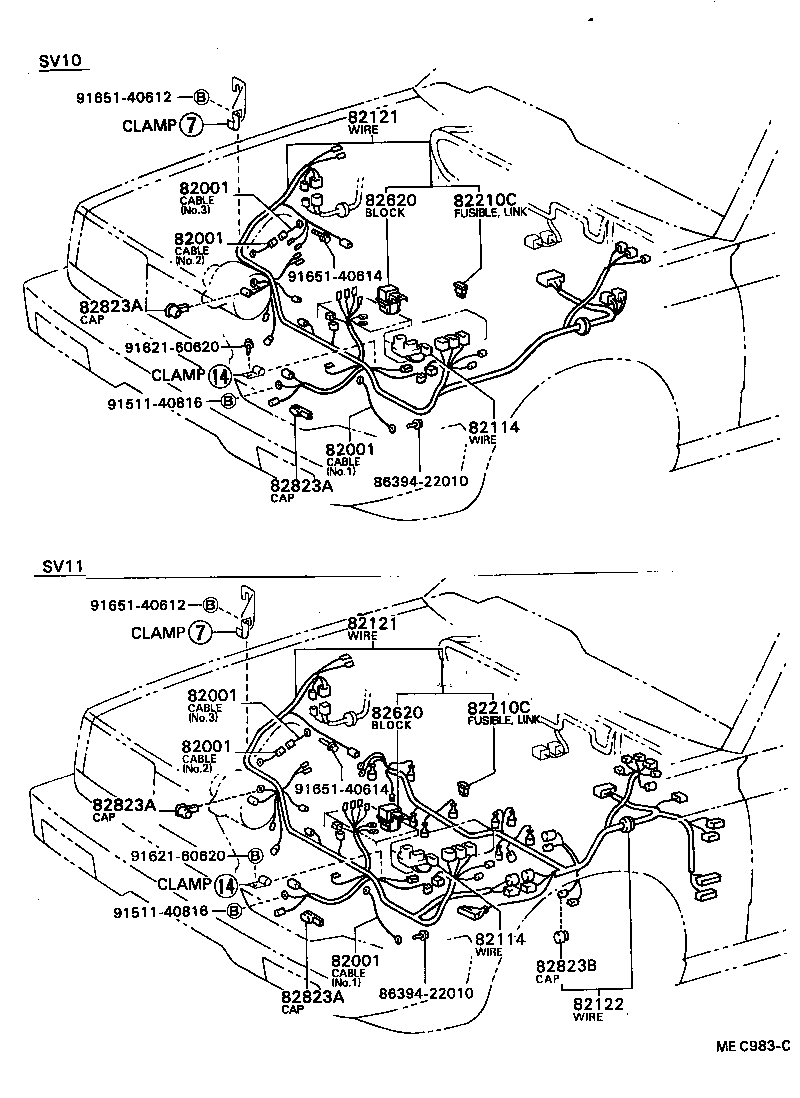

| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07205 |
SV1# NO.2(ENGINE HANGER) |
1 | ||
| 90980-07136 |
SV1# NO.1(CLUCH HOUSING) |
1 | ||
| 90980-07206 |
SV1# NO.3(PIPE CLAMP) |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07205 |
SV1# NO.2(ENGINE HANGER) |
1 | ||
| 90980-07136 |
SV1# NO.1(CLUCH HOUSING) |
1 | ||
| 90980-07206 |
SV1# NO.3(PIPE CLAMP) |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07205 |
SV1# NO.2(ENGINE HANGER) |
1 | ||
| 90980-07136 |
SV1# NO.1(CLUCH HOUSING) |
1 | ||
| 90980-07206 |
SV1# NO.3(PIPE CLAMP) |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07205 |
SV1# NO.2(ENGINE HANGER) |
1 | ||
| 90980-07136 |
SV1# NO.1(CLUCH HOUSING) |
1 | ||
| 90980-07206 |
SV1# NO.3(PIPE CLAMP) |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07205 |
SV1# NO.2(ENGINE HANGER) |
1 | ||
| 90980-07136 |
SV1# NO.1(CLUCH HOUSING) |
1 | ||
| 90980-07206 |
SV1# NO.3(PIPE CLAMP) |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07205 |
SV1# NO.2(ENGINE HANGER) |
1 | ||
| 90980-07136 |
SV1# NO.1(CLUCH HOUSING) |
1 | ||
| 90980-07206 |
SV1# NO.3(PIPE CLAMP) |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-32010 |
SV11..ARL;CV10,SV1#..EUG |
1 | ||
| 82114-32010 |
CV1#,SV1# |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-32010 |
SV11..ARL;CV10,SV1#..EUG |
1 | ||
| 82114-32010 |
CV1#,SV1# |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-32130 |
SV10..LHD |
1 | ||
| 82121-32131 |
SV10..LHD |
1 | ||
| 82121-32132 |
SV10..LHD |
1 | ||
| 82121-32340 |
SV10..LHD |
1 | ||
| 82121-32341 |
SV10..LHD |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-32130 |
SV10..LHD |
1 | ||
| 82121-32131 |
SV10..LHD |
1 | ||
| 82121-32132 |
SV10..LHD |
1 | ||
| 82121-32340 |
SV10..LHD |
1 | ||
| 82121-32341 |
SV10..LHD |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
SV10 60A,TERM.:FEMALE,YEL,60A |
1 | ||
| 90982-08188 |
SV1# 30A,TERM.:FEMALE,PNK,30A,TYPE 1 |
2 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
SV10 60A,TERM.:FEMALE,YEL,60A |
1 | ||
| 90982-08188 |
SV1# 30A,TERM.:FEMALE,PNK,30A,TYPE 1 |
2 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-32030 |
SV1# |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-32030 |
SV1# |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-20030 |
SV1# STARTER |
1 | ||
| 82823-20040 |
CV1#,SV1# ALTERNATOR |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-20030 |
SV1# STARTER |
1 | ||
| 82823-20040 |
CV1#,SV1# ALTERNATOR |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-20030 |
SV1# STARTER |
1 | ||
| 82823-20040 |
CV1#,SV1# ALTERNATOR |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-20030 |
SV1# STARTER |
1 | ||
| 82823-20040 |
CV1#,SV1# ALTERNATOR |
1 | ||
| Common parts | ||||
| 86394-22010 | ||||
| 91511-40816 | ||||
| 91621-60620 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
(8210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14340 | ||||
| 82711-1A300 | ||||
| 82711-20410 | ||||
| 82711-20460 | ||||
| 82711-20850 | ||||
| 82711-22220 | ||||
| 82711-32070 | ||||
| 82711-32270 | ||||
| 82711-32410 | ||||
| 82711-32460 | ||||
| 82711-32470 | ||||
| 82711-32490 | ||||
| 82711-32500 | ||||
| 82711-32501 | ||||
| 82711-32510 | ||||
| 82711-32511 | ||||
| 90461-08066 | ||||
| 90464-00108 | ||||
(8210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

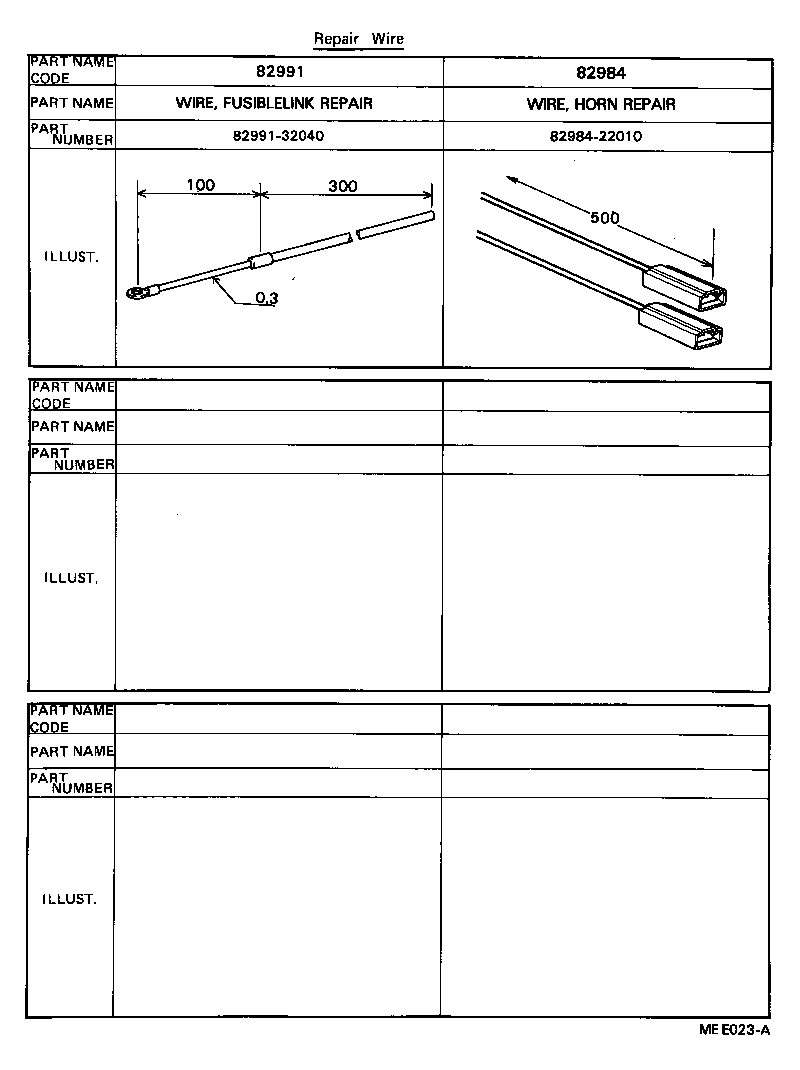

| 82984 - WIRE, HORN REPAIR | ||||
| 82984-22020 |
SV1# |
1 | ||
| 82984-22020 |
CV10,SV1# |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-32010 |
SV1# FUSIBLE LINK=BLUE |
1 | ||
| 82991-32020 |
SV1# FUSIBLE LINK=BLACK |
1 | ||
| Common parts | ||||
| 82984-22010 | ||||
| 82991-32040 | ||||
(8301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12500 | ||||
| 82711-14110 | ||||
| 82711-1A040 | ||||
| 82711-1A150 | ||||
| 82711-22270 | ||||
| 82711-22300 | ||||
| 82711-24070 | ||||
| 82711-32030 | ||||
| 82711-32060 | ||||
| 82711-32090 | ||||
| 82711-32100 | ||||
| 82711-32110 | ||||
| 82711-32160 | ||||
| 82711-32180 | ||||
| 82819-32060 | ||||
| 90461-08039 | ||||
| 90461-08202 | ||||
| 90461-08309 | ||||
| 90461-08365 | ||||
| 90461-10223 | ||||
| 90462-10074 | ||||
| 90463-10337 | ||||
| 90464-00248 | ||||
| 90467-09031 | ||||
(8301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06122 | ||||
(8301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14340 | ||||
| 82711-1A300 | ||||
| 82711-20410 | ||||
| 82711-20460 | ||||
| 82711-20850 | ||||
| 82711-22220 | ||||
| 82711-32070 | ||||
| 82711-32270 | ||||
| 82711-32410 | ||||
| 82711-32460 | ||||
| 82711-32470 | ||||
| 82711-32490 | ||||
| 82711-32500 | ||||
| 82711-32501 | ||||
| 82711-32510 | ||||
| 82711-32511 | ||||
| 90461-08066 | ||||
| 90464-00108 | ||||
(8301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82981-16010 | ||||
| 82981-22020 | ||||
| 82983-22030 | ||||
| 82983-22060 | ||||
| 82984-22020 | ||||
| 82991-32030 | ||||
(8301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82991-32010 | ||||
| 82991-32020 | ||||
| 82991-32040 | ||||
