SV10L-UEMESW (1982)
Toyota Camry
Production
Oct 1982
-
Oct 1986
Engine
1SL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8210- )

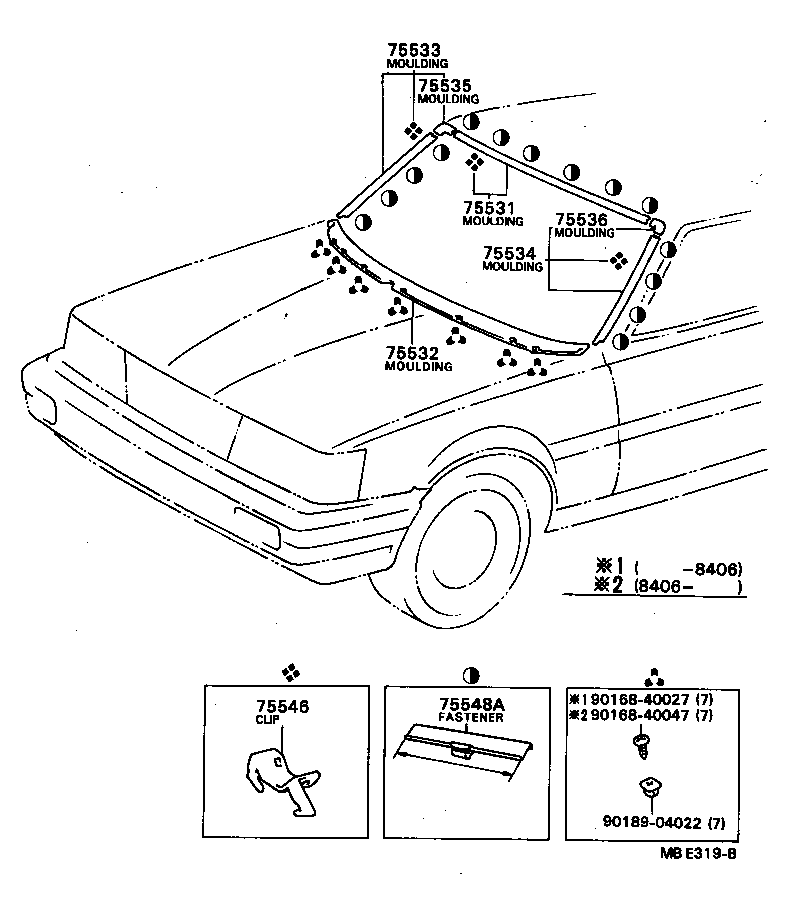

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75531 - MOULDING, WINDSHIELD, OUTER UPPER | ||||
| 75531-32010 |
CV1#,SV1#..4D |
1 | ||
| 75532 - MOULDING, WINDSHIELD, LOWER | ||||
| 75535-32080 |
CV11,SV1#..LHD COLD SPEC |
1 | ||
| 75535-32070 |
CV1#,SV1#..LHD |
1 | ||
| 75535-32040 |
CV10,SV1#..LHD |
1 | ||
| 75533 - MOULDING, WINDSHIELD, OUTSIDE RH | ||||
| 75533-32010 |
CV1#,SV1#..4D |
1 | ||
| 75534 - MOULDING, WINDSHIELD, OUTSIDE LH | ||||
| 75534-32010 |
CV1#,SV1#..4D |
1 | ||
| 75535 - MOULDING, WINDSHIELD CORNER, UPPER RH | ||||
| 75541-32010 |
CV1#,SV1#..4D |
1 | ||
| 75536 - MOULDING, WINDSHIELD CORNER, UPPER LH | ||||
| 75542-32010 |
CV1#,SV1#..4D |
1 | ||
| 75546 - CLIP, WINDSHIELD OUTSIDE MOULDING | ||||
| 75546-32010 |
CV1#,SV1# UPR |
5 | ||
| 75545-32010 |
CV1#,SV1# SIDE |
6 | ||
| 75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1 | ||||
| 75548-22060 |
CV10,SV1# L=40 |
14 | ||
| 75548-22060 |
CV1#,SV1# L=40 |
10 | ||
| 75548-32010 |
CV10,SV1# L=70 |
14 | ||
| 75548-32010 |
CV1#,SV1# L=70 |
4 | ||
| Common parts | ||||
| 90168-40027 | ||||
| 90168-40047 | ||||
| 90189-04022 | ||||
(8301- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90168-40027 | ||||
| 90168-40047 | ||||
| 90189-04022 | ||||
