SV10L-UEMESW (1982)

Toyota Camry

Production Oct 1982 - Oct 1986
Engine 1SL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )

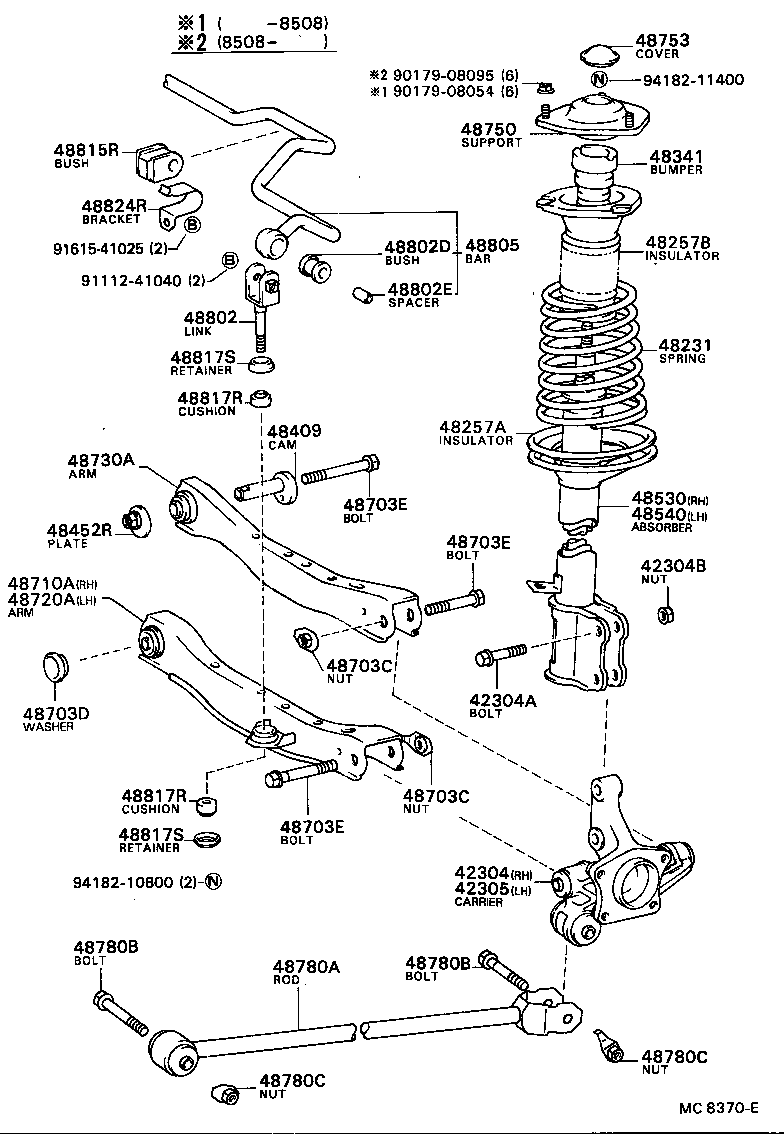

Click highlighted areas on diagram

diagram 42304 42304A 42304B 42305 48231 48257A 48257B 48341 48409 48452R 48530 48540 48703C 48703C 48703D 48703E 48703E 48703E 48710A 48720A 48730A 48750 48753 48780A 48780B 48780B 48780C 48780C 48802 48802D 48802E 48805 48815R 48817R 48817R 48817S 48817S 48824R 9017908054 9017908095 9111241040 9161541025 9418210800 9418211400
Part # Description Qty Price
42304 - CARRIER SUB-ASSY, REAR AXLE, RH
42304-32010

CV1#,SV1#

 1
42304A - BOLT (FOR REAR AXLE CARRIER)
90105-12042

CV1#,SV1#

 4
42304B - NUT (FOR REAR AXLE CARRIER)
90179-12025

CV1#,SV1#

 4
42305 - CARRIER SUB-ASSY, REAR AXLE, LH
42305-32010

CV1#,SV1#

 1
48231 - SPRING, COIL, REAR
48231-32190

CV1#,SV1#..4D

 2
48231-32120

SV10..4D

 2
48231-32121

CV10,SV1#..4D

 2
48257A - INSULATOR, REAR COIL SPRING, LOWER
48258-16010

CV1#,SV1#

 1
48257B - INSULATOR, REAR COIL SPRING, UPPER
48257-32030

CV1#,SV1#

 2
48341 - BUMPER, REAR SPRING
48341-32020

CV1#,SV1#

 2
48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48409-32010

CV1#,SV1#

 2
48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2
48452-32010

CV1#,SV1#

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-32041

CV1#,SV1#

 1
48530-32040

SV10

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48540-32040

SV10

 1
48540-32041

CV1#,SV1#

 1
48703C - NUT(FOR REAR SUSPENSION ARM)
90179-12028

CV1#,SV1#

ARM NO.1(BODY SIDE) & ARM NO.2

 4
90179-12023

CV1#,SV1#

ARM NO.1(CARRIER SIDE)

 2
48703C - NUT(FOR REAR SUSPENSION ARM)
90179-12028

CV1#,SV1#

ARM NO.1(BODY SIDE) & ARM NO.2

 4
90179-12023

CV1#,SV1#

ARM NO.1(CARRIER SIDE)

 2
48703D - WASHER(FOR REAR SUSPENSION ARM)
90209-13005

CV1#,SV1#

 2
48703E - BOLT(FOR REAR SUSPENSION ARM)
90105-12035

CV1#,SV1#

*12-1.25PX78-25,ARM NO.1

 4
90105-12037

CV1#,SV1#

*12-1.25PX60-25,ARM NO.2

 2
90105-10052

CV1#,SV1#

*10-1.25PX77-20,ARM NO.2

 2
48703E - BOLT(FOR REAR SUSPENSION ARM)
90105-12035

CV1#,SV1#

*12-1.25PX78-25,ARM NO.1

 4
90105-12037

CV1#,SV1#

*12-1.25PX60-25,ARM NO.2

 2
90105-10052

CV1#,SV1#

*10-1.25PX77-20,ARM NO.2

 2
48703E - BOLT(FOR REAR SUSPENSION ARM)
90105-12035

CV1#,SV1#

*12-1.25PX78-25,ARM NO.1

 4
90105-12037

CV1#,SV1#

*12-1.25PX60-25,ARM NO.2

 2
90105-10052

CV1#,SV1#

*10-1.25PX77-20,ARM NO.2

 2
48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH
48710-32010

CV1#,SV1#

 1
48710-32011

CV11,SV1#

 1
48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH
48720-32011

CV11,SV1#

 1
48720-32010

CV1#,SV1#

 1
48730A - ARM ASSY, REAR SUSPENSION, NO.2
48730-32010

CV1#,SV1#

 2
48730-32011

CV11,SV1#

 2
48750 - SUPPORT ASSY, REAR SUSPENSION
48750-32010

CV1#,SV1#

 2
48753 - COVER, REAR SUSPENSION SUPPORT
48753-16010

CV11,SV1#

 2
48753-32010

CV10,SV1#

 2
48780A - ROD ASSY, STRUT, REAR
48780-32010

CV1#,SV1#

 2
48780B - BOLT(FOR STRUT ROD)
90105-12035

CV1#,SV1#

 4
48780B - BOLT(FOR STRUT ROD)
90105-12035

CV1#,SV1#

 4
48780C - NUT(FOR STRUT ROD)
90179-12028

CV1#,SV1#

BODY SIDE

 2
90179-12023

CV1#,SV1#

CARRIER SIDE

 2
48780C - NUT(FOR STRUT ROD)
90179-12028

CV1#,SV1#

BODY SIDE

 2
90179-12023

CV1#,SV1#

CARRIER SIDE

 2
48802 - LINK SUB-ASSY, STABILIZER
48802-32010

CV1#,SV1#

 2
48802D - BUSH, STABILIZER LINK
90385-11021

CV1#,SV1#

 2
48802E - SPACER(FOR REAR STABILIZER BAR)
90560-10275

CV1#,SV1#

 2
48805 - BAR SUB-ASSY, REAR STABILIZER
48805-32010

SV1#

W/POWER STEERING

 1
48805-32050

SV1#

 1
48805-32110

CV1#,SV1#..4D

 1
48805-32010

SV1#..4D

W/POWER STEERING

 1
48815R - BUSH, STABILIZER(FOR REAR)
48818-32010

SV1#..4D

W/POWER STEERING

 2
48818-32030

SV1#

 2
48818-20030

CV1#,SV1#..4D

 2
48818-32010

SV1#

W/POWER STEERING

 2
48817R - CUSHION, STABILIZER(FOR REAR)
48817-10010

CV1#,SV1#

 4
48817R - CUSHION, STABILIZER(FOR REAR)
48817-10010

CV1#,SV1#

 4
48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
90948-02024

CV1#,SV1#

 4
48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
90948-02024

CV1#,SV1#

 4
48824R - BRACKET, STABILIZER(FOR REAR)
48832-32010

CV1#,SV1#

 2
Common parts
90179-08054
90179-08095
91112-41040
91615-41025
94182-10800
94182-11400

(8301- )

Click highlighted areas on diagram

diagram 42304 42304A 42304B 42305 48231 48257A 48257B 48341 48409 48452R 48530 48540 48703C 48703C 48703D 48703E 48703E 48703E 48710A 48720A 48730A 48750 48753 48780A 48780B 48780B 48780C 48780C 48802 48802D 48802E 48805 48815R 48817R 48817R 48817S 48817S 48824R 9017908054 9017908095 9111241040 9161541025 9418210800 9418211400
Part # Description Qty Price
Common parts
90179-08054
90179-08095
91112-41040
91615-41025
94182-10800
94182-11400
