MCV20R-AEPGKW (1996)
Toyota Camry
ILLUST NO. 2 OF 2(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-33020 |
MCV20,SXV20 |
1 | ||
| 44510-33070 |
MCV20,SXV20 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42020 |
MCV20,SXV20 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42020 |
MCV20,SXV20 |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
MCV20,SXV20 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
MCV20,SXV20 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
MCV20,SXV20 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-33030 |
MCV20,SXV20 |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 90119-08827 | ||||
| 90179-08031 | ||||

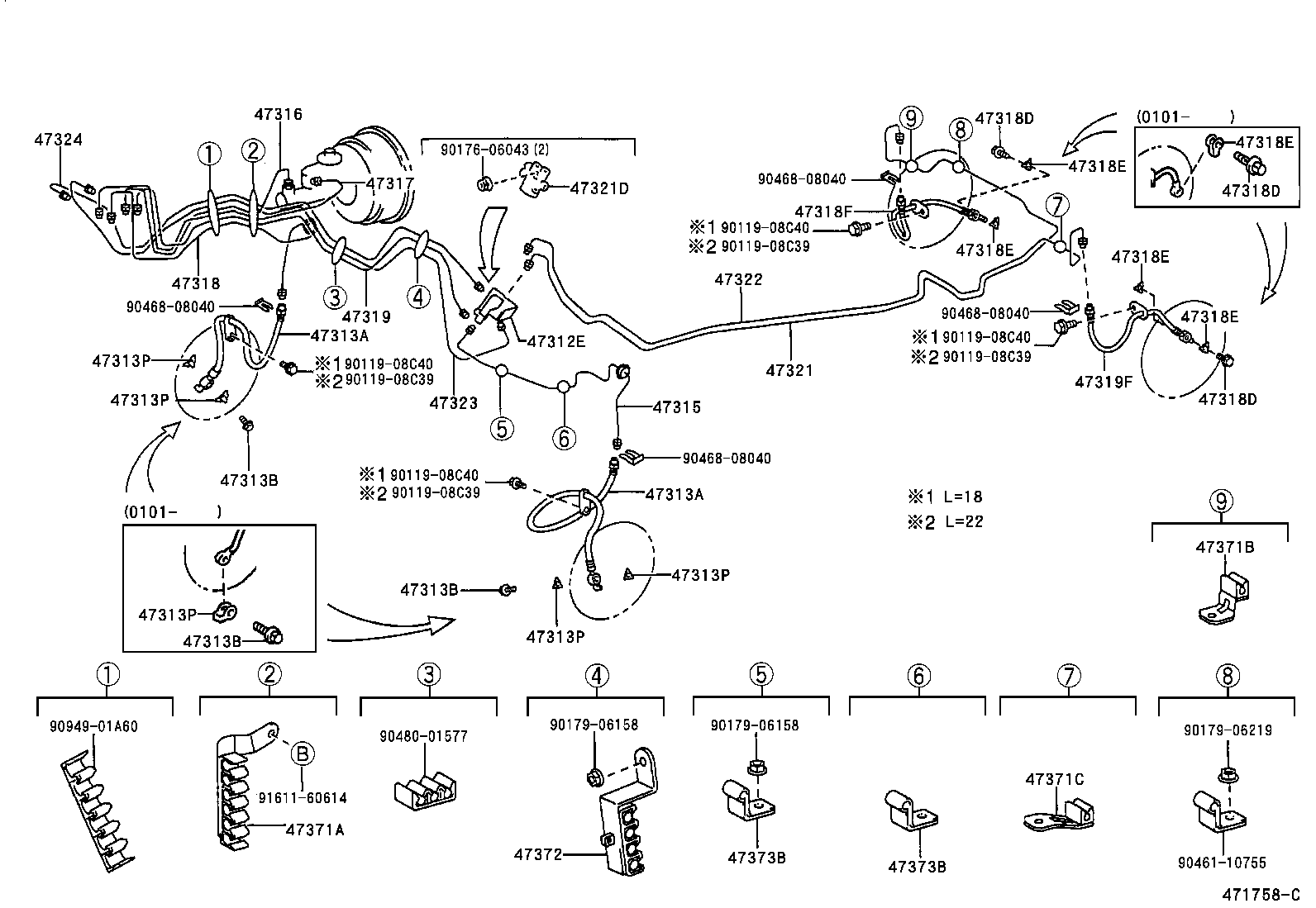

ILLUST NO. 1 OF 2(9608- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-33020 |
MCV20,SXV20 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90904-12038 |
MCV20,SXV20..ATM |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02876 |
MCV20,SXV20 LH |
1 | ||
| 90947-02875 |
MCV20,SXV20 RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02876 |
MCV20,SXV20 LH |
1 | ||
| 90947-02875 |
MCV20,SXV20 RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
MCV20,SXV20 |
2 | ||
| 90401-10015 |
MCV20,SXV20 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
MCV20,SXV20 |
2 | ||
| 90401-10015 |
MCV20,SXV20 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
MCV20,SXV20 |
2 | ||
| 90401-10015 |
MCV20,SXV20 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20,SXV20 |
4 | ||
| 47389-50020 |
MCV20,SXV20 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20,SXV20 |
4 | ||
| 47389-50020 |
MCV20,SXV20 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20,SXV20 |
4 | ||
| 47389-50020 |
MCV20,SXV20 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20,SXV20 |
4 | ||
| 47389-50020 |
MCV20,SXV20 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20,SXV20 |
4 | ||
| 47389-50020 |
MCV20,SXV20 |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-33100 |
MCV20,SXV20..RHD |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-33080 |
MCV20,SXV20..RHD |
1 | ||
| 47316-33090 |
MCV20..RHD W(TRACTION CONTROL) |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-33080 |
MCV20..RHD W(TRACTION CONTROL) |
1 | ||
| 47317-33070 |
MCV20,SXV20..RHD |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-33050 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 47318-33040 |
MCV20,SXV20 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
MCV20,SXV20 |
2 | ||
| 90401-10058 |
MCV20,SXV20 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
MCV20,SXV20 |
2 | ||
| 90401-10058 |
MCV20,SXV20 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
MCV20,SXV20 |
2 | ||
| 90401-10058 |
MCV20,SXV20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20,SXV20 |
4 | ||
| 47389-50020 |
MCV20,SXV20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20,SXV20 |
4 | ||
| 47389-50020 |
MCV20,SXV20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20,SXV20 |
4 | ||
| 47389-50020 |
MCV20,SXV20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20,SXV20 |
4 | ||
| 47389-50020 |
MCV20,SXV20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20,SXV20 |
4 | ||
| 47389-50020 |
MCV20,SXV20 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02877 |
MCV20,SXV20 W(REAR DISC BRAKE) |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-33060 |
MCV20,SXV20..RHD |
1 | ||
| 47319-33070 |
MCV20..RHD W(TRACTION CONTROL) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02878 |
MCV20,SXV20 W(REAR DISC BRAKE) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-33020 |
MCV20,SXV20 |
1 | ||
| 47321-33120 |
MCV20,SXV20 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-33020 |
MCV20,SXV20 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-33080 |
MCV20..RHD W(TRACTION CONTROL) |
1 | ||
| 47323-33070 |
MCV20,SXV20..RHD |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-33070 |
MCV20,SXV20..RHD |
1 | ||
| 47324-33080 |
MCV20..RHD W(TRACTION CONTROL) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-33100 |
MCV20,SXV20..RHD |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-32130 |
MCV20,SXV20 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-32140 |
MCV20,SXV20 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-33260 |
MCV20,SXV20..RHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90461-10755 |
MCV20,SXV20..RHD |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90461-10755 |
MCV20,SXV20..RHD |
2 | ||
| Common parts | ||||
| 90119-08C39 | ||||
| 90119-08C40 | ||||
| 90176-06043 | ||||
| 90179-06158 | ||||
| 90179-06219 | ||||
| 90461-10755 | ||||
| 90468-08040 | ||||
| 90480-01577 | ||||
| 90949-01A60 | ||||
| 91611-60614 | ||||
ILLUST NO. 1 OF 2(9908- )MCV20..RHD
W(TRACTION CONTROL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90904-12038 |
MCV20,SXV20..ATM |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02876 |
MCV20,SXV20 LH |
1 | ||
| 90947-02875 |
MCV20,SXV20 RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02876 |
MCV20,SXV20 LH |
1 | ||
| 90947-02875 |
MCV20,SXV20 RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
MCV20,SXV20 |
2 | ||
| 90401-10015 |
MCV20,SXV20 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
MCV20,SXV20 |
2 | ||
| 90401-10015 |
MCV20,SXV20 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
MCV20,SXV20 |
2 | ||
| 90401-10015 |
MCV20,SXV20 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20,SXV20 |
4 | ||
| 47389-50020 |
MCV20,SXV20 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20,SXV20 |
4 | ||
| 47389-50020 |
MCV20,SXV20 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20,SXV20 |
4 | ||
| 47389-50020 |
MCV20,SXV20 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20,SXV20 |
4 | ||
| 47389-50020 |
MCV20,SXV20 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20,SXV20 |
4 | ||
| 47389-50020 |
MCV20,SXV20 |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-33100 |
MCV20,SXV20..RHD |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-33080 |
MCV20,SXV20..RHD |
1 | ||
| 47316-33090 |
MCV20..RHD W(TRACTION CONTROL) |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-33080 |
MCV20..RHD W(TRACTION CONTROL) |
1 | ||
| 47317-33070 |
MCV20,SXV20..RHD |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-33050 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 47318-33040 |
MCV20,SXV20 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
MCV20,SXV20 |
2 | ||
| 90401-10058 |
MCV20,SXV20 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
MCV20,SXV20 |
2 | ||
| 90401-10058 |
MCV20,SXV20 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
MCV20,SXV20 |
2 | ||
| 90401-10058 |
MCV20,SXV20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20,SXV20 |
4 | ||
| 47389-50020 |
MCV20,SXV20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20,SXV20 |
4 | ||
| 47389-50020 |
MCV20,SXV20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20,SXV20 |
4 | ||
| 47389-50020 |
MCV20,SXV20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20,SXV20 |
4 | ||
| 47389-50020 |
MCV20,SXV20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20,SXV20 |
4 | ||
| 47389-50020 |
MCV20,SXV20 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02877 |
MCV20,SXV20 W(REAR DISC BRAKE) |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-33060 |
MCV20,SXV20..RHD |
1 | ||
| 47319-33070 |
MCV20..RHD W(TRACTION CONTROL) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02878 |
MCV20,SXV20 W(REAR DISC BRAKE) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-33020 |
MCV20,SXV20 |
1 | ||
| 47321-33120 |
MCV20,SXV20 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10140 |
MCV20 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-33020 |
MCV20,SXV20 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-33080 |
MCV20..RHD W(TRACTION CONTROL) |
1 | ||
| 47323-33070 |
MCV20,SXV20..RHD |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-33070 |
MCV20,SXV20..RHD |
1 | ||
| 47324-33080 |
MCV20..RHD W(TRACTION CONTROL) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-33100 |
MCV20,SXV20..RHD |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-32130 |
MCV20,SXV20 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-32140 |
MCV20,SXV20 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-33260 |
MCV20,SXV20..RHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90461-10755 |
MCV20,SXV20..RHD |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90461-10755 |
MCV20,SXV20..RHD |
2 | ||
| Common parts | ||||
| 90119-08C39 | ||||
| 90119-08C40 | ||||
| 90176-06043 | ||||
| 90179-06158 | ||||
| 90179-06219 | ||||
| 90461-10755 | ||||
| 90468-08040 | ||||
| 90480-01577 | ||||
| 90949-01A60 | ||||
| 91611-60614 | ||||
ILLUST NO. 2 OF 2(9908- )MCV20
W(TRACTION CONTROL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44540 - ACTUATOR ASSY, ABS & TRACTION | ||||
| 44050-33030 |
MCV20 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42020 |
MCV20,SXV20 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42020 |
MCV20,SXV20 |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
MCV20,SXV20 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
MCV20,SXV20 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
MCV20,SXV20 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-33030 |
MCV20,SXV20 |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 90119-08827 | ||||
| 90179-08031 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
