MCV20R-AEPGKW (1996)
Toyota Camry
Production
Aug 1996
-
Sep 2001
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9608- )1MZFE

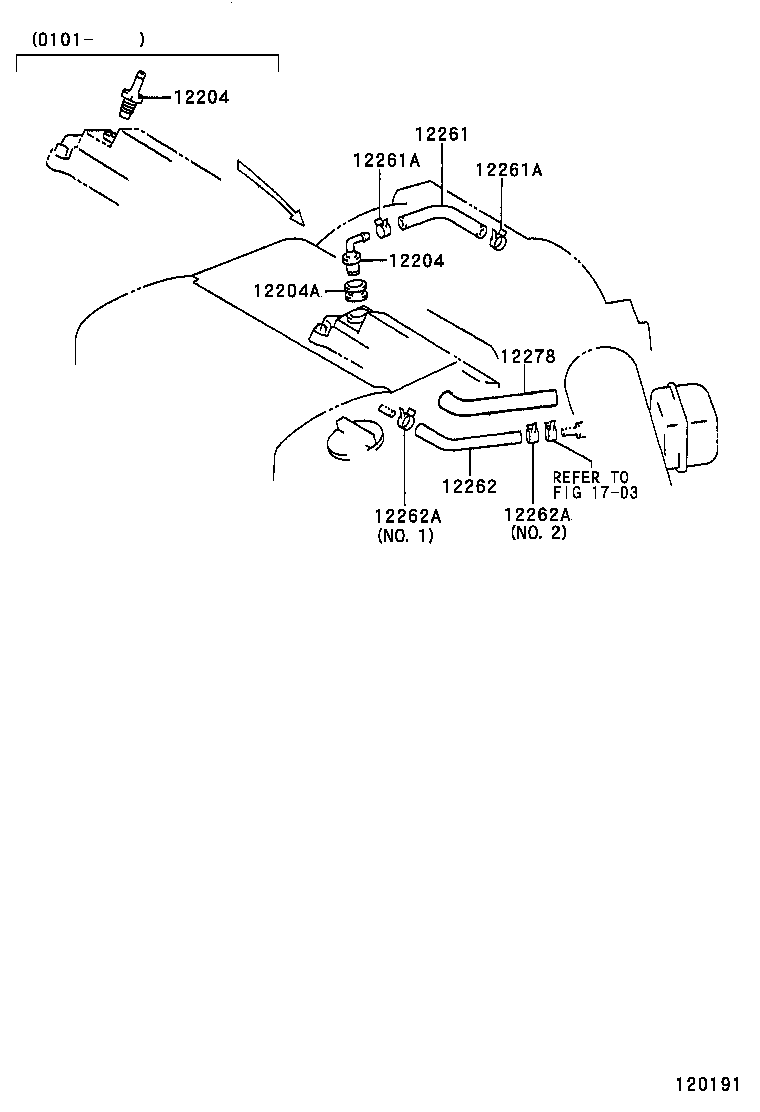

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-20030 |
1MZFE..MCV20 CHILE SPEC OR LATIN AMERICA SPEC(UNLEADED) |
1 | ||
| 12204-20010 |
1MZFE..MCV20 |
1 | ||
| 12204-20040 |
1MZFE..MCV20 |
1 | ||
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-20030 |
1MZFE..MCV20 CHILE SPEC OR LATIN AMERICA SPEC(UNLEADED) |
1 | ||
| 12204-20010 |
1MZFE..MCV20 |
1 | ||
| 12204-20040 |
1MZFE..MCV20 |
1 | ||
| 12204A - GROMMET(FOR VENTILATION SYSTEM) | ||||
| 90480-18001 |
1MZFE..MCV20 |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-20010 |
1MZFE..MCV20 |
1 | ||
| 12261-20011 |
1MZFE..MCV20 |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-14017 |
1MZFE..MCV20 |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-14017 |
1MZFE..MCV20 |
2 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 12262-20020 |
1MZFE..MCV20 |
1 | ||
| 12262-20010 |
1MZFE..MCV20 |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-19022 |
1MZFE..MCV20 NO.2 |
1 | ||
| 90467-17011 |
1MZFE..MCV20 NO.1 |
1 | ||
| 90467-17011 |
1MZFE..MCV20 |
2 | ||
| 96134-41900 |
1MZFE..MCV20 NO.2 |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-19022 |
1MZFE..MCV20 NO.2 |
1 | ||
| 90467-17011 |
1MZFE..MCV20 NO.1 |
1 | ||
| 90467-17011 |
1MZFE..MCV20 |
2 | ||
| 96134-41900 |
1MZFE..MCV20 NO.2 |
1 | ||
| 12278 - INSULATOR, VENTILATION HOSE HEAT | ||||
| 12278-20010 |
1MZFE..MCV20 |
1 | ||
| Linked diagrams | ||||
| 1703 | ||||
