MCV20L-AEPGKW (1996)
Toyota Camry
(9608- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-30009 |
MCV20,SXV20..LHD..ATM UPPER |
1 | ||
| 90959-03120 |
MCV20,SXV20..LHD..ATM LOWER |
1 | ||
| 90959-03120 |
MCV20,SXV20..LHD..ATM |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-30009 |
MCV20,SXV20..LHD..ATM UPPER |
1 | ||
| 90959-03120 |
MCV20,SXV20..LHD..ATM LOWER |
1 | ||
| 90959-03120 |
MCV20,SXV20..LHD..ATM |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-30009 |
MCV20,SXV20..LHD..ATM UPPER |
1 | ||
| 90959-03120 |
MCV20,SXV20..LHD..ATM LOWER |
1 | ||
| 90959-03120 |
MCV20,SXV20..LHD..ATM |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-32010 |
MCV20,SXV20..LHD..ATM |
1 | ||
| 78111-33010 |
MCV20,SXV20..LHD CHINA SPEC OR MIDDLE SOUTH AMERICA SPEC OR VENEZUELA SPEC |
1 | ||
| 78111-33030 |
MCV20,SXV20..LHD..ATM |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-32010 |
MCV20,SXV20..LHD..ATM |
1 | ||
| 78111-33010 |
MCV20,SXV20..LHD CHINA SPEC OR MIDDLE SOUTH AMERICA SPEC OR VENEZUELA SPEC |
1 | ||
| 78111-33030 |
MCV20,SXV20..LHD..ATM |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90241-05022 |
MCV20,SXV20..LHD..ATM |
1 | ||
| 78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD) | ||||
| 90959-03003 |
MCV20,SXV20..LHD..ATM |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-33080 |
MCV20,SXV20..LHD..ATM |
1 | ||
| 78120-33060 |
MCV20,SXV20..LHD..ATM CHINA SPEC OR MIDDLE SOUTH AMERICA SPEC OR VENEZUELA SPEC |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-33080 |
MCV20,SXV20..LHD..ATM |
1 | ||
| 78120-33060 |
MCV20,SXV20..LHD..ATM CHINA SPEC OR MIDDLE SOUTH AMERICA SPEC OR VENEZUELA SPEC |
1 | ||
| 78150B - CABLE ASSY, ACCELERATOR AUTO DRIVE | ||||
| 78150-33080 |
MCV20 |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-33260 |
MCV20..LHD W(CRUISE CONTROL) |
1 | ||
| 78180-33220 |
MCV20..LHD |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-33060 |
MCV20 TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 78186-33040 |
MCV20 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-33060 |
MCV20 TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 78186-33040 |
MCV20 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-33060 |
MCV20 TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 78186-33040 |
MCV20 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-33060 |
MCV20 TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 78186-33040 |
MCV20 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-33060 |
MCV20 TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 78186-33040 |
MCV20 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-33060 |
MCV20 TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 78186-33040 |
MCV20 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| Common parts | ||||
| 90119-05041 | ||||
| 90119-06459 | ||||
| 90119-06683 | ||||
| 90183-05040 | ||||
| 91511-B0612 | ||||
| 91511-B0814 | ||||
| 91652-60630 | ||||
| 93219-15008 | ||||
| 93383-16016 | ||||
| 96160-00600 | ||||

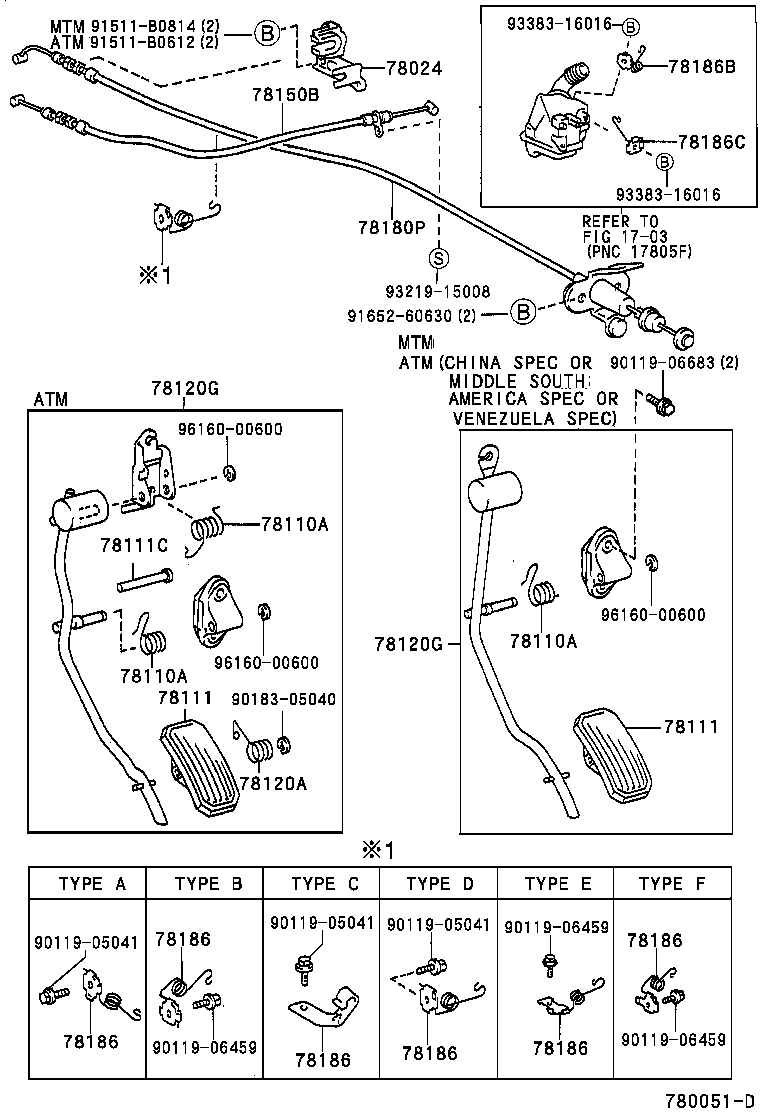

| Linked diagrams | ||||
| 1703 | ||||
