MCV20L-AEPGKW (1996)

Toyota Camry

Production Aug 1996 - Aug 2001
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )LHD

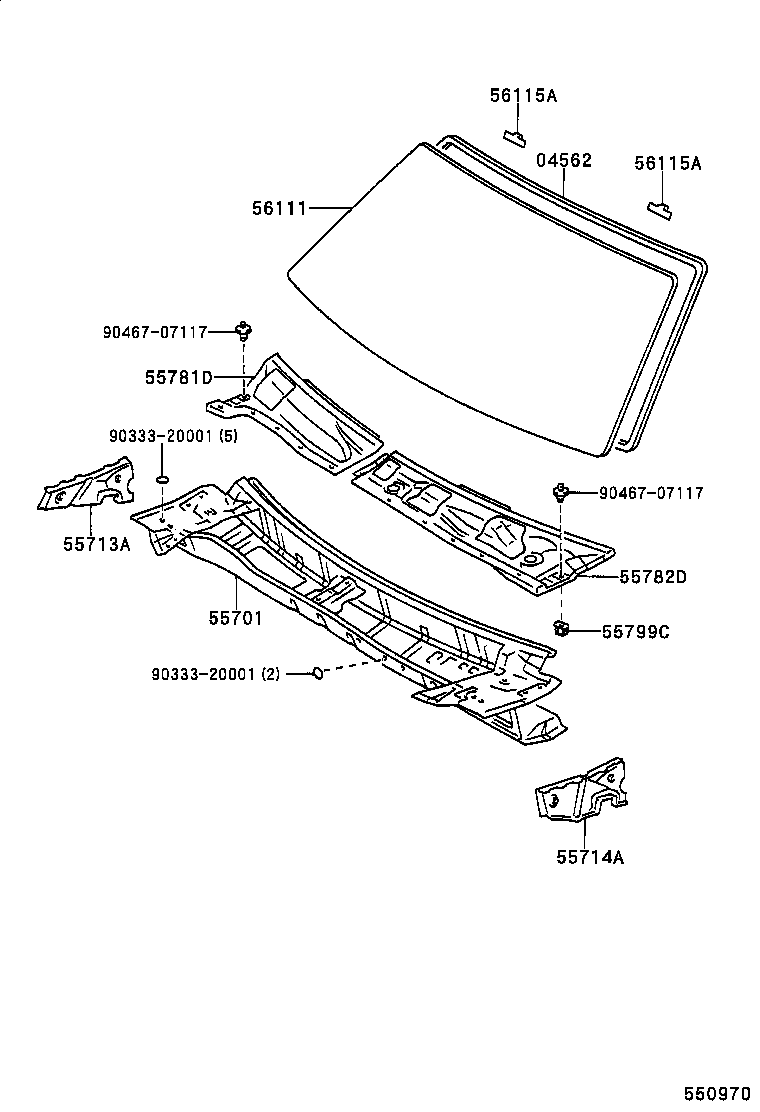

Click highlighted areas on diagram

diagram 04562 55701 55713A 55714A 55781D 55782D 55799C 56111 56115A 56115A 9033320001 9033320001 9046707117 9046707117
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-12010

MCV20,SXV20

 1
55701 - PANEL SUB-ASSY, COWL
55700-33130

MCV20,SXV20..LHD..ATM

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-33020

MCV20,SXV20

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-33020

MCV20,SXV20

 1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55781-33120

MCV20,SXV20..LHD

 1
55781-33180

MCV20,SXV20..LHD

 1
55781-33190

MCV20,SXV20..LHD

COLD SPEC

 1
55782D - LOUVER, COWL TOP VENTILATOR, LH
55782-33180

MCV20,SXV20..LHD

 1
55782-33190

MCV20,SXV20..LHD

COLD SPEC

 1
55782-33120

MCV20,SXV20..LHD

 1
56111 - GLASS, WINDSHIELD
56101-0W010

MCV20,SXV20

*LAM,T=4.7,GREEN,(L)

 2
56101-0W010

MCV20,SXV20

*LAM,T=4.7,GREEN

 1
56101-0W010

MCV20,SXV20

*LAM,T=4.7,GREEN,(L)

 1
56101-0W050

MCV20,SXV20

*LAM,T=4.7,GREEN

 1
56101-33240

MCV20,SXV20

*LAM,T=4.7,GREEN,(J)

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-33020

MCV20,SXV20

 2
56115-33040

MCV20,SXV20

 2
56115-30100

MCV20,SXV20

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-33020

MCV20,SXV20

 2
56115-33040

MCV20,SXV20

 2
56115-30100

MCV20,SXV20

 2
Common parts
90333-20001
90467-07117
