GSV40R-AETGKW (2009)
Toyota Camry
Production
Jan 2009
-
Aug 2011
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0901- )XLE ; (0901- )ACV40..RHD ; (0901-)LHD..5FC..LE ; (0903- )ATM..

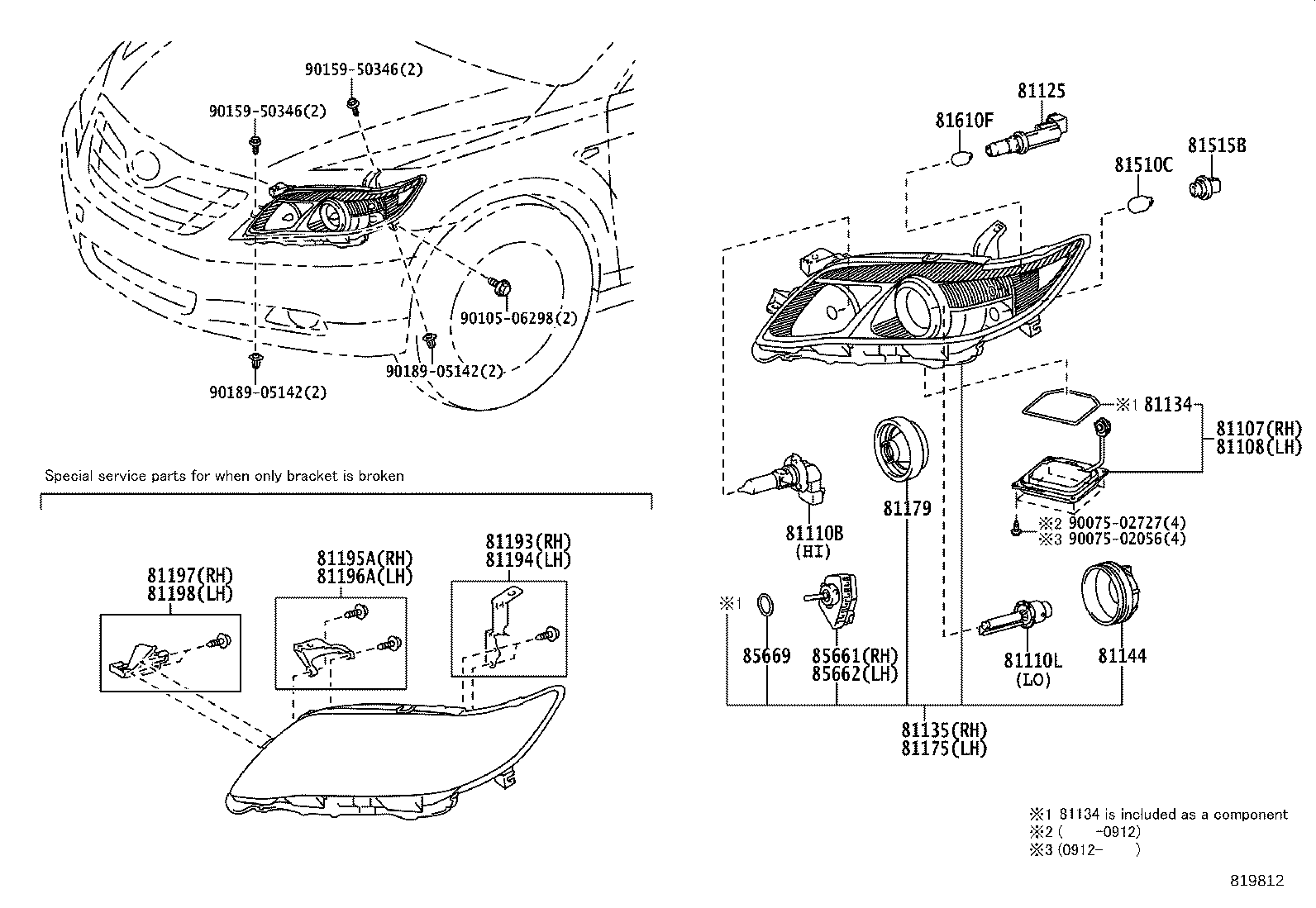

Click highlighted areas on diagram
DISCHARGE HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-33620 |
ACV40,GSV40..RHD |
1 | ||
| 81107-33620 |
GSV40;ACV40..RHD |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-33620 |
ACV40,GSV40..RHD |
1 | ||
| 81107-33620 |
GSV40;ACV40..RHD |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90080-81041 |
ACV40,GSV40 12V 65W |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20021 |
GSV40..PREM;ACV40,GSV40..RHD 45V 35W |
2 | ||
| 90981-20023 |
ACV40..RHD;GSV40..XLE 45V 35W |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-33620 |
ACV40,GSV40..RHD |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68007 |
GSV40..PREM;ACV40,GSV40..RHD |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-33620 |
ACV40,GSV40..RHD |
1 | ||
| 81145-33720 |
ACV40,GSV40..RHD |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 81135-33620 |
ACV40,GSV40..RHD |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-33720 |
ACV40,GSV40..RHD |
1 | ||
| 81185-33620 |
ACV40,GSV40..RHD |
1 | ||
| 81179 - COVER, HEADLAMP SOCKET | ||||
| 90075-65006 |
ACV40,GSV40..RHD |
2 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-33050 |
ACV40,GSV40 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-33050 |
ACV40,GSV40 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-33020 |
ACV40,GSV40 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-33020 |
ACV40,GSV40 |
1 | ||
| 81197 - BRACKET, HEADLAMP, LOWER RH | ||||
| 81197-33010 |
ACV40,GSV40 |
1 | ||
| 81198 - BRACKET, HEADLAMP, LWR LH | ||||
| 81198-33010 |
ACV40,GSV40 |
1 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ACV40,GSV40 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ACV40,GSV40 12V 5W |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12020 |
ACV40,GSV40 |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12020 |
ACV40,GSV40..RHD |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
ACV40,GSV40 |
2 | ||
| Common parts | ||||
| 90075-02056 | ||||
| 90075-02727 | ||||
| 90105-06298 | ||||
| 90159-50346 | ||||
| 90189-05142 | ||||
