GSV40R-AETGKW (2009)

Toyota Camry

Production Jan 2009 - Aug 2011
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )XLE ; (0903- )PREM

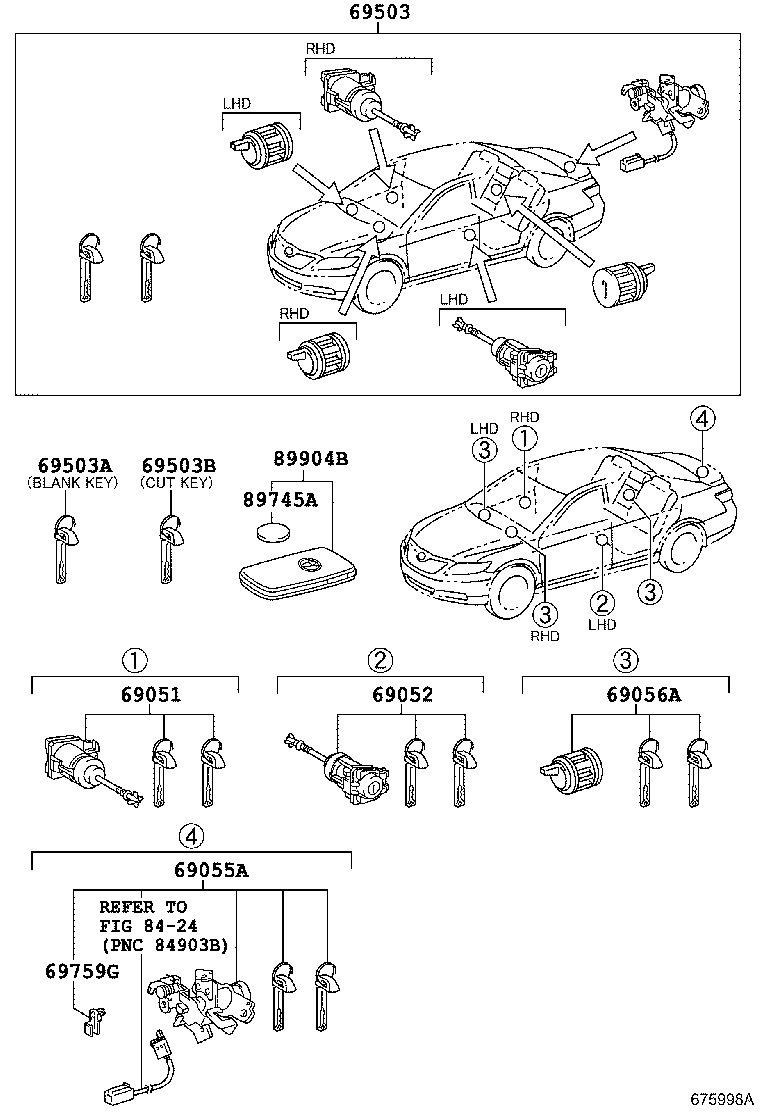

Click highlighted areas on diagram

diagram 69051 69052 69055A 69056A 69503 69503A 69503B 69759G 8424 89745A 89904B
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-33310

ACV40,GSV40

 1
69051-33300

GSV40..RHD

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-33280

ACV40,GSV40

 1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-33440

ACV40,GSV40

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-33190

ACV40,GSV40

 1
69503 - CYLINDER SET, LOCK
69005-33A70

GSV40

 1
69005-33C20

GSV40..RHD

 1
69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER
69759-24080

ACV40,GSV40

 1
89745A - BATTERY, TRANSMITTER
89745-52020

GSV40..RHD

HONG KONG SPEC

 1
89745-48030

ACV40,GSV40

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-33270

GSV40..RHD

HONG KONG SPEC

 2
89904-33250

GSV40

 2
89904-33380

GSV40..RHD

HONG KONG SPEC

 2
Linked diagrams
8424
