GSV40R-AETGKW (2006)
Toyota Camry
Production
Jan 2006
-
Jan 2009
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0601- )GSV40

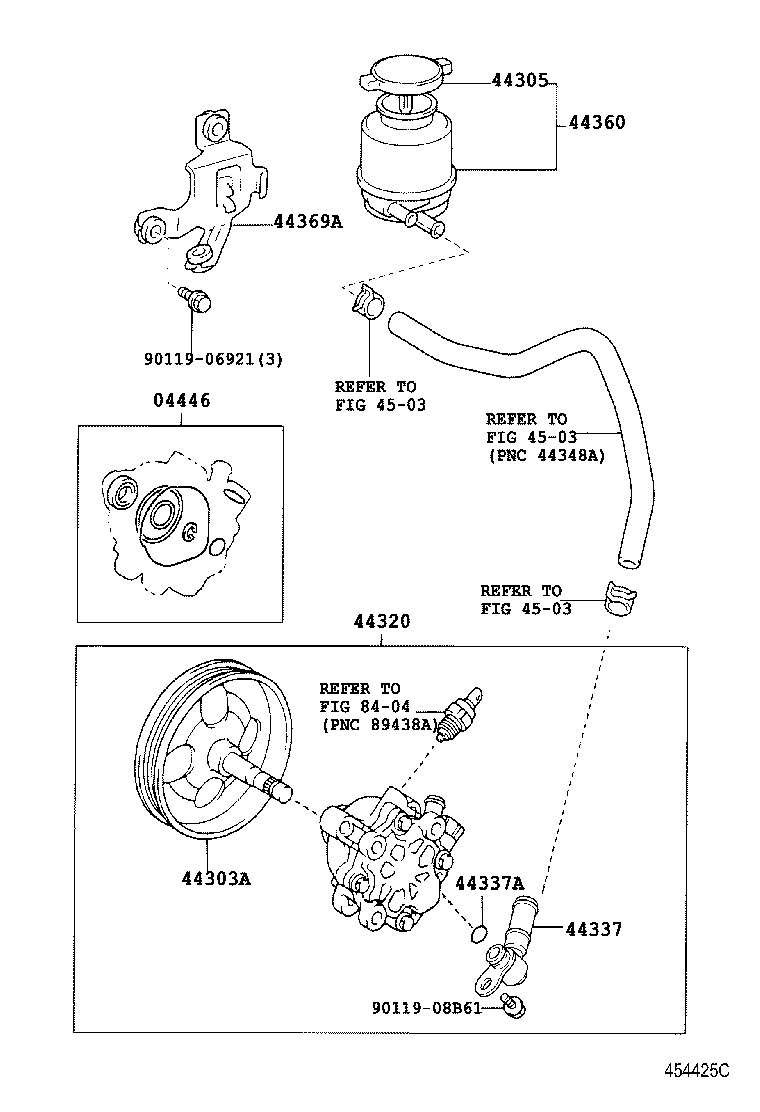

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-32050 |
ACV40,GSV40 |
1 | ||
| 44303A - SHAFT SUB-ASSY, W/PULLEY | ||||
| 44303-28010 |
ACV40,GSV40 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-28030 |
ACV40,GSV40 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44310-33170 |
GSV40 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-58010 |
GSV40 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11020 |
ACV40,GSV40 |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-33040 |
ACV40,GSV40 |
1 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44390-33020 |
ACV40,GSV40 |
1 | ||
| Common parts | ||||
| 90119-06921 | ||||
| 90119-08B61 | ||||
| Linked diagrams | ||||
| 4503 | ||||
| 8404 | ||||
