GSV40R-AETGKW (2006)

Toyota Camry

Production Jan 2006 - Jan 2009
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )2GRFE

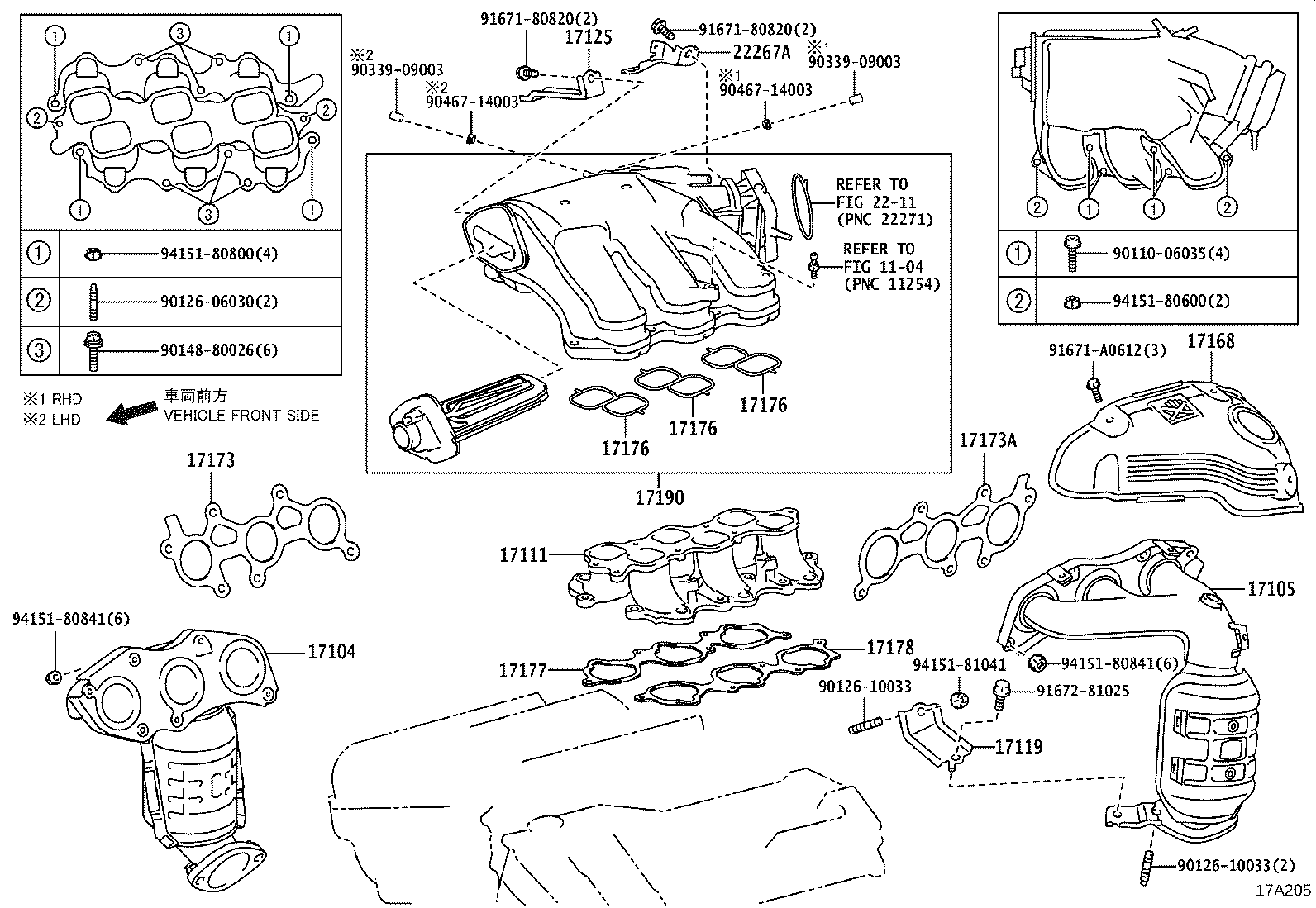

Click highlighted areas on diagram

diagram 1104 17104 17105 17111 17119 17125 17168 17173 17173A 17176 17176 17176 17177 17178 17190 2211 22267A 9011006035 9012606030 9012610033 9012610033 9014880026 9033909003 9033909003 9046714003 9046714003 9167180820 9167180820 91671A0612 9167281025 9415180600 9415180800 9415180841 9415180841 9415181041
Part # Description Qty Price
17104 - MANIFOLD SUB-ASSY, EXHAUST, RH
17140-31160

2GRFE..GSV40

*114=TOYOTA/R31160/Y

 1
17105 - MANIFOLD SUB-ASSY, EXHAUST, LH
17150-31160

2GRFE..GSV40

*114=TOYOTA/L31160/Y

 1
17111 - MANIFOLD, INTAKE
17111-31141

2GRFE..GSV40

 1
17119 - STAY, MANIFOLD, NO.2
17119-31020

2GRFE..GSV40

 1
17125 - STAY, SURGE TANK, NO.1
17125-31040

2GRFE..GSV40

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-31010

2GRFE..GSV40

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-31020

2GRFE..GSV40

 1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-31020

2GRFE..GSV40

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-31040

2GRFE..GSV40

 3
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-31040

2GRFE..GSV40

 3
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-31040

2GRFE..GSV40

 3
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-31040

2GRFE..GSV40

 1
17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17178-31030

2GRFE..GSV40

 1
17190 - TANK ASSY, INTAKE AIR SURGE
17190-31081

2GRFE..GSV40

 1
22267A - BRACKET, THROTTLE BODY
22267-31030

2GRFE..GSV40

 1
Common parts
90110-06035
90126-06030
90126-10033
90148-80026
90339-09003
90467-14003
91671-80820
91671-A0612
91672-81025
94151-80600
94151-80800
94151-80841
94151-81041
Linked diagrams
1104
2211
