GSV40L-AETGKW (2006)

Toyota Camry

Production Jan 2006 - Jan 2009
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )GSV40..LHD

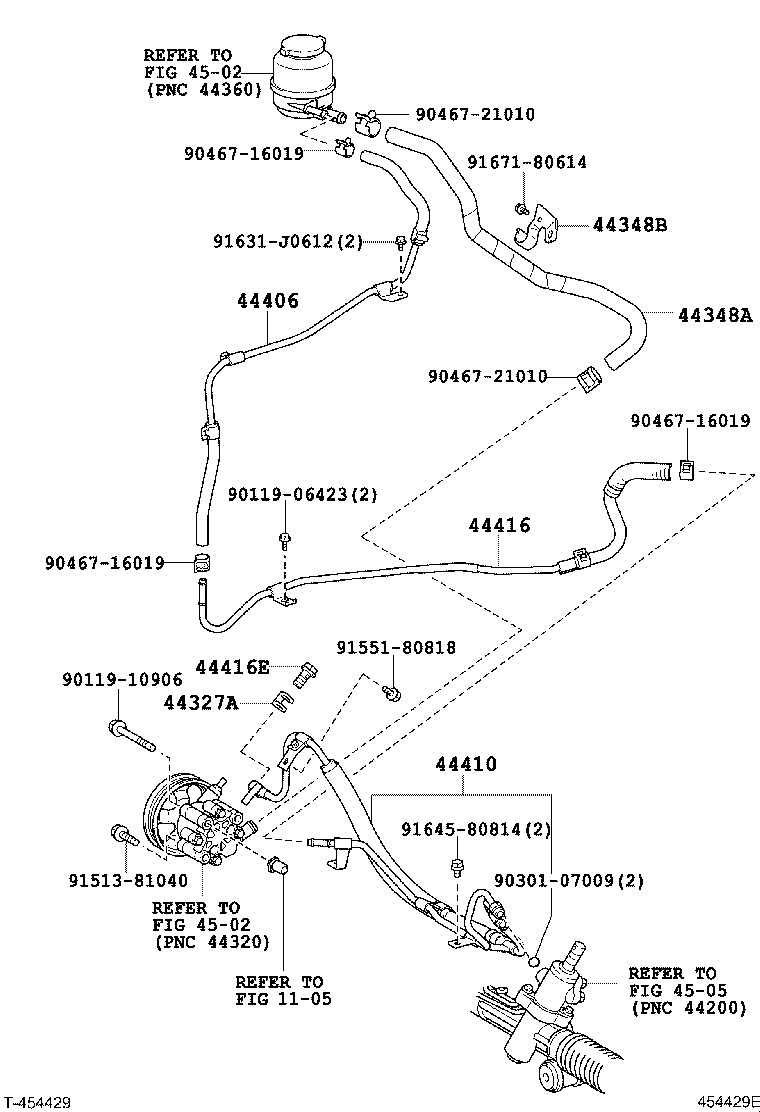

Click highlighted areas on diagram

diagram 1105 44327A 44348A 44348B 44406 44410 44416 44416E 4502 4502 4505 9011906423 9011910906 9030107009 9046716019 9046716019 9046716019 9046721010 9046721010 9151381040 9155180818 91631J0612 9164580814 9167180614
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

ACV40,GSV40

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-33250

GSV40

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
44349-41010

GSV40

 1
44406 - TUBE SUB-ASSY, RETURN
44406-33120

ACV40,GSV40

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-33240

GSV40..LHD

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-33190

GSV40..LHD

 1
44416E - BOLT, UNION(FOR RETURN TUBE)
96341-41603

ACV40,GSV40

 1
Common parts
90119-06423
90119-10906
90301-07009
90467-16019
90467-21010
91513-81040
91551-80818
91631-J0612
91645-80814
91671-80614
Linked diagrams
1105
4502
4505
