CV20RG-UWMDXW (1988)
Toyota Camry
Production
Aug 1988
-
Jun 1991
Engine
2CT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

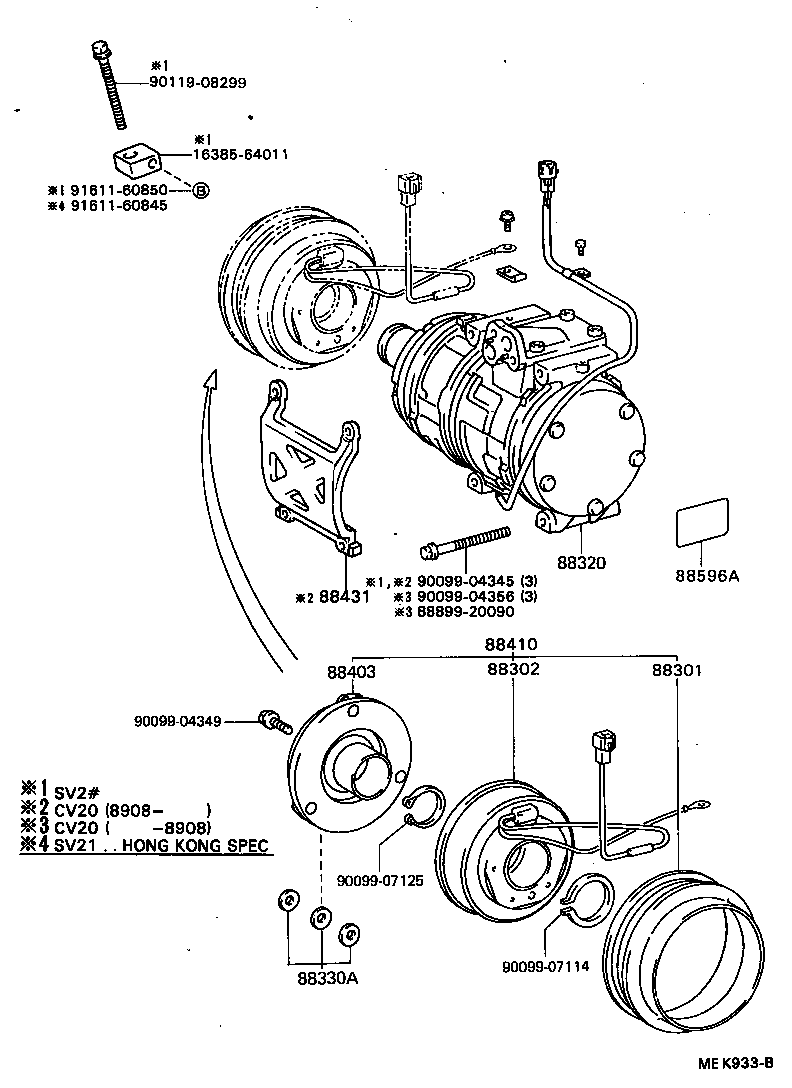

ILLUST NO. 1 OF 2(8808- )CV20,SV2#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-20090 |
CV20,SV2# |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-32021 |
CV20,SV2# |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-32070 |
SV21..WG;CV20,SV25;SV21..SED..5F;SV21..SED..LHD..4FC |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
CV20,SV2#,VZV21 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
CV20,SV2#,VZV21 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-32030 |
CV20,SV2# |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-12460 |
CV20 |
1 | ||
| 88596A - PLATE, CAUTION | ||||
| 88536-12010 |
CV20,SV2# |
1 | ||
| Common parts | ||||
| 16385-64011 | ||||
| 88899-20090 | ||||
| 90099-04345 | ||||
| 90099-04349 | ||||
| 90099-04356 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90119-08299 | ||||
| 91611-60845 | ||||
| 91611-60850 | ||||

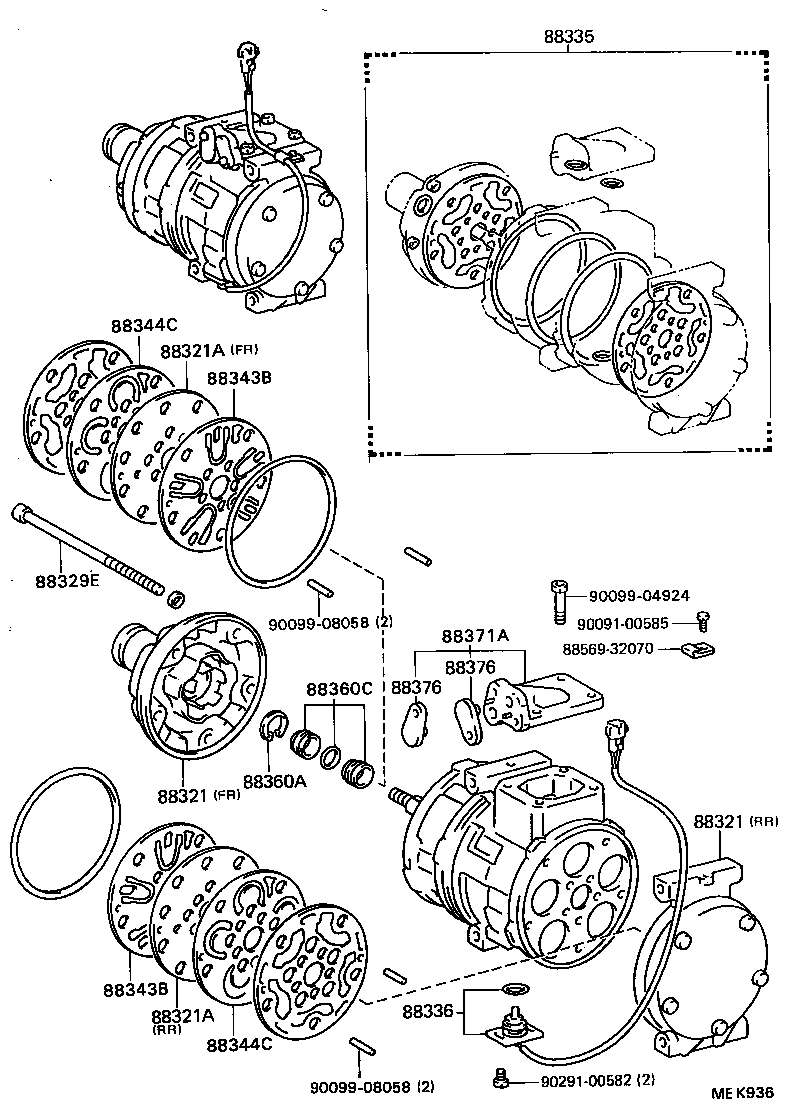

ILLUST NO. 2 OF 2(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14020 |
CV20,SV2#,VZV21 FRONT |
1 | ||
| 88342-14020 |
CV20,SV2#,VZV21 REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14020 |
CV20,SV2#,VZV21 FRONT |
1 | ||
| 88342-14020 |
CV20,SV2#,VZV21 REAR |
1 | ||
| 88329E - BOLT, COMPRESSOR, NO.1 | ||||
| 90099-04958 |
CV20,SV2#,VZV21 |
5 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-32010 |
CV20,SV2#,VZV21 |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-17010 |
CV20,SV2# |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
CV20,SV2#,VZV21 |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
CV20,SV2#,VZV21 |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14020 |
CV20,SV2#,VZV21 |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14020 |
CV20,SV2#,VZV21 |
2 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
CV20,SV2#,VZV21 |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-14040 |
CV20,SV2# |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-32050 |
CV20,SV2# |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22020 |
CV20,SV2#,VZV21 DISCHARGE |
1 | ||
| 88376-17020 |
CV20,SV2#,VZV21 SUCTION |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22020 |
CV20,SV2#,VZV21 DISCHARGE |
1 | ||
| 88376-17020 |
CV20,SV2#,VZV21 SUCTION |
1 | ||
| Common parts | ||||
| 88569-32070 | ||||
| 90091-00585 | ||||
| 90099-04924 | ||||
| 90099-08058 | ||||
| 90291-00582 | ||||
