CV20RG-UWMDXW (1988)

Toyota Camry

Production Aug 1988 - Jun 1991
Engine 2CT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8808- )CV20,SV2#

Click highlighted areas on diagram

diagram 55905A 55905A 55905A 55905A 55906A 55907A 55908A 55910 5592814011 5593310010 5593310010 5593310010 5593310010 8302 8401 8401 8712 9048013015 9048013020 9356755016
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-32190

CV20,SV2#

LEVER TYPE

 4
55905A - KNOB, HEATER CONTROL
55905-32190

CV20,SV2#

LEVER TYPE

 4
55905A - KNOB, HEATER CONTROL
55905-32190

CV20,SV2#

LEVER TYPE

 4
55905A - KNOB, HEATER CONTROL
55905-32190

CV20,SV2#

LEVER TYPE

 4
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-32050

CV20,SV2#..RHD

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-32030

CV20,SV2#..RHD

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-32050

CV20,SV2#..RHD

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-32060

CV20,SV2#..RHD

 1
Common parts
55928-14011
55933-10010
90480-13015
90480-13020
93567-55016
Linked diagrams
8302
8401
8712

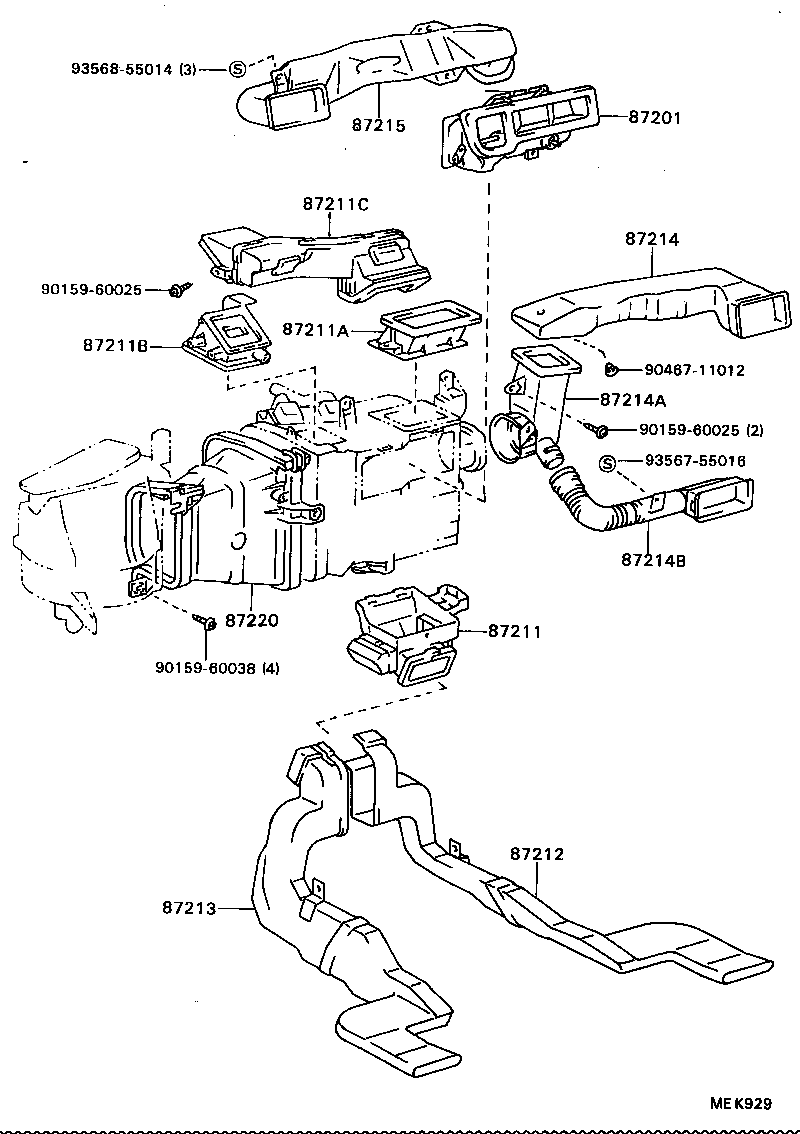

ILLUST NO. 2 OF 2(8808- )RHD

Click highlighted areas on diagram

diagram 87201 87211 87211A 87211B 87211C 87212 87213 87214 87214A 87214B 87215 87220 9015960025 9015960025 9015960038 9046711012 9356755016 9356855014
Part # Description Qty Price
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-32130

CV20,SV2#,VZV21..RHD

 1
87211 - DUCT, AIR, NO.1
87201-32160

CV20,SV2#,VZV21..RHD

 1
87211A - DUCT, AIR, NO.2
87211-32030

CV20,SV2#,VZV21..RHD

 1
87211B - DUCT, AIR, NO.3
87201-32180

CV20,SV2#,VZV21..RHD

 1
87211C - DUCT, AIR, NO.4
87201-32200

CV20,SV2#,VZV21..RHD

 1
87212 - DUCT, AIR, REAR NO.1
87212-32010

CV20,SV21,VZV21

 1
87213 - DUCT, AIR, REAR NO.2
87213-32010

CV20,SV2#,VZV21

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55084-32070

CV20,SV2#,VZV21..RHD

 1
87214A - DUCT, AIR, SIDE NO.2 RH
55085-32070

CV20,SV2#,VZV21..RHD

 1
55085-32091

CV20,SV2#,VZV21..RHD

W(AIR CONDITIONER)

 1
87214B - DUCT, AIR, SIDE NO.3 RH
55088-32041

CV20,SV2#,VZV21..RHD

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55086-32061

CV20,SV2#,VZV21..RHD

 1
87220 - DUCT ASSY, AIR
87220-32010

CV20,SV2#,VZV21..RHD

 1
Common parts
90159-60025
90159-60038
90467-11012
93567-55016
93568-55014
