CV20RG-UWMDXW (1988)

Toyota Camry

Production Aug 1988 - Jun 1991
Engine 2CT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

Click highlighted areas on diagram

PILLER ANTENNA

diagram 8271189108 86300 86393 9015040005 9015040005
Part # Description Qty Price
86300 - ANTENNA ASSY, W/HOLDER
86300-32101

CV20,SV2#..RHD

W(PILLAR ANTENNA)

 1
86300-32140

CV20,SV21..WG

W(POWER ANTENNA)

 1
86300-32141

CV20,SV21..WG

W(POWER ANTENNA)

 1
86393 - ORNAMENT, ANTENNA
86392-20031

CV20,SV2#

 1
Common parts
82711-89108
90150-40005

(8808- )

Click highlighted areas on diagram

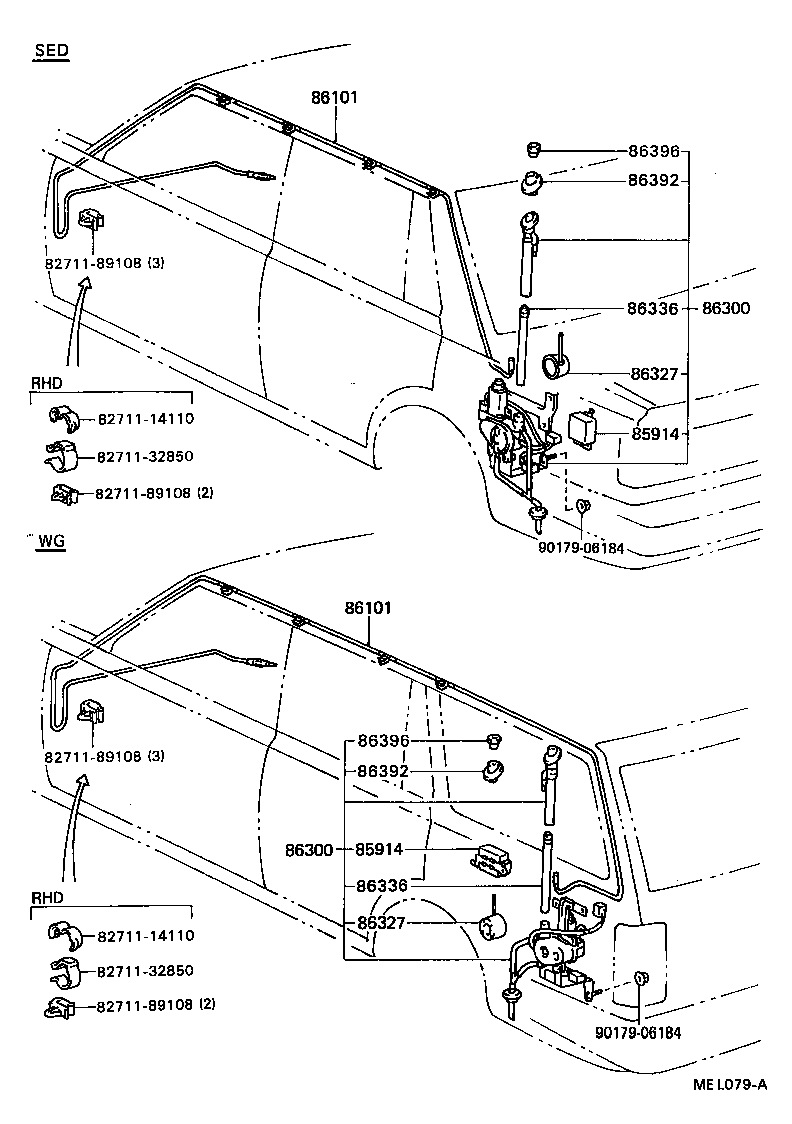

POWER ANTENNA

diagram 8271114110 8271114110 8271132850 8271132850 8271189108 8271189108 8271189108 8271189108 85914 85914 86101 86101 86300 86300 86327 86327 86336 86336 86392 86392 86396 86396 9017906184 9017906184
Part # Description Qty Price
85914 - RELAY, MOTOR ANTENNA CONTROL
85914-14020

CV20,SV2#,VZV21

 1
85914 - RELAY, MOTOR ANTENNA CONTROL
85914-14020

CV20,SV2#,VZV21

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-32030

CV20,SV21,VZV21..WG

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-32030

CV20,SV21,VZV21..WG

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-32101

CV20,SV2#..RHD

W(PILLAR ANTENNA)

 1
86300-32140

CV20,SV21..WG

W(POWER ANTENNA)

 1
86300-32141

CV20,SV21..WG

W(POWER ANTENNA)

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-32101

CV20,SV2#..RHD

W(PILLAR ANTENNA)

 1
86300-32140

CV20,SV21..WG

W(POWER ANTENNA)

 1
86300-32141

CV20,SV21..WG

W(POWER ANTENNA)

 1
86327 - CABLE, W/ANTENNA DRUM
86327-22211

CV20,SV21..WG

 1
86327 - CABLE, W/ANTENNA DRUM
86327-22211

CV20,SV21..WG

 1
86336 - ROD & PIPE, SHIELD
86336-14350

CV20,SV21..WG

 1
86336 - ROD & PIPE, SHIELD
86336-14350

CV20,SV21..WG

 1
86392 - ORNAMENT, ANTENNA
86392-32050

CV20,SV21,VZV21..WG

 1
86392 - ORNAMENT, ANTENNA
86392-32050

CV20,SV21,VZV21..WG

 1
86396 - NUT, ANTENNA
86396-14041

CV20,SV2#,VZV21

 1
86396 - NUT, ANTENNA
86396-14041

CV20,SV2#,VZV21

 1
Common parts
82711-14110
82711-32850
82711-89108
90179-06184
