CV20RG-UWMDXW (1988)

Toyota Camry

Production Aug 1988 - Jun 1991
Engine 2CT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )WG

Click highlighted areas on diagram

diagram 52023 52067 52068 52159 52167A 52168A 52185B 52186B 52191A 52191A 52561 52565A 52615 9010906081 9011906022 9011912039 9015906249 9015960249 9017906007 9018906006 9018906013 9018906029 9018906036 9046710091 9046804079 9046804144 9356715012
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-32090

CV20,SV21,VZV21..WG

 1
52067 - SUPPORT SUB-ASSY, REAR BUMPER SIDE, RH
52067-32020

CV20,SV21,VZV21..WG

 1
52068 - SUPPORT SUB-ASSY, REAR BUMPER SIDE, LH
52068-32020

CV20,SV21,VZV21..WG

 1
52159 - COVER, REAR BUMPER
52159-32200

CV20,SV21..WG..(XL,XLI)

 1
52159-32912

CV20,SV21..WG..(XL,XLI)

W(URETHANE BUMPER)

 1
52167A - SUPPORT, REAR BUMPER SIDE, NO.4 RH
52167-32040

CV20,SV21..WG..(XL,XLI)

W(URETHANE BUMPER)

 1
52167-32030

CV20,SV21..WG..(XL,XLI)

 1
52168A - SUPPORT, REAR BUMPER SIDE, NO.4 LH
52168-32030

CV20,SV21..WG..(XL,XLI)

 1
52168-32040

CV20,SV21..WG..(XL,XLI)

W(URETHANE BUMPER)

 1
52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH
52185-32010

CV20,SV21,VZV21..WG

 1
52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH
52186-32010

CV20,SV21,VZV21..WG

 1
52191A - SEAL, REAR BUMPER ARM
52191-32010

CV20,SV21..WG..(XL,XLI)

 2
52191-32020

CV20,SV21..WG..(XL,XLI)

W(URETHANE BUMPER)

 2
52191A - SEAL, REAR BUMPER ARM
52191-32010

CV20,SV21..WG..(XL,XLI)

 2
52191-32020

CV20,SV21..WG..(XL,XLI)

W(URETHANE BUMPER)

 2
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-32030

CV20,SV21,VZV21..WG

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-12040

CV20,SV21..XL,XLI

 8
52565-32030

CV20,SV21..WG..(XL,XLI)

W(URETHANE BUMPER)

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-32060

CV20,SV21,VZV21..WG

 1
Common parts
90109-06081
90119-06022
90119-12039
90159-06249
90159-60249
90179-06007
90189-06006
90189-06013
90189-06029
90189-06036
90467-10091
90468-04079
90468-04144
93567-15012

(8808- )WG

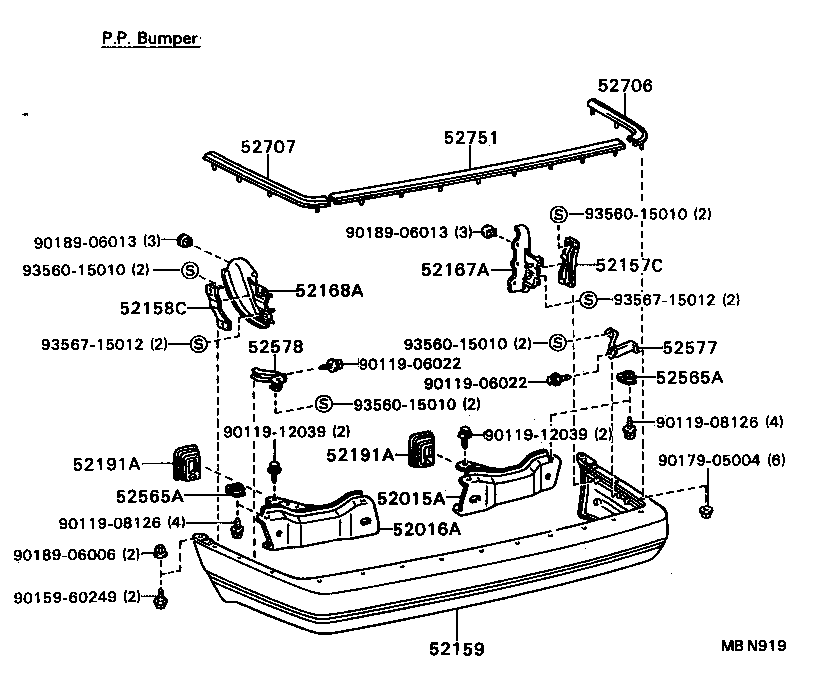

Click highlighted areas on diagram

diagram 52015A 52016A 52157C 52158C 52159 52167A 52168A 52191A 52191A 52565A 52565A 52577 52578 52706 52707 52751 9011906022 9011906022 9011908126 9011908126 9011912039 9011912039 9015960249 9017905004 9018906006 9018906013 9018906013 9356015010 9356015010 9356015010 9356015010 9356715012 9356715012
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-32090

CV20,SV21..WG..(XL,XLI)

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-32020

CV20,SV21..WG..(XL,XLI)

 1
52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-32070

CV20,SV21..WG..(XL,XLI)

 1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-32050

CV20,SV21..WG..(XL,XLI)

 1
52159 - COVER, REAR BUMPER
52159-32200

CV20,SV21..WG..(XL,XLI)

 1
52159-32912

CV20,SV21..WG..(XL,XLI)

W(URETHANE BUMPER)

 1
52167A - SUPPORT, REAR BUMPER SIDE, NO.4 RH
52167-32040

CV20,SV21..WG..(XL,XLI)

W(URETHANE BUMPER)

 1
52167-32030

CV20,SV21..WG..(XL,XLI)

 1
52168A - SUPPORT, REAR BUMPER SIDE, NO.4 LH
52168-32030

CV20,SV21..WG..(XL,XLI)

 1
52168-32040

CV20,SV21..WG..(XL,XLI)

W(URETHANE BUMPER)

 1
52191A - SEAL, REAR BUMPER ARM
52191-32010

CV20,SV21..WG..(XL,XLI)

 2
52191-32020

CV20,SV21..WG..(XL,XLI)

W(URETHANE BUMPER)

 2
52191A - SEAL, REAR BUMPER ARM
52191-32010

CV20,SV21..WG..(XL,XLI)

 2
52191-32020

CV20,SV21..WG..(XL,XLI)

W(URETHANE BUMPER)

 2
52565A - RETAINER, REAR BUMPER, LOWER
52565-12040

CV20,SV21..XL,XLI

 8
52565-32030

CV20,SV21..WG..(XL,XLI)

W(URETHANE BUMPER)

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-12040

CV20,SV21..XL,XLI

 8
52565-32030

CV20,SV21..WG..(XL,XLI)

W(URETHANE BUMPER)

 1
52577 - RETAINER, REAR BUMPER SIDE, NO.2 RH
52577-32040

CV20,SV21..XL,XLI

 1
52578 - RETAINER, REAR BUMPER SIDE, NO.2 LH
52578-32040

CV20,SV21..XL,XLI

 1
52706 - MOULDING SUB-ASSY, REAR BUMPER SIDE, RH
52706-32040

CV20,SV21..XL,XLI

 1
52707 - MOULDING SUB-ASSY, REAR BUMPER SIDE, LH
52707-32040

CV20,SV21..XL,XLI

 1
52751 - MOULDING, REAR BUMPER
52751-32040

CV20,SV21..XL,XLI

 1
Common parts
90119-06022
90119-08126
90119-12039
90159-60249
90179-05004
90189-06006
90189-06013
93560-15010
93567-15012
