CV20RG-UWMDXW (1986)
Toyota Camry
ILLUST NO. 2 OF 2(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63203A - HOUSING SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63203-32030 |
CV20,SV2#,VZV21 |
1 | ||
| 63203-32030 |
CV20,SV2# |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-32010 |
CV20,SV2# |
1 | ||
| 63207-32010 |
CV20,SV2#,VZV21 |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-32010 |
CV20,SV2# |
1 | ||
| 63208-32010 |
CV20,SV2#,VZV21 |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-32011 |
CV20,SV2# |
1 | ||
| 63210 - GLASS SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63201-32032 |
CV20,SV2#..WG |
1 | ||
| 63201-32032 |
CV20,SV20,21..WG |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-3201005 |
CV20,SV2#,VZV21 LIGHT BEIGE,TRIM3#,4# |
1 | ||
| 63217-3201003 |
CV20,SV21..WG..RHD W(MOON ROOF),LIGHT GRAY,TRIM1#,8# |
1 | ||
| 63217-32010B0 |
CV20..XL;SV21..WG;SV20,25,VZV21..LHD;CV20,SV21..SED..LHD..(GL,GLI,XLI) W(MOON ROOF),LIGHT GRAY,TRIM1#,8# |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-20080 |
CV20,SV2# FR |
2 | ||
| 63249-32060 |
CV20,SV20,21..WG RR |
2 | ||
| 63249-32060 |
CV20,SV2#..WG RR |
2 | ||
| 63249-20080 |
CV20,SV2#,VZV21 FR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-20080 |
CV20,SV2# FR |
2 | ||
| 63249-32060 |
CV20,SV20,21..WG RR |
2 | ||
| 63249-32060 |
CV20,SV2#..WG RR |
2 | ||
| 63249-20080 |
CV20,SV2#,VZV21 FR |
2 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-32010B0 |
CV20..XL;SV21..WG;SV20,25,VZV21..LHD;CV20,SV21..SED..LHD..(GL,GLI,XLI) W(MOON ROOF),LIGHT GRAY,TRIM1#,8# |
1 | ||
| 63218-3201003 |
CV20,SV21..WG..RHD W(MOON ROOF),LIGHT GRAY,TRIM1#,8# |
1 | ||
| 63218-3201005 |
CV20,SV2#,VZV21 LIGHT BEIGE,TRIM3#,4# |
1 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-3201105 |
CV20,SV2# BEIGE,LIGHT BEIGE,TRIM3#,4# |
1 | ||
| 63219-3201105 |
CV20,SV2#,VZV21 LIGHT BEIGE,TRIM3#,4# |
1 | ||
| 63219-3201103 |
CV20,SV2# GRAY,LIGHT GRAY,TRIM1#,8# |
1 | ||
| 63219-32011B0 |
CV20..XL;SV21..WG;SV20,25,VZV21..LHD;CV20,SV21..SED..LHD..(GL,GLI,XLI) W(MOON ROOF),LIGHT GRAY,TRIM1#,8# |
1 | ||
| 63219-3201103 |
CV20,SV21..WG..RHD W(MOON ROOF),LIGHT GRAY,TRIM1#,8# |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-32010 |
CV20,SV2#,VZV21 |
1 | ||
| 63221-32010 |
CV20,SV2# |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-32010 |
CV20,SV2#,VZV21 |
1 | ||
| 63223-32010 |
CV20,SV2# |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-32010 |
CV20,SV2# |
1 | ||
| 63224-32010 |
CV20,SV2#,VZV21 |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-24010 |
CV20,SV2# |
2 | ||
| 63239-24010 |
CV20,SV2#,VZV21 |
2 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-32010 |
CV20,SV2# |
2 | ||
| 63255-32010 |
CV20,SV2#,VZV21 |
2 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-32010 |
CV20,SV2# |
2 | ||
| 63255-32010 |
CV20,SV2#,VZV21 |
2 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-32010 |
CV20,SV2# |
1 | ||
| 63260-32010 |
CV20,SV2#,VZV21 |
1 | ||
| 63261 - SHOE, SLIDING ROOF, FRONT | ||||
| 63262-32010 |
CV20,SV2# LH |
1 | ||
| 63262-32010 |
CV20,SV2#,VZV21 LH |
1 | ||
| 63261-32010 |
CV20,SV2# RH |
1 | ||
| 63261-32010 |
CV20,SV2#,VZV21 RH |
1 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-24010 |
CV20,SV2# RR,T=2.0 |
8 | ||
| 63277-30020 |
CV20,SV2# RR,T=1.0 |
8 | ||
| 63277-32010 |
CV20,SV2#,VZV21 FR,T=2.0 |
1 | ||
| 63277-30020 |
CV20,SV2#,VZV21 RR,T=1.0 |
1 | ||
| 63277-24010 |
CV20,SV2#,VZV21 RR,T=2.0 |
1 | ||
| 63277-32010 |
CV20,SV2# FR,T=2.0 |
4 | ||
| 63277-32020 |
CV20,SV2# FR,T=1.0 |
4 | ||
| 63277-32020 |
CV20,SV2#,VZV21 FR,T=1.0 |
1 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-24010 |
CV20,SV2# RR,T=2.0 |
8 | ||
| 63277-30020 |
CV20,SV2# RR,T=1.0 |
8 | ||
| 63277-32010 |
CV20,SV2#,VZV21 FR,T=2.0 |
1 | ||
| 63277-30020 |
CV20,SV2#,VZV21 RR,T=1.0 |
1 | ||
| 63277-24010 |
CV20,SV2#,VZV21 RR,T=2.0 |
1 | ||
| 63277-32010 |
CV20,SV2# FR,T=2.0 |
4 | ||
| 63277-32020 |
CV20,SV2# FR,T=1.0 |
4 | ||
| 63277-32020 |
CV20,SV2#,VZV21 FR,T=1.0 |
1 | ||
| 63635A - GARNISH, SLIDING ROOF, FRONT | ||||
| 63635-3201103 |
CV20..XL;SV21..WG;SV20,25,VZV21..LHD;CV20,SV21..SED..LHD..(GL,GLI,XLI) W(MOON ROOF),LIGHT GRAY,TRIM1#,8# |
1 | ||
| 63635-32011B0 |
CV20..XL;SV21..WG;SV20,25,VZV21..LHD;CV20,SV21..SED..LHD..(GL,GLI,XLI) W(MOON ROOF),LIGHT GRAY,TRIM1#,8# |
1 | ||
| 63635-3201105 |
CV20,SV2#,VZV21 LIGHT BEIGE,TRIM3#,4# |
1 | ||
| 63699A - SEAL, SLIDING ROOF GUIDE RAIL | ||||
| 63699-12040 |
CV20,SV2#,VZV21 |
1 | ||
| 63699-32010 |
CV20,SV2# |
1 | ||
| Common parts | ||||
| 90159-60080 | ||||
| 90159-60219 | ||||
| 90162-50007 | ||||
| 90168-40027 | ||||
| 90179-05011 | ||||
| 90179-06070 | ||||
| 90179-06115 | ||||
| 90189-05044 | ||||
| 90189-06043 | ||||
| 90333-30002 | ||||
| 90467-14001 | ||||
| 90468-05017 | ||||
| 90468-16009 | ||||
| 93382-16012 | ||||

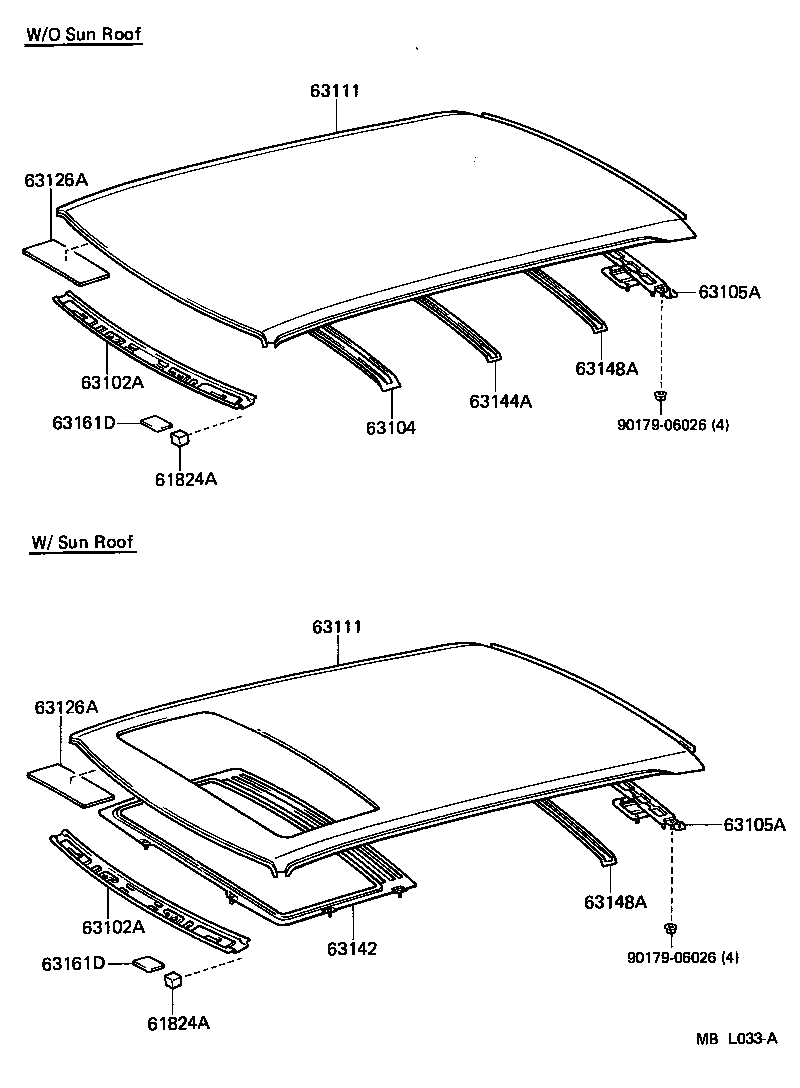

ILLUST NO. 1 OF 2(8610- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61824A - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12010 |
CV20,SV2#..WG |
2 | ||
| 61824-12010 |
CV20,SV20,21..WG |
2 | ||
| 61824A - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12010 |
CV20,SV2#..WG |
2 | ||
| 61824-12010 |
CV20,SV20,21..WG |
2 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-32050 |
CV20,SV2#..XL,XLI |
1 | ||
| 63102-32050 |
CV20,SV20,21..XL,XLI |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-32050 |
CV20,SV2#..XL,XLI |
1 | ||
| 63102-32050 |
CV20,SV20,21..XL,XLI |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63141-32040 |
CV20,SV2#..WG |
1 | ||
| 63141-32040 |
CV20,SV20,21..WG |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-32040 |
CV20,SV2#..WG |
1 | ||
| 63105-32040 |
CV20,SV20,21..WG |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-32040 |
CV20,SV2#..WG |
1 | ||
| 63105-32040 |
CV20,SV20,21..WG |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-32080 |
CV20,SV2#..WG W/SUN ROOF |
1 | ||
| 63111-32080 |
CV20,SV20,21..WG W(MOON ROOF) |
1 | ||
| 63111-32070 |
CV20,SV20,21..WG |
1 | ||
| 63111-32070 |
CV20,SV2#..WG |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-32080 |
CV20,SV2#..WG W/SUN ROOF |
1 | ||
| 63111-32080 |
CV20,SV20,21..WG W(MOON ROOF) |
1 | ||
| 63111-32070 |
CV20,SV20,21..WG |
1 | ||
| 63111-32070 |
CV20,SV2#..WG |
1 | ||
| 63126A - DAMPER, WINDSHIELD HEADER PANEL | ||||
| 63126-32010 |
CV20,SV20,21,VZV21 |
2 | ||
| 63126-32010 |
CV20,SV2# |
2 | ||
| 63126A - DAMPER, WINDSHIELD HEADER PANEL | ||||
| 63126-32010 |
CV20,SV20,21,VZV21 |
2 | ||
| 63126-32010 |
CV20,SV2# |
2 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-32030 |
CV20,SV20,21..WG |
1 | ||
| 63142-32030 |
CV20,SV2#..WG |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-32020 |
CV20,SV20,21..WG |
1 | ||
| 63144-32020 |
CV20,SV2#..WG |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-32010 |
CV20,SV20,21..WG |
1 | ||
| 63148-32010 |
CV20,SV2#..WG |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-32010 |
CV20,SV20,21..WG |
1 | ||
| 63148-32010 |
CV20,SV2#..WG |
1 | ||
| 63161D - PLATE, ROOF HEADER PANEL, NO.1 | ||||
| 63161-22010 |
CV20,SV2#..WG |
2 | ||
| 63161-22010 |
CV20,SV20,21..WG |
2 | ||
| 63161D - PLATE, ROOF HEADER PANEL, NO.1 | ||||
| 63161-22010 |
CV20,SV2#..WG |
2 | ||
| 63161-22010 |
CV20,SV20,21..WG |
2 | ||
| Common parts | ||||
| 90179-06026 | ||||
