CV20R-UEMNXW (1988)
Toyota Camry
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-32170 |
CV20,SV2#,VZV21..RHD RH |
1 | ||
| 85035-32180 |
CV20,SV2#,VZV21..RHD LH |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-32170 |
CV20,SV2#,VZV21..RHD RH |
1 | ||
| 85035-32180 |
CV20,SV2#,VZV21..RHD LH |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-32030 |
CV20,SV2#,VZV21 W(HEADLAMP CLEANER) |
1 | ||
| 85310-16050 |
CV20,SV2#,VZV21 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85331-32140 |
CV20,SV2#,VZV21 |
1 | ||
| 85331-32180 |
CV20,SV2#,VZV21 W(HEADLAMP CLEANER) |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
CV20,SV2#,VZV21 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-32161 |
CV20,SV2#,VZV21 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
CV20,SV2#,VZV21 |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-32150 |
CV20,SV2#,VZV21 |
1 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
CV20,SV2#,VZV21 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33299 |
CV20,SV2#,VZV21 *H,L=280,NO.1 |
1 | ||
| 90446-06013 |
CV20,SV2#,VZV21 *H,L=125,NO.2 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33299 |
CV20,SV2#,VZV21 *H,L=280,NO.1 |
1 | ||
| 90446-06013 |
CV20,SV2#,VZV21 *H,L=125,NO.2 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33299 |
CV20,SV2#,VZV21..RHD L=1000 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
CV20,SV2#..RHD *H,L=550,LH |
1 | ||
| 90099-33299 |
CV20,SV2#..RHD L=1000,LH |
1 | ||
| 90099-33299 |
CV20,SV2#,VZV21 *H,L=50,RH |
1 | ||
| 90099-33299 |
CV20,SV2#,VZV21..RHD L=1000,RH |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
CV20,SV2#..RHD *H,L=550,LH |
1 | ||
| 90099-33299 |
CV20,SV2#..RHD L=1000,LH |
1 | ||
| 90099-33299 |
CV20,SV2#,VZV21 *H,L=50,RH |
1 | ||
| 90099-33299 |
CV20,SV2#,VZV21..RHD L=1000,RH |
1 | ||
| Common parts | ||||
| 16581-63030 | ||||
| 85373-32010 | ||||
| 90099-04301 | ||||
| 90099-04987 | ||||
| 90119-06110 | ||||
| 90179-06026 | ||||
| 90179-06242 | ||||
| 90464-00151 | ||||
| 90464-00300 | ||||
| 90989-01034 | ||||
| 91655-40616 | ||||
(8808- )
W/HEADLAMP CLEANAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-32170 |
CV20,SV2#,VZV21..RHD RH |
1 | ||
| 85035-32180 |
CV20,SV2#,VZV21..RHD LH |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-32170 |
CV20,SV2#,VZV21..RHD RH |
1 | ||
| 85035-32180 |
CV20,SV2#,VZV21..RHD LH |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-32030 |
CV20,SV2#,VZV21 W(HEADLAMP CLEANER) |
1 | ||
| 85310-16050 |
CV20,SV2#,VZV21 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85331-32140 |
CV20,SV2#,VZV21 |
1 | ||
| 85331-32180 |
CV20,SV2#,VZV21 W(HEADLAMP CLEANER) |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
CV20,SV2#,VZV21 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-32161 |
CV20,SV2#,VZV21 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
CV20,SV2#,VZV21 |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-32150 |
CV20,SV2#,VZV21 |
1 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
CV20,SV2#,VZV21 |
1 | ||
| 85361 - HOLDER, WINDSHIELD WASHER | ||||
| 85363-32180 |
CV20,SV2#,VZV21 NO.3 |
1 | ||
| 85361-32180 |
CV20,SV2#,VZV21 NO.1 |
1 | ||
| 85317-32010 |
CV20,SV21,VZV21 NO.1 |
1 | ||
| 85362-32180 |
CV20,SV2#,VZV21 NO.2 |
1 | ||
| 85361 - HOLDER, WINDSHIELD WASHER | ||||
| 85363-32180 |
CV20,SV2#,VZV21 NO.3 |
1 | ||
| 85361-32180 |
CV20,SV2#,VZV21 NO.1 |
1 | ||
| 85317-32010 |
CV20,SV21,VZV21 NO.1 |
1 | ||
| 85362-32180 |
CV20,SV2#,VZV21 NO.2 |
1 | ||
| 85361 - HOLDER, WINDSHIELD WASHER | ||||
| 85363-32180 |
CV20,SV2#,VZV21 NO.3 |
1 | ||
| 85361-32180 |
CV20,SV2#,VZV21 NO.1 |
1 | ||
| 85317-32010 |
CV20,SV21,VZV21 NO.1 |
1 | ||
| 85362-32180 |
CV20,SV2#,VZV21 NO.2 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33299 |
CV20,SV2#,VZV21 *H,L=280,NO.1 |
1 | ||
| 90446-06013 |
CV20,SV2#,VZV21 *H,L=125,NO.2 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33299 |
CV20,SV2#,VZV21 *H,L=280,NO.1 |
1 | ||
| 90446-06013 |
CV20,SV2#,VZV21 *H,L=125,NO.2 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33299 |
CV20,SV2#,VZV21..RHD L=1000 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
CV20,SV2#..RHD *H,L=550,LH |
1 | ||
| 90099-33299 |
CV20,SV2#..RHD L=1000,LH |
1 | ||
| 90099-33299 |
CV20,SV2#,VZV21 *H,L=50,RH |
1 | ||
| 90099-33299 |
CV20,SV2#,VZV21..RHD L=1000,RH |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
CV20,SV2#..RHD *H,L=550,LH |
1 | ||
| 90099-33299 |
CV20,SV2#..RHD L=1000,LH |
1 | ||
| 90099-33299 |
CV20,SV2#,VZV21 *H,L=50,RH |
1 | ||
| 90099-33299 |
CV20,SV2#,VZV21..RHD L=1000,RH |
1 | ||
| Common parts | ||||
| 16581-63030 | ||||
| 85373-32010 | ||||
| 90119-06110 | ||||
| 90179-06026 | ||||
| 90179-06242 | ||||
| 90464-00151 | ||||
| 90464-00300 | ||||
| 90989-01034 | ||||
| 91655-40616 | ||||

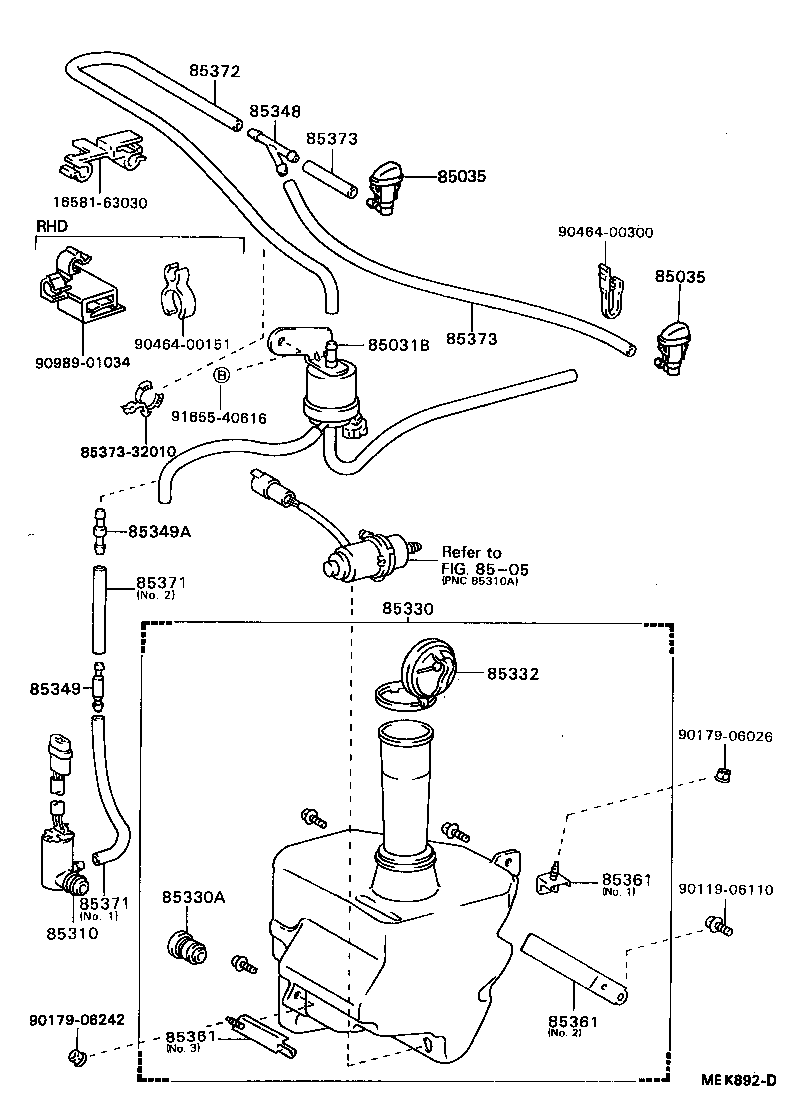

| Linked diagrams | ||||
| 8505 | ||||
