CV20R-UEMNXW (1988)

Toyota Camry

Production Aug 1988 - Jun 1991
Engine 2CT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

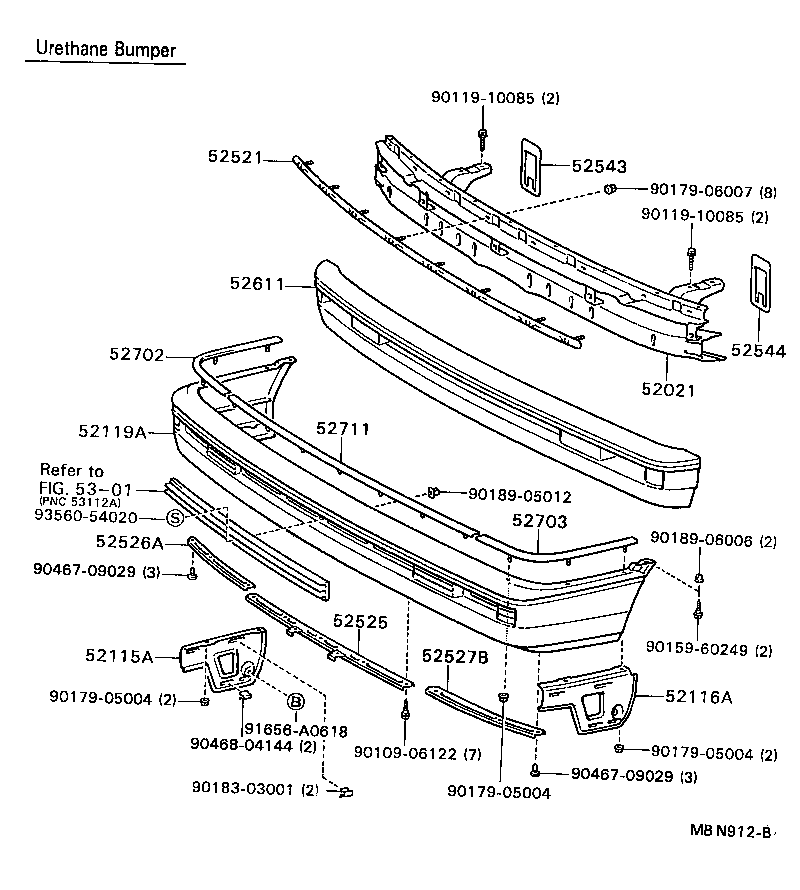

Click highlighted areas on diagram

diagram 52021 52115A 52116A 52119A 52521 52525 52526A 52527B 52543 52544 52611 52702 52703 52711 5301 9010906122 9011910085 9011910085 9015960249 9017905004 9017905004 9017905004 9017906007 9018303001 9018905012 9018906006 9046709029 9046709029 9046804144 91656A0618 9356054020
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-32050

CV20,SV2#,VZV21

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-32030

CV20,SV2#,VZV21..GL,GLI,GXI

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-32030

CV20,SV2#,VZV21..GL,GLI,GXI

 1
52119A - COVER, FRONT BUMPER
52119-32906

CV20,SV2#,VZV21

W(HEADLAMP CLEANER & COLORED URETHANE BUMPER)

 1
52119-32905

CV20,SV2#,VZV21..GL,GLI,GXI

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-32070

CV20,SV2#,VZV21

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52525-32040

CV20,SV2#,VZV21

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52526-32050

CV20,SV2#,VZV21..GL,GLI,GXI

 1
52527B - RETAINER, FRONT BUMPER, LOWER NO.2
52527-32020

CV20,SV2#,VZV21

 1
52543 - SEAL, FRONT BUMPER SIDE, RH
52543-32020

CV20,SV2#,VZV21..GL,GLI,GXI

 1
52544 - SEAL, FRONT BUMPER SIDE, LH
52543-32020

CV20,SV2#,VZV21..GL,GLI,GXI

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-32080

CV20,SV2#,VZV21

 1
52702 - MOULDING SUB-ASSY, FRONT BUMPER SIDE, RH
52702-32030

CV20,SV2#,VZV21..GL,GLI,GXI

 1
52703 - MOULDING SUB-ASSY, FRONT BUMPER SIDE, LH
52703-32030

CV20,SV2#,VZV21..GL,GLI,GXI

 1
52711 - MOULDING, FRONT BUMPER
52711-32030

CV20,SV2#,VZV21..GL,GLI,GXI

 1
Common parts
90109-06122
90119-10085
90159-60249
90179-05004
90179-06007
90183-03001
90189-05012
90189-06006
90467-09029
90468-04144
91656-A0618
93560-54020
Linked diagrams
5301

(8808- )

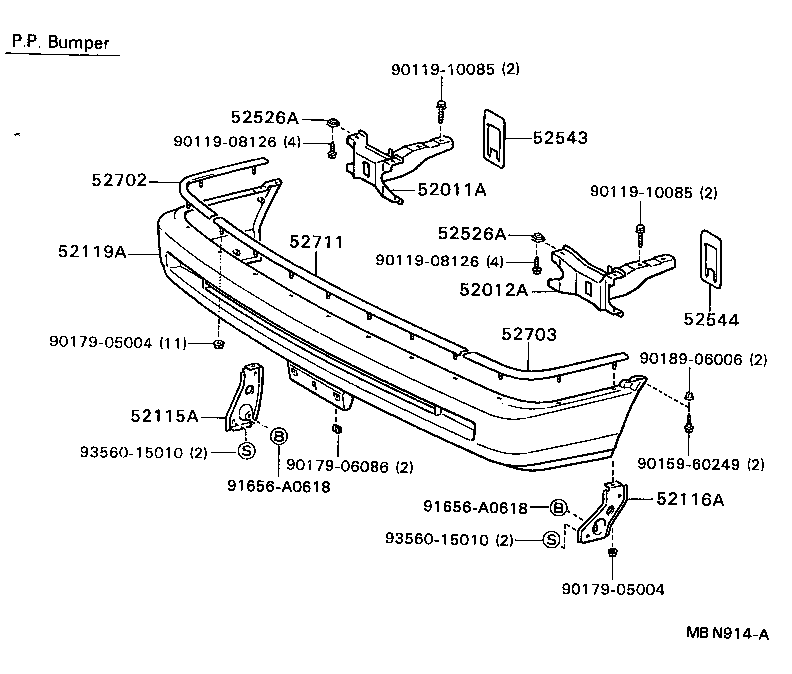

Click highlighted areas on diagram

diagram 52011A 52012A 52115A 52116A 52119A 52526A 52526A 52543 52544 52702 52703 52711 9011908126 9011908126 9011910085 9011910085 9015960249 9017905004 9017905004 9017906086 9018906006 91656A0618 91656A0618 9356015010 9356015010
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-32030

CV20,SV2#,VZV21..GL,GLI,GXI

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-32030

CV20,SV2#,VZV21..GL,GLI,GXI

 1
52119A - COVER, FRONT BUMPER
52119-32906

CV20,SV2#,VZV21

W(HEADLAMP CLEANER & COLORED URETHANE BUMPER)

 1
52119-32905

CV20,SV2#,VZV21..GL,GLI,GXI

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52526-32050

CV20,SV2#,VZV21..GL,GLI,GXI

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52526-32050

CV20,SV2#,VZV21..GL,GLI,GXI

 1
52543 - SEAL, FRONT BUMPER SIDE, RH
52543-32020

CV20,SV2#,VZV21..GL,GLI,GXI

 1
52544 - SEAL, FRONT BUMPER SIDE, LH
52543-32020

CV20,SV2#,VZV21..GL,GLI,GXI

 1
52702 - MOULDING SUB-ASSY, FRONT BUMPER SIDE, RH
52702-32030

CV20,SV2#,VZV21..GL,GLI,GXI

 1
52703 - MOULDING SUB-ASSY, FRONT BUMPER SIDE, LH
52703-32030

CV20,SV2#,VZV21..GL,GLI,GXI

 1
52711 - MOULDING, FRONT BUMPER
52711-32030

CV20,SV2#,VZV21..GL,GLI,GXI

 1
Common parts
90119-08126
90119-10085
90159-60249
90179-05004
90179-06086
90189-06006
91656-A0618
93560-15010
