CV20R-UEMNXW (1986)

Toyota Camry

Production Oct 1986 - Aug 1988
Engine 2CT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )

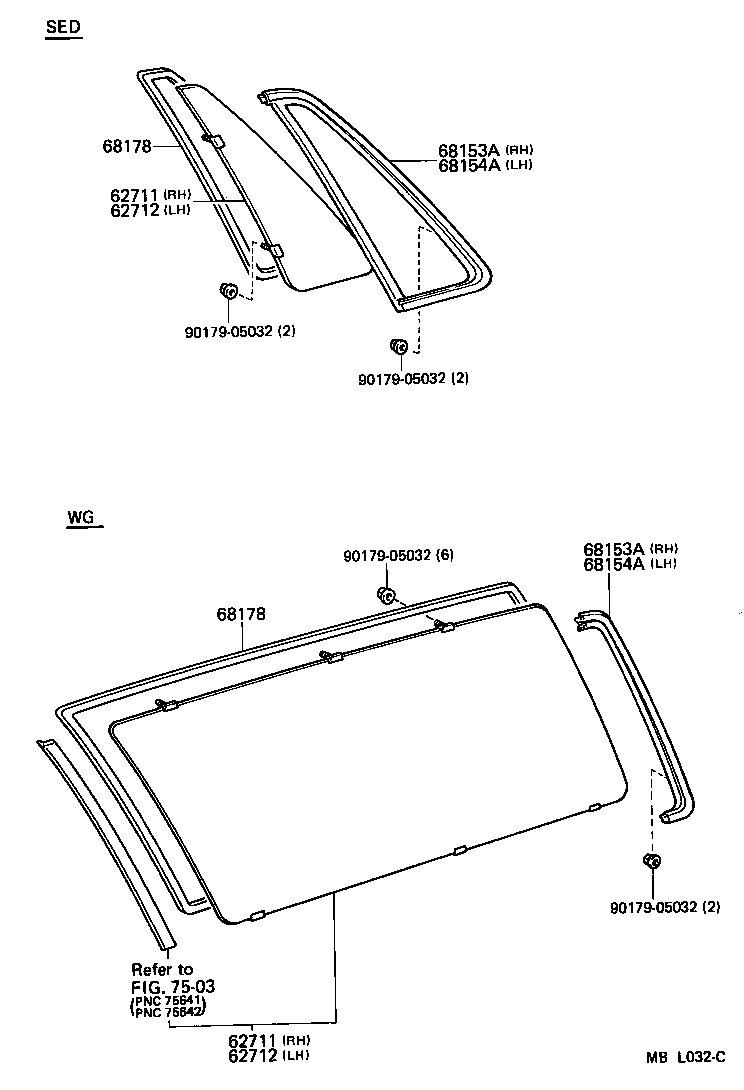

Click highlighted areas on diagram

diagram 62711 62711 62712 62712 68153A 68153A 68154A 68154A 68178 68178 7503 9017905032 9017905032 9017905032 9017905032
Part # Description Qty Price
62711 - GLASS, QUARTER WINDOW, RH
62711-32180

CV20,SV2#..SED

*TT.T=3.5,*TT,T=3.5

 1
62711-32210

CV20,SV21..SED..(GL,GLI)

*TT.T=3.5,BRONZE,BRONZE,*TT,T=3.5

 1
62711-32180

CV20,SV2#,VZV21..SED

*TT.T=3.5

 1
62711-32210

CV20,SV21,25,VZV21..SED..(GL,GLI,GXI)

*TT.T=3.5,BRONZE

 1
62711 - GLASS, QUARTER WINDOW, RH
62711-32180

CV20,SV2#..SED

*TT.T=3.5,*TT,T=3.5

 1
62711-32210

CV20,SV21..SED..(GL,GLI)

*TT.T=3.5,BRONZE,BRONZE,*TT,T=3.5

 1
62711-32180

CV20,SV2#,VZV21..SED

*TT.T=3.5

 1
62711-32210

CV20,SV21,25,VZV21..SED..(GL,GLI,GXI)

*TT.T=3.5,BRONZE

 1
62712 - GLASS, QUARTER WINDOW, LH
62712-32240

CV20,SV2#..SED

*TT,T=3.5,*TT,T=3.5

 1
62712-32190

CV20,SV21,25,VZV21..SED..(GL,GLI,GXI)

*TT,T=3.5,BRONZE

 1
62712-32190

CV20,SV21..SED..(GL,GLI)

*TT,T=3.5,BRONZE,BRONZE,*TT,T=3.5

 1
62712-32240

CV20,SV2#,VZV21..SED

*TT,T=3.5

 1
62712 - GLASS, QUARTER WINDOW, LH
62712-32240

CV20,SV2#..SED

*TT,T=3.5,*TT,T=3.5

 1
62712-32190

CV20,SV21,25,VZV21..SED..(GL,GLI,GXI)

*TT,T=3.5,BRONZE

 1
62712-32190

CV20,SV21..SED..(GL,GLI)

*TT,T=3.5,BRONZE,BRONZE,*TT,T=3.5

 1
62712-32240

CV20,SV2#,VZV21..SED

*TT,T=3.5

 1
68153A - MOULDING, QUARTER WINDOW NO.2 GLASS, RH
68153-32040

CV20,SV2#..SED

 1
68153-32040

CV20,SV2#,VZV21..SED

 1
68153A - MOULDING, QUARTER WINDOW NO.2 GLASS, RH
68153-32040

CV20,SV2#..SED

 1
68153-32040

CV20,SV2#,VZV21..SED

 1
68154A - MOULDING, QUARTER WINDOW NO.2 GLASS, LH
68154-32040

CV20,SV2#..SED

 1
68154-32040

CV20,SV2#,VZV21..SED

 1
68154A - MOULDING, QUARTER WINDOW NO.2 GLASS, LH
68154-32040

CV20,SV2#..SED

 1
68154-32040

CV20,SV2#,VZV21..SED

 1
68178 - SEAL, QUARTER WINDOW NO.2 GLASS
68177-32030

CV20,SV2#

 2
68177-32030

CV20,SV2#,VZV21

 1
68178 - SEAL, QUARTER WINDOW NO.2 GLASS
68177-32030

CV20,SV2#

 2
68177-32030

CV20,SV2#,VZV21

 1
Common parts
90179-05032
Linked diagrams
7503
