CV20R-UEMNXW (1986)

Toyota Camry

Production Oct 1986 - Aug 1988
Engine 2CT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )RHD

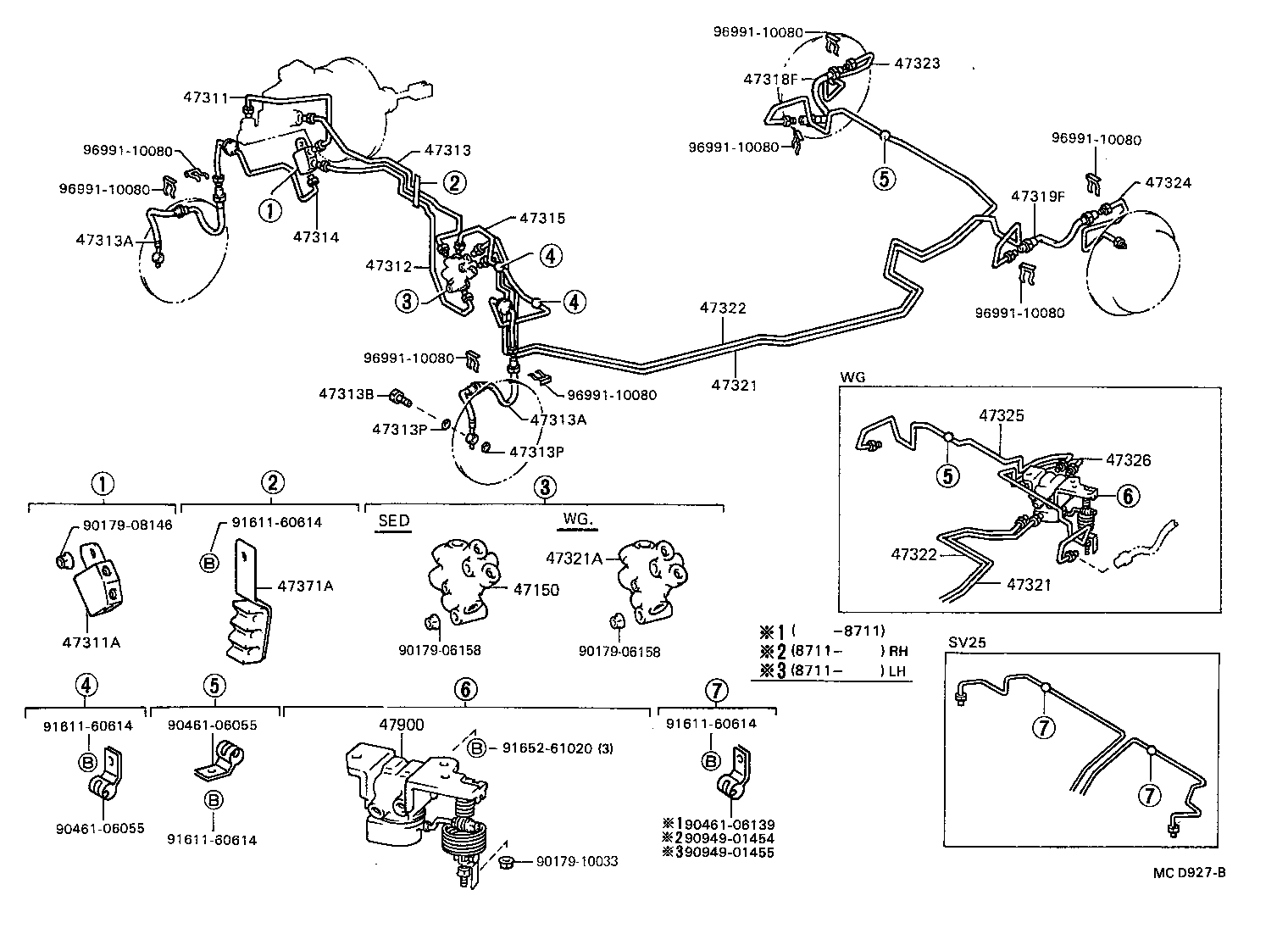

Click highlighted areas on diagram

diagram 47150 47311 47311A 47312 47313 47313A 47313A 47313B 47313P 47313P 47314 47315 47318F 47319F 47321 47321 47321A 47322 47322 47323 47324 47325 47326 47371A 47900 9017906158 9017906158 9017908146 9017910033 9046106055 9046106055 9046106139 9094901454 9094901455 9161160614 9161160614 9161160614 9161160614 9165261020 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-16040

CV20,SV20,21,VZV21..SED

 1
47150-20130

CV20,SV2#..SED

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-32080

CV20,SV21,25..RHD

 1
47311-32080

CV20,SV21..RHD

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10193

CV20,SV21..RHD

 1
90413-10193

CV20,SV21,25..RHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-32080

CV20..RHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-32070

CV20..RHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02496

CV20,SV2#

 2
90947-02496

CV20..RHD;SV21,25,VZV21

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02496

CV20,SV2#

 2
90947-02496

CV20..RHD;SV21,25,VZV21

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

CV20,SV2#,VZV21

 2
90401-10015

CV20,SV2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

CV20,SV2#,VZV21

 4
90430-10074

CV20,SV2#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

CV20,SV2#,VZV21

 4
90430-10074

CV20,SV2#

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-32070

CV20..RHD

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-32060

CV20,SV21,25..RHD

 1
47315-32060

CV20,SV21..RHD

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02497

CV20,SV2#

 1
90947-02497

CV20,SV20,21

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02497

CV20,SV2#

 1
90947-02497

CV20,SV20,21

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-32110

CV20,SV20,21,VZV21..SED

 1
47321-32110

CV20,SV2#..SED

 1
47321-32050

CV20,SV2#..SED

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-32110

CV20,SV20,21,VZV21..SED

 1
47321-32110

CV20,SV2#..SED

 1
47321-32050

CV20,SV2#..SED

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-32040

CV20,SV2#..SED

 1
47322-32100

CV20,SV2#..SED

 1
47322-32100

CV20,SV20,21,VZV21..SED

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-32040

CV20,SV2#..SED

 1
47322-32100

CV20,SV2#..SED

 1
47322-32100

CV20,SV20,21,VZV21..SED

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-32040

CV20,SV2#..SED

 1
47323-32040

CV20,SV20,21..SED

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-32040

CV20,SV2#..SED

 1
47324-32040

CV20,SV20,21..SED

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-32010

CV20,SV21,25..RHD

 1
47371-32010

CV20,SV21..RHD

 1
Common parts
90179-06158
90179-08146
90179-10033
90461-06055
90461-06139
90949-01454
90949-01455
91611-60614
91652-61020
96991-10080

(8610- )RHD

Click highlighted areas on diagram

diagram 47312A 47313A 47313A 47313B 47313H 47313P 47313P 47315 47316 47317 47318 47318D 47318E 47318E 47318F 47319 47319F 47321 47322 47323 47324 47371A 47372 47373B 9017906158 9046106055 9046106139 9048001413 9094901454 9094901455 9161160614 9161160614 9161160614 9161160614 9161160614 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02496

CV20,SV2#

 2
90947-02496

CV20..RHD;SV21,25,VZV21

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02496

CV20,SV2#

 2
90947-02496

CV20..RHD;SV21,25,VZV21

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

CV20,SV2#,VZV21

 2
90401-10015

CV20,SV2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

CV20,SV2#,VZV21

 4
90430-10074

CV20,SV2#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

CV20,SV2#,VZV21

 4
90430-10074

CV20,SV2#

 4
47315 - TUBE, FRONT BRAKE, NO.5
47315-32060

CV20,SV21,25..RHD

 1
47315-32060

CV20,SV21..RHD

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02497

CV20,SV2#

 1
90947-02497

CV20,SV20,21

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02497

CV20,SV2#

 1
90947-02497

CV20,SV20,21

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-32110

CV20,SV20,21,VZV21..SED

 1
47321-32110

CV20,SV2#..SED

 1
47321-32050

CV20,SV2#..SED

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-32040

CV20,SV2#..SED

 1
47322-32100

CV20,SV2#..SED

 1
47322-32100

CV20,SV20,21,VZV21..SED

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-32040

CV20,SV2#..SED

 1
47323-32040

CV20,SV20,21..SED

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-32040

CV20,SV2#..SED

 1
47324-32040

CV20,SV20,21..SED

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-32010

CV20,SV21,25..RHD

 1
47371-32010

CV20,SV21..RHD

 1
Common parts
90179-06158
90461-06055
90461-06139
90480-01413
90949-01454
90949-01455
91611-60614
96991-10080
