CV20LG-UWMDXW (1986)
Toyota Camry
ILLUST NO. 3 OF 5(8610- )
CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12770 | ||||
| 82711-14350 | ||||
| 82711-1A040 | ||||
| 82711-1A150 | ||||
| 82711-1A300 | ||||
| 82711-20410 | ||||
| 82711-20850 | ||||
| 82711-22220 | ||||
| 82711-22270 | ||||
| 82711-24070 | ||||
| 82711-32070 | ||||
| 82711-32100 | ||||
| 82711-32501 | ||||
| 82711-32511 | ||||
| 82711-32520 | ||||
| 82711-32540 | ||||
| 82711-32600 | ||||
| 82711-32620 | ||||
| 82711-32640 | ||||
| 82711-32650 | ||||
| 82711-32660 | ||||
| 82711-32670 | ||||
| 82711-32720 | ||||
| 82711-32730 | ||||
| 82711-32780 | ||||
ILLUST NO. 3 OF 5(8610- )
CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-14110 | ||||
| 82711-20880 | ||||
| 82711-22140 | ||||
| 82711-32810 | ||||
| 82711-32830 | ||||
| 82711-32840 | ||||
| 82711-3H030 | ||||
| 82711-3H090 | ||||
| 90461-08066 | ||||
| 90461-08202 | ||||
| 90464-00248 | ||||

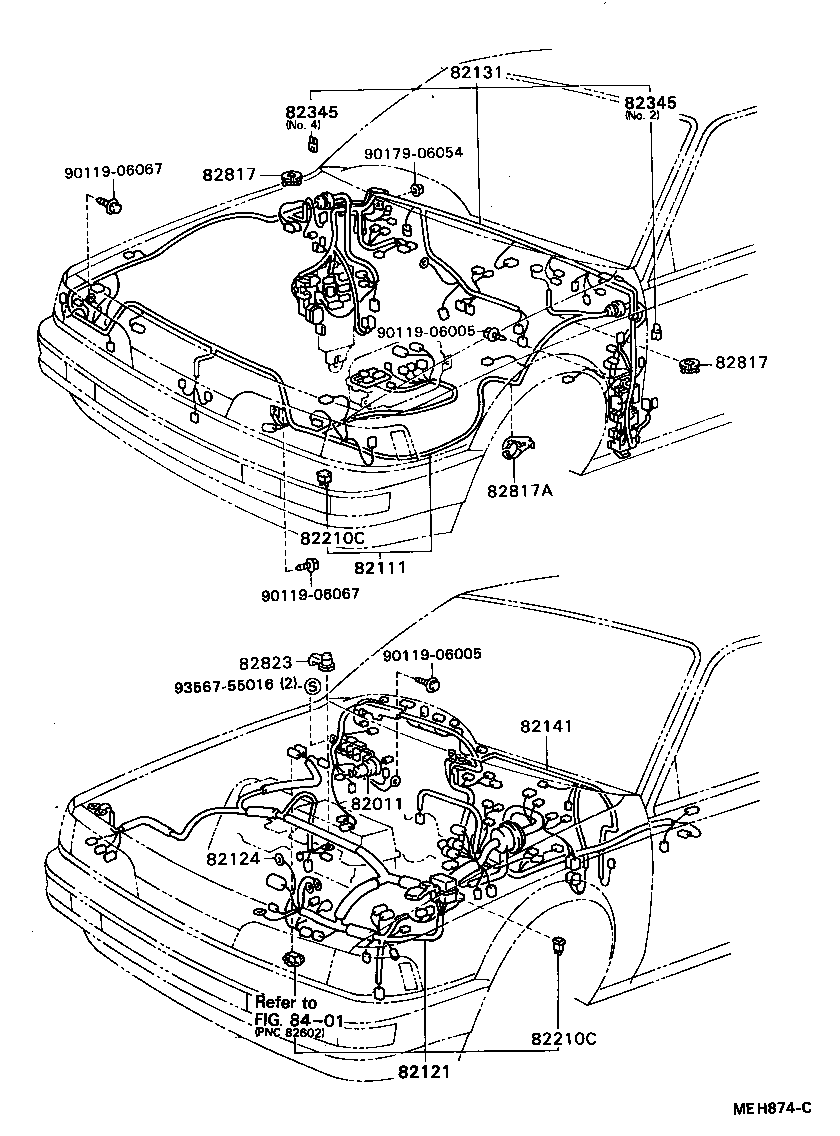

ILLUST NO. 1 OF 5(8610- )CV20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82011 - WIRING ASSY, BRAKE WARNING SYSTEM | ||||
| 82011-20040 |
CV20 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-32100 |
CV20..LHD |
1 | ||
| 82111-32101 |
CV20..LHD |
1 | ||
| 82111-32102 |
CV20..LHD |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-32720 |
CV20..LHD |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12030 |
CV20 |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-3H270 |
CV20,SV2#..LHD..EUG FINLAND OR NORWAY SPEC |
1 | ||
| 82131-3H271 |
CV20,SV2#..LHD..EUG FINLAND OR NORWAY SPEC |
1 | ||
| 82131-3H241 |
CV20,SV2#..LHD |
1 | ||
| 82131-3H271 |
CV20,SV20,21..LHD..(XL,XLI)..EUG FINLAND OR NORWAY SPEC |
1 | ||
| 82131-3H240 |
CV20,SV2#..LHD |
1 | ||
| 82131-3H242 |
CV20,SV2#..LHD |
1 | ||
| 82131-3H272 |
CV20,SV20,21..LHD..(XL,XLI)..EUG FINLAND OR NORWAY SPEC |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-32101 |
CV20,SV2#..LHD |
1 | ||
| 82141-32100 |
CV20,SV2#..LHD |
1 | ||
| 82141-32102 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
CV20,SV2# 30A,TERM.:FEMALE,PNK,30A |
4 | ||
| 90982-08189 |
CV20,SV2#,VZV21 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08203 |
CV20,SV2# 80A,TERM.:MALE,BLK,80A |
1 | ||
| 90982-08203 |
CV20,SV2#,VZV21 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08189 |
CV20,SV2# 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 90982-08188 |
CV20,SV2#,VZV21 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
CV20,SV2# 30A,TERM.:FEMALE,PNK,30A |
4 | ||
| 90982-08189 |
CV20,SV2#,VZV21 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08203 |
CV20,SV2# 80A,TERM.:MALE,BLK,80A |
1 | ||
| 90982-08203 |
CV20,SV2#,VZV21 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08189 |
CV20,SV2# 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 90982-08188 |
CV20,SV2#,VZV21 30A,TERM.:FEMALE,PNK |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
CV20,SV2# COWL WIRE,NO.2 |
2 | ||
| 82345-20060 |
CV20,SV2# COWL WIRE,NO.4 |
1 | ||
| 82345-20040 |
CV20,SV2#,VZV21..LHD COWL WIRE,NO.2 |
1 | ||
| 82345-20060 |
CV20,SV2#,VZV21 COWL WIRE,NO.4 |
1 | ||
| 82345-20040 |
CV20,SV2#,VZV21..LHD FLOOR,NO,2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
CV20,SV2# COWL WIRE,NO.2 |
2 | ||
| 82345-20060 |
CV20,SV2# COWL WIRE,NO.4 |
1 | ||
| 82345-20040 |
CV20,SV2#,VZV21..LHD COWL WIRE,NO.2 |
1 | ||
| 82345-20060 |
CV20,SV2#,VZV21 COWL WIRE,NO.4 |
1 | ||
| 82345-20040 |
CV20,SV2#,VZV21..LHD FLOOR,NO,2 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32420 |
CV20,SV2# |
1 | ||
| 82817-32420 |
CV20,SV20,21,VZV21 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32420 |
CV20,SV2# |
1 | ||
| 82817-32420 |
CV20,SV20,21,VZV21 |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32310 |
CV20,SV2# |
1 | ||
| 82817-32310 |
CV20,SV20,21,VZV21 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-20040 |
CV20 ALTERNATOR |
1 | ||
| 82823-20040 |
CV20 ALTERNATOR |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||
| 90179-06054 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 5(8610- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-32390 |
CV20,SV2#..WG..LHD |
1 | ||
| 82161-32391 |
CV20,SV2#..WG..LHD |
1 | ||
| 82161-32391 |
CV20,SV20,21..WG..LHD |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-32060 |
CV20,SV20,21,VZV21..LHD |
1 | ||
| 82163-32060 |
CV20,SV2#..LHD |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-32100 |
CV20,SV2#..LHD..(XL,XLI) |
1 | ||
| 82171-32100 |
CV20,SV20,21..LHD..(XL,XLI) |
1 | ||
| 82171-32120 |
CV20,SV2#,VZV21..LHD W(MOON ROOF) |
1 | ||
| 82171-32120 |
CV20,SV2#..LHD W/*SNR |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-32200 |
CV20,SV2#..WG |
1 | ||
| 82181-32200 |
CV20,SV20,21..WG |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-32020 |
CV20,SV2#..WG W/REAR SPEAKER |
1 | ||
| 82183-32020 |
CV20,SV20,21..WG W(REAR SPEAKER) |
1 | ||
| 82183-32030 |
CV20,SV2#..WG |
1 | ||
| 82183-32030 |
CV20,SV20,21..WG |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-32030 |
CV20,SV20,21..WG |
1 | ||
| 82184-32030 |
CV20,SV2#..WG |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-32060 |
CV20,SV20,21..WG..LHD |
1 | ||
| 82185-32060 |
CV20,SV2#..WG..LHD |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
CV20,SV2# COWL WIRE,NO.2 |
2 | ||
| 82345-20060 |
CV20,SV2# COWL WIRE,NO.4 |
1 | ||
| 82345-20040 |
CV20,SV2#,VZV21..LHD COWL WIRE,NO.2 |
1 | ||
| 82345-20060 |
CV20,SV2#,VZV21 COWL WIRE,NO.4 |
1 | ||
| 82345-20040 |
CV20,SV2#,VZV21..LHD FLOOR,NO,2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
CV20,SV2# COWL WIRE,NO.2 |
2 | ||
| 82345-20060 |
CV20,SV2# COWL WIRE,NO.4 |
1 | ||
| 82345-20040 |
CV20,SV2#,VZV21..LHD COWL WIRE,NO.2 |
1 | ||
| 82345-20060 |
CV20,SV2#,VZV21 COWL WIRE,NO.4 |
1 | ||
| 82345-20040 |
CV20,SV2#,VZV21..LHD FLOOR,NO,2 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-32050 |
CV20,SV2#..WG |
1 | ||
| 82817-32050 |
CV20,SV20,21..WG |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
ILLUST NO. 4 OF 5(8610- )
REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-20010 |
CV20,SV2# |
1 | ||
| 82981-20010 |
CV20,SV2#,VZV21 |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-22050 |
CV20,SV2#,VZV21 |
1 | ||
| 82982-22050 |
CV20,SV2# |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-32010 |
CV20,SV2# |
1 | ||
| 82983-32010 |
CV20,SV2#,VZV21 |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
CV20,SV2# |
1 | ||
| 82984-20010 |
CV20,SV2#,VZV21 |
1 | ||
| 82985 - WIRE, SIDE TURN SIGNAL LAMP REPAIR | ||||
| 82985-20010 |
CV20,SV2# |
1 | ||
| 82985-20010 |
CV20,SV2#,VZV21 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20050 |
CV20 NO.2 |
1 | ||
| 82991-20010 |
CV20 NO.1 |
1 | ||
| 82991-20010 |
CV20 NO.1 |
1 | ||
| 82991-32060 |
CV20 NO.3 |
1 | ||
| 82991-20050 |
CV20,SV2# NO.2 |
1 | ||
| 82991-32060 |
CV20 NO.3 |
1 | ||
| Common parts | ||||
| 82981-20010 | ||||
| 82982-22050 | ||||
| 82983-32010 | ||||
| 82984-20010 | ||||
| 82985-20010 | ||||
| 82991-20010 | ||||
ILLUST NO. 4 OF 5(8610- )
REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20050 |
CV20 NO.2 |
1 | ||
| 82991-20010 |
CV20 NO.1 |
1 | ||
| 82991-20010 |
CV20 NO.1 |
1 | ||
| 82991-32060 |
CV20 NO.3 |
1 | ||
| 82991-20050 |
CV20,SV2# NO.2 |
1 | ||
| 82991-32060 |
CV20 NO.3 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20050 |
CV20 NO.2 |
1 | ||
| 82991-20010 |
CV20 NO.1 |
1 | ||
| 82991-20010 |
CV20 NO.1 |
1 | ||
| 82991-32060 |
CV20 NO.3 |
1 | ||
| 82991-20050 |
CV20,SV2# NO.2 |
1 | ||
| 82991-32060 |
CV20 NO.3 |
1 | ||
| Common parts | ||||
| 82911-20050 | ||||
| 82991-32060 | ||||
ILLUST NO. 5 OF 5(8610- )
DIODE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-20040 |
CV20,SV2# COWL WIRE,NO.2 |
2 | ||
| 82345-20060 |
CV20,SV2# COWL WIRE,NO.4 |
1 | ||
| 82345-20040 |
CV20,SV2#,VZV21..LHD COWL WIRE,NO.2 |
1 | ||
| 82345-20060 |
CV20,SV2#,VZV21 COWL WIRE,NO.4 |
1 | ||
| 82345-20040 |
CV20,SV2#,VZV21..LHD FLOOR,NO,2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
CV20,SV2# COWL WIRE,NO.2 |
2 | ||
| 82345-20060 |
CV20,SV2# COWL WIRE,NO.4 |
1 | ||
| 82345-20040 |
CV20,SV2#,VZV21..LHD COWL WIRE,NO.2 |
1 | ||
| 82345-20060 |
CV20,SV2#,VZV21 COWL WIRE,NO.4 |
1 | ||
| 82345-20040 |
CV20,SV2#,VZV21..LHD FLOOR,NO,2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
CV20,SV2# COWL WIRE,NO.2 |
2 | ||
| 82345-20060 |
CV20,SV2# COWL WIRE,NO.4 |
1 | ||
| 82345-20040 |
CV20,SV2#,VZV21..LHD COWL WIRE,NO.2 |
1 | ||
| 82345-20060 |
CV20,SV2#,VZV21 COWL WIRE,NO.4 |
1 | ||
| 82345-20040 |
CV20,SV2#,VZV21..LHD FLOOR,NO,2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
CV20,SV2# COWL WIRE,NO.2 |
2 | ||
| 82345-20060 |
CV20,SV2# COWL WIRE,NO.4 |
1 | ||
| 82345-20040 |
CV20,SV2#,VZV21..LHD COWL WIRE,NO.2 |
1 | ||
| 82345-20060 |
CV20,SV2#,VZV21 COWL WIRE,NO.4 |
1 | ||
| 82345-20040 |
CV20,SV2#,VZV21..LHD FLOOR,NO,2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
CV20,SV2# COWL WIRE,NO.2 |
2 | ||
| 82345-20060 |
CV20,SV2# COWL WIRE,NO.4 |
1 | ||
| 82345-20040 |
CV20,SV2#,VZV21..LHD COWL WIRE,NO.2 |
1 | ||
| 82345-20060 |
CV20,SV2#,VZV21 COWL WIRE,NO.4 |
1 | ||
| 82345-20040 |
CV20,SV2#,VZV21..LHD FLOOR,NO,2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
CV20,SV2# COWL WIRE,NO.2 |
2 | ||
| 82345-20060 |
CV20,SV2# COWL WIRE,NO.4 |
1 | ||
| 82345-20040 |
CV20,SV2#,VZV21..LHD COWL WIRE,NO.2 |
1 | ||
| 82345-20060 |
CV20,SV2#,VZV21 COWL WIRE,NO.4 |
1 | ||
| 82345-20040 |
CV20,SV2#,VZV21..LHD FLOOR,NO,2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
CV20,SV2# COWL WIRE,NO.2 |
2 | ||
| 82345-20060 |
CV20,SV2# COWL WIRE,NO.4 |
1 | ||
| 82345-20040 |
CV20,SV2#,VZV21..LHD COWL WIRE,NO.2 |
1 | ||
| 82345-20060 |
CV20,SV2#,VZV21 COWL WIRE,NO.4 |
1 | ||
| 82345-20040 |
CV20,SV2#,VZV21..LHD FLOOR,NO,2 |
1 | ||
| Common parts | ||||
| 82345-12050 | ||||
| 82345-20040 | ||||
| 82345-20050 | ||||
| 82345-20060 | ||||
| 82345-22051 | ||||
| 82345-32010 | ||||
| 82345-32020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
