CV20L-UEMNXW (1988)

Toyota Camry

Production Aug 1988 - Jun 1991
Engine 2CT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

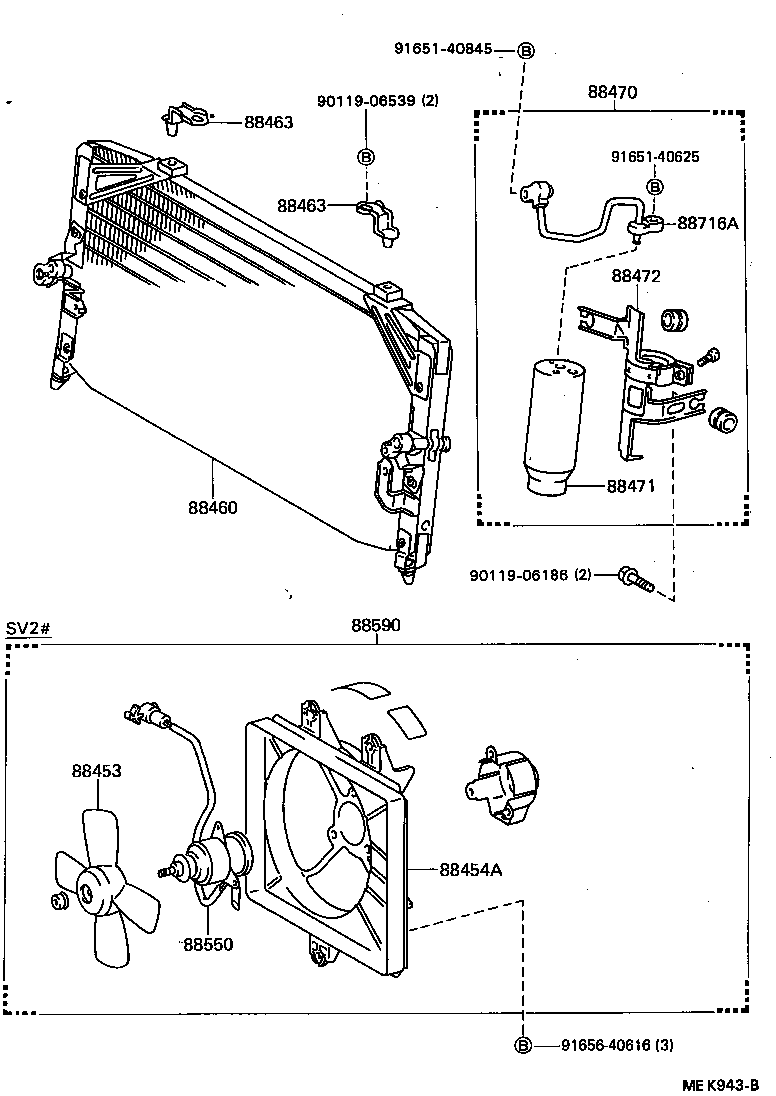

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 88453 88454A 88460 88463 88463 88470 88471 88472 88550 88590 88716A 9011906186 9011906539 9165140625 9165140845 9165640616
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-32090

CV20,SV2#,VZV21

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-32021

SV21..WG;SV21..SED..5F;CV20,SV25,VZV21;SV21..SED..LHD..4FC

 2
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-32021

SV21..WG;SV21..SED..5F;CV20,SV25,VZV21;SV21..SED..LHD..4FC

 2
88470 - RECEIVER & DRYER ASSY, COOLER
88470-32010

CV20,SV2#,VZV21

 1
88470-32020

CV20,SV2#,VZV21

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-10030

SV21..WG;SV21..SED..5F;CV20,SV25,VZV21;SV21..SED..LHD..4FC

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-32020

SV21..WG;SV21..SED..5F;CV20,SV25,VZV21;SV21..SED..LHD..4FC

 1
88473-32030

SV21..WG;SV21..SED..5F;CV20,SV25,VZV21;SV21..SED..LHD..4FC

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-32230

SV21..WG;SV21..SED..5F;CV20,SV25,VZV21;SV21..SED..LHD..4FC

 1
Common parts
90119-06186
90119-06539
91651-40625
91651-40845
91656-40616

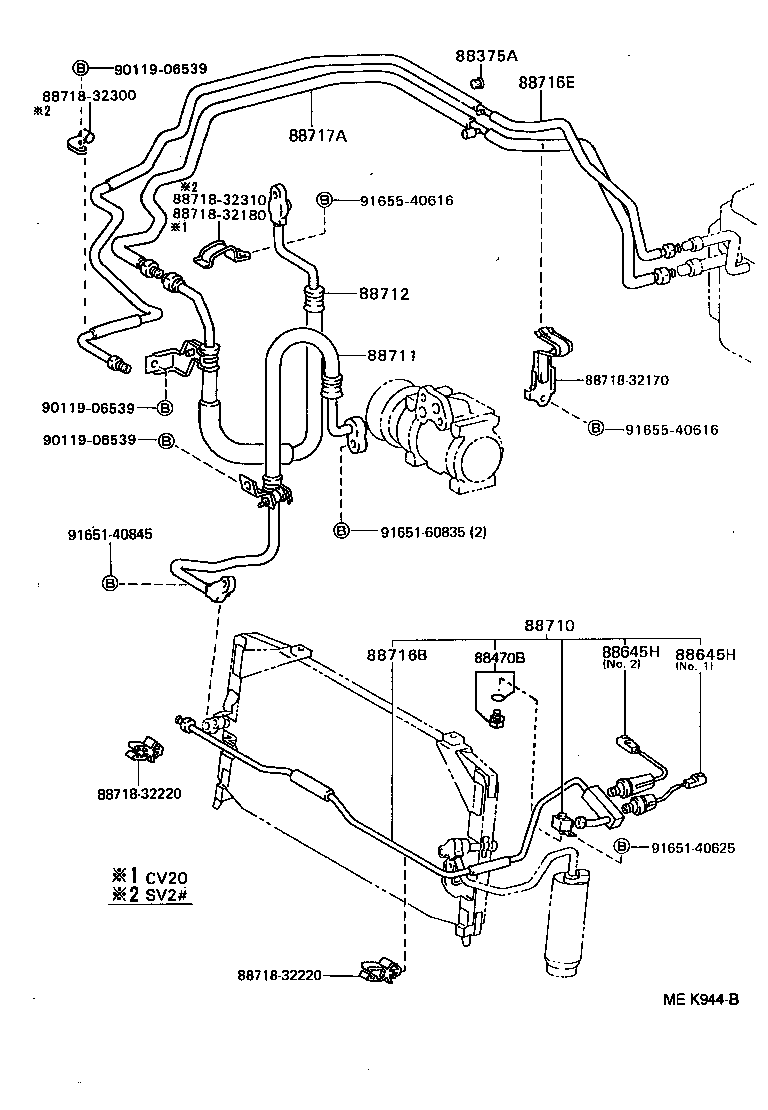

ILLUST NO. 2 OF 2(8808- )CV20,SV2#..LHD

Click highlighted areas on diagram

diagram 88375A 88470B 88645H 88645H 88710 88711 88712 88716B 88716E 88717A 8871832170 8871832180 8871832220 8871832220 8871832300 8871832310 9011906539 9011906539 9011906539 9165140625 9165140845 9165160835 9165540616 9165540616
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-20010

CV20,SV2#,VZV21

 1
88470B - BOLT, FUSE
88475-12020

CV20,SV2#,VZV21

 1
88645H - SWITCH, PRESSURE NO.1
88645-32050

SV2#..LHD;CV20,VZV21

NO.2

 1
88645-32040

SV2#..LHD;CV20,VZV21

NO.1

 1
88645H - SWITCH, PRESSURE NO.1
88645-32050

SV2#..LHD;CV20,VZV21

NO.2

 1
88645-32040

SV2#..LHD;CV20,VZV21

NO.1

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-32060

CV20,SV2#,VZV21..LHD

 1
88710-32080

CV20,SV2#,VZV21..LHD

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-32060

SV21..WG;CV20,SV25;SV21..SED..5F;SV21..SED..LHD..4FC

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-32110

CV20..LHD

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-32350

CV20,SV2#,VZV21..LHD

 1
88716-32340

CV20,SV2#,VZV21..LHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-32221

CV20..LHD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-32160

CV20..LHD

 1
Common parts
88718-32170
88718-32180
88718-32220
88718-32300
88718-32310
90119-06539
91651-40625
91651-40845
91651-60835
91655-40616
