CV20L-UEMNXW (1986)
Toyota Camry
Production
Oct 1986
-
Aug 1988
Engine
2CT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8610- )

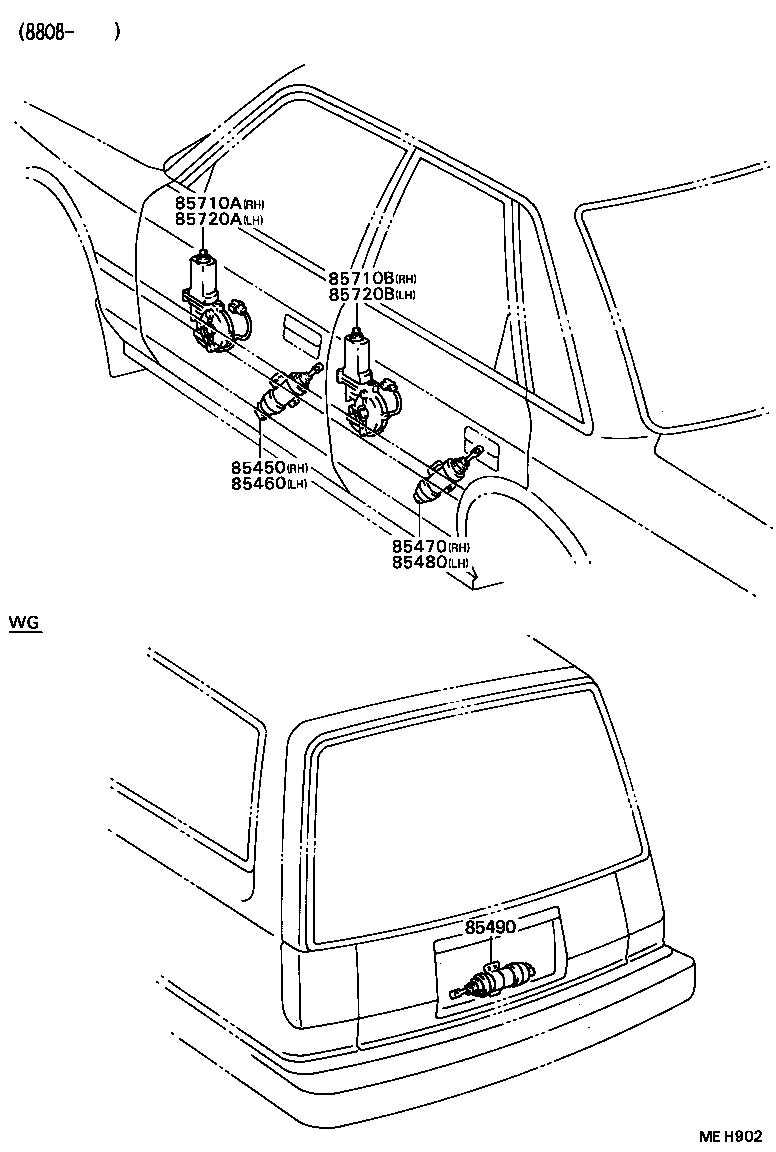

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85450 - SOLENOID ASSY, DOOR CONTROL, FRONT RH | ||||
| 85450-17010 |
CV20,SV21..GL,GLI |
1 | ||
| 85450-17010 |
CV20,SV21,25..GL,GLI |
1 | ||
| 85460 - SOLENOID ASSY, DOOR CONTROL, FRONT LH | ||||
| 85450-17020 |
CV20,SV21..GL,GLI |
1 | ||
| 85450-17020 |
CV20,SV21,25..GL,GLI |
1 | ||
| 85470 - SOLENOID ASSY, DOOR CONTROL, REAR RH | ||||
| 85450-30530 |
CV20,SV21..GL,GLI |
1 | ||
| 85450-30530 |
CV20,SV21,25..GL,GLI |
1 | ||
| 85480 - SOLENOID ASSY, DOOR CONTROL, REAR LH | ||||
| 85450-30540 |
CV20,SV21..GL,GLI |
1 | ||
| 85450-30540 |
CV20,SV21,25..GL,GLI |
1 | ||
| 85710A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH | ||||
| 85710-32040 |
CV20,SV21,25..GL,GLI |
1 | ||
| 85710-32040 |
CV20,SV21..GL,GLI |
1 | ||
| 85710B - MOTOR ASSY, POWER WINDOW REGULATOR, REAR RH | ||||
| 85710-32050 |
CV20,SV21,25..GL,GLI |
1 | ||
| 85710-32050 |
CV20,SV21..GL,GLI |
1 | ||
| 85720A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH | ||||
| 85720-32040 |
CV20,SV21..GL,GLI |
1 | ||
| 85720-32040 |
CV20,SV21,25..GL,GLI |
1 | ||
| 85720B - MOTOR ASSY, POWER WINDOW REGULATOR, REAR LH | ||||
| 85720-32050 |
CV20,SV21,25..GL,GLI |
1 | ||
| 85720-32050 |
CV20,SV21..GL,GLI |
1 | ||
