CV20L-UEMNXW (1986)

Toyota Camry

Production Oct 1986 - Aug 1988
Engine 2CT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8610- )2CT

Click highlighted areas on diagram

diagram 17111 17118 17141 17141G 17159 17159 17167 17168 17173 17177 9011908108 9011908553 9011908553 9011910106 9011910321 9017908040 9017910028 9161160820
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-64090

2CT..CV20

 1
17118 - STAY, MANIFOLD
17118-64020

2CT..CV20

 1
17141 - MANIFOLD, EXHAUST
17141-64031

2CT..CV20

 1
17141G - BOLT, STUD(FOR TURBOCHARGER)
90116-10054

2CT..CV20

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60820

2CT..CV20

INTAKE MANIFOLD

 2
92122-60820

2CT..CV20

INTAKE MANIFOLD

 2
90116-10095

2CT..CV20

EXHAUST MANIFOLD

 2
90116-10095

2CT..CV20

EXHAUST MANIFOLD

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60820

2CT..CV20

INTAKE MANIFOLD

 2
92122-60820

2CT..CV20

INTAKE MANIFOLD

 2
90116-10095

2CT..CV20

EXHAUST MANIFOLD

 2
90116-10095

2CT..CV20

EXHAUST MANIFOLD

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-64031

2CT..CV20

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-64021

2CT..CV20

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-64050

2CT..CV20

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-64010

2CT..CV20

 1
Common parts
90119-08108
90119-08553
90119-10106
90119-10321
90179-08040
90179-10028
91611-60820

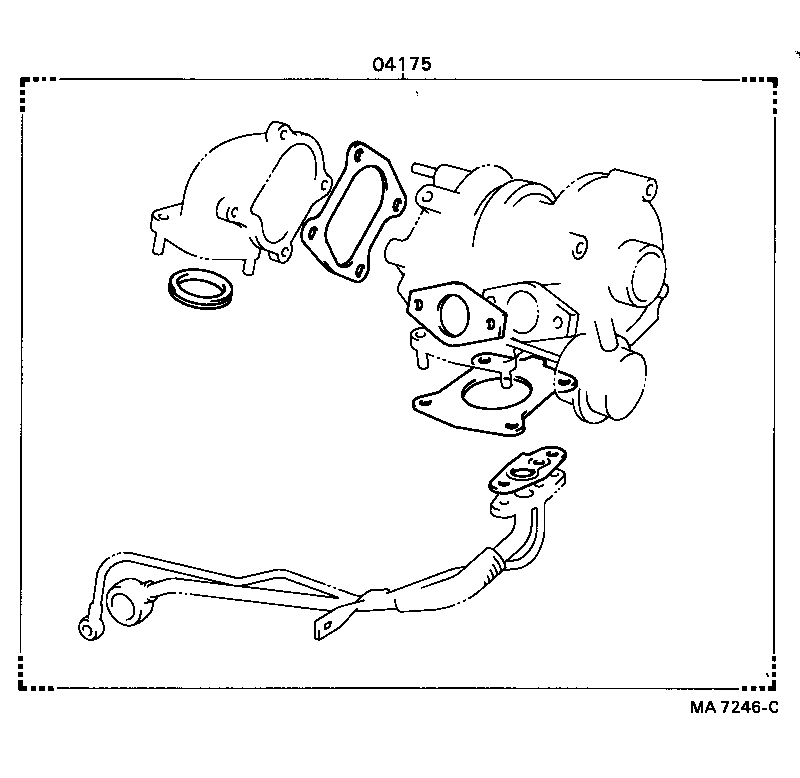

ILLUST NO. 3 OF 3(8610- )2CT

Click highlighted areas on diagram

diagram 04175
Part # Description Qty Price
04175 - GASKET KIT, TURBOCHARGER
04175-64022

2CT..CV20

 1
04175-64021

2CT..CV20

 1

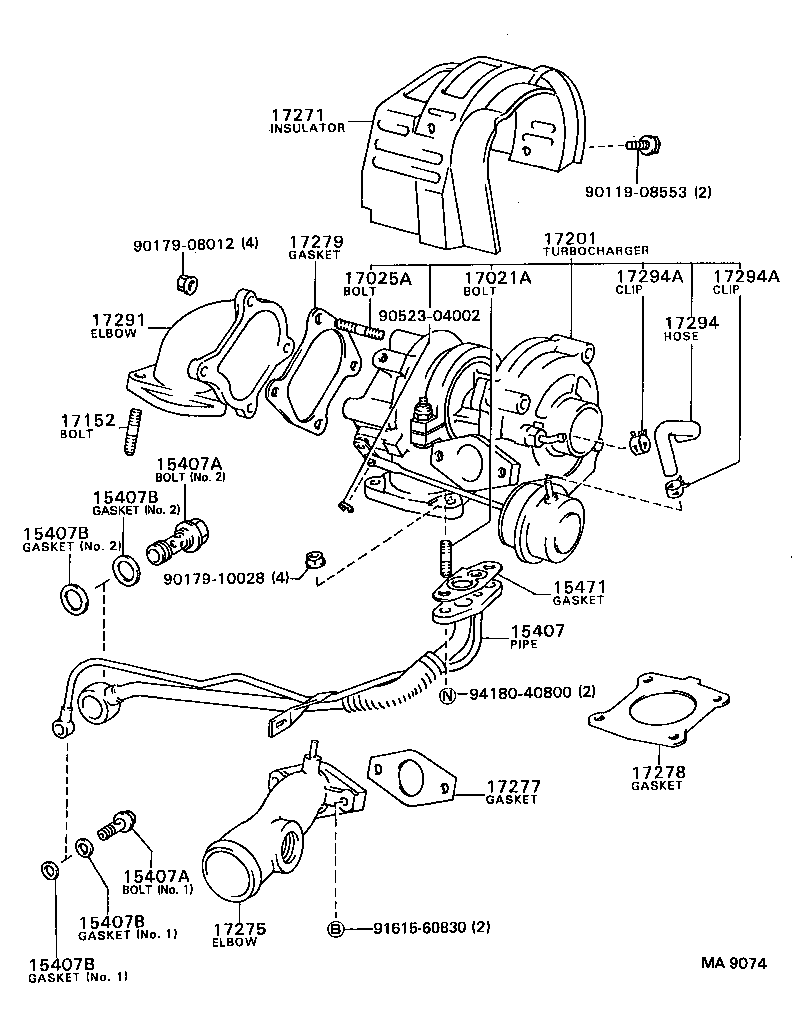

ILLUST NO. 2 OF 3(8610- )2CT

Click highlighted areas on diagram

diagram 15407 15407A 15407A 15407B 15407B 15407B 15407B 15471 17021A 17025A 17152 17201 17271 17275 17277 17278 17279 17291 17294 17294A 17294A 9011908553 9017908012 9017910028 9052304002 9161560830 9418040800
Part # Description Qty Price
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-64011

2CT..CV20

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-27002

2CT..CV20

NO.2

 1
90401-10006

2CT..CV20

NO.1

 1
90401-10006

2CT..CV20

NO.1

 1
90401-27002

2CT..CV20

NO.2

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-27002

2CT..CV20

NO.2

 1
90401-10006

2CT..CV20

NO.1

 1
90401-10006

2CT..CV20

NO.1

 1
90401-27002

2CT..CV20

NO.2

 1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90210-27001

2CT..CV20

NO.2

 2
90210-27001

2CT..CV20

NO.2

 2
90430-10035

2CT..CV20

NO.1

 2
90430-10035

2CT..CV20

NO.1

 2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90210-27001

2CT..CV20

NO.2

 2
90210-27001

2CT..CV20

NO.2

 2
90430-10035

2CT..CV20

NO.1

 2
90430-10035

2CT..CV20

NO.1

 2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90210-27001

2CT..CV20

NO.2

 2
90210-27001

2CT..CV20

NO.2

 2
90430-10035

2CT..CV20

NO.1

 2
90430-10035

2CT..CV20

NO.1

 2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90210-27001

2CT..CV20

NO.2

 2
90210-27001

2CT..CV20

NO.2

 2
90430-10035

2CT..CV20

NO.1

 2
90430-10035

2CT..CV20

NO.1

 2
15471 - GASKET, TURBO OIL INLET
15471-54010

2CT..CV20

 1
17021A - BOLT, STUD(FOR BEARING HOUSING)
90116-08158

2CT..CV20

 2
17025A - BOLT, STUD(FOR TURBINE HOUSING)
90116-08200

2CT..CV20

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

2CT..CV20

 3
17201 - TURBOCHARGER SUB-ASSY
17201-64020

2CT..CV20

 1
17271 - INSULATOR, TURBO, NO.1
17271-64030

2CT..CV20

 1
17275 - ELBOW, COMPRESSOR OUTLET
17275-64040

2CT..CV20

 1
17277 - GASKET, COMPRESSOR OUTLET
17277-54010

2CT..CV20

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-64010

2CT..CV20

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-64010

2CT..CV20

 1
17291 - ELBOW, TURBINE OUTLET
17291-64030

2CT..CV20

 1
17294 - HOSE, ACTUATOR
17294-28010

2CT..CV20

 1
17294A - CLIP(FOR ACTUATOR HOSE)
96132-30600

2CT..CV20

 2
17294A - CLIP(FOR ACTUATOR HOSE)
96132-30600

2CT..CV20

 2
Common parts
90119-08553
90179-08012
90179-10028
90523-04002
91615-60830
94180-40800
