CV20L-UEMDXW (1988)

Toyota Camry

Production Aug 1988 - Jun 1991
Engine 2CT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )2CT

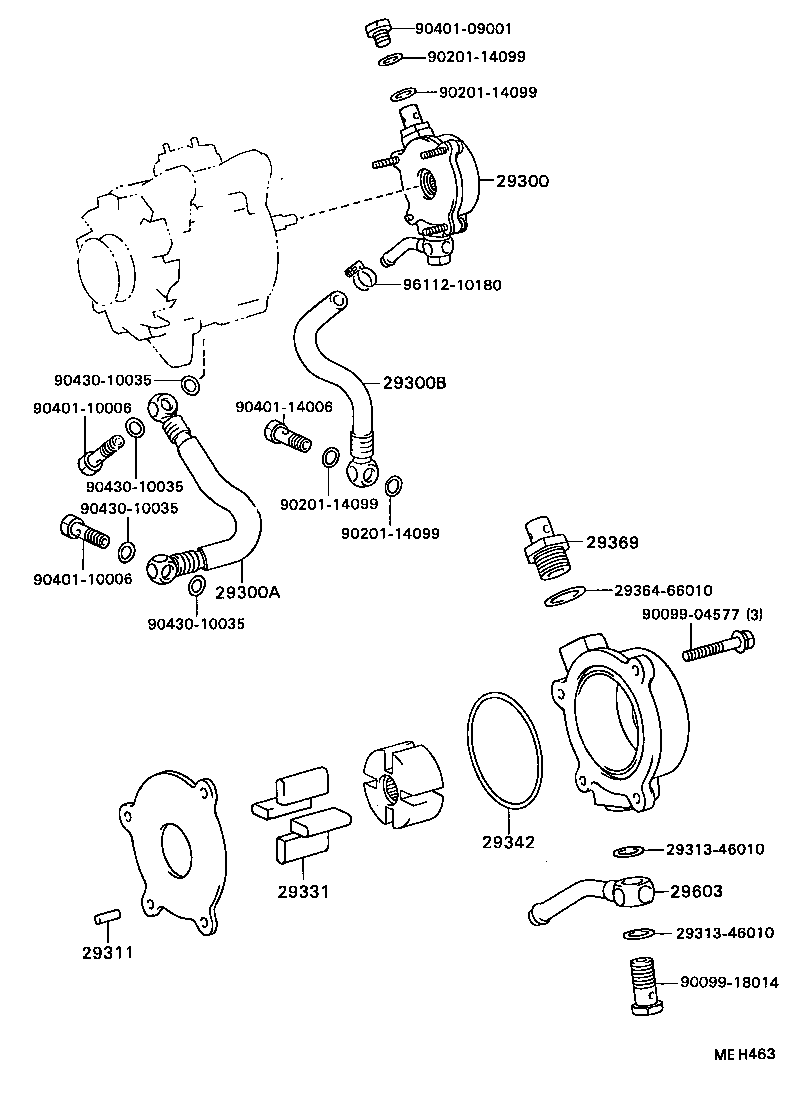

Click highlighted areas on diagram

diagram 29300 29300A 29300B 29311 2931346010 2931346010 29331 29342 2936466010 29369 29603 9009904577 9009918014 9020114099 9020114099 9020114099 9020114099 9040109001 9040110006 9040110006 9040114006 9043010035 9043010035 9043010035 9043010035 9611210180
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-64040

2CT..CV20

 1
29300-64041

2CT..CV20

 1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02106

2CT..CV20

 1
29300B - HOSE, VACUUM PUMP OIL OUTLET
90923-02104

2CT..CV20

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

2CT..CV20

 1
29331 - BLADE, VACUUM PUMP, A
29331-56070

2CT..CV20

 4
29342 - PACKING, VACUUM PUMP
96740-02063

2CT..CV20

 1
29369 - VALVE SUB-ASSY, CHECK
29369-56070

2CT..CV20

 1
29603 - PIPE, VACUUM PUMP OIL OUTLET
29365-64040

2CT..CV20

 1
Common parts
29313-46010
29364-66010
90099-04577
90099-18014
90201-14099
90401-09001
90401-10006
90401-14006
90430-10035
96112-10180
